Kwikset - Smart Code 915TRL- Electronic Traditional Deadbolt - US11P - Venetian Bronze

KWS-915TRL-US11P

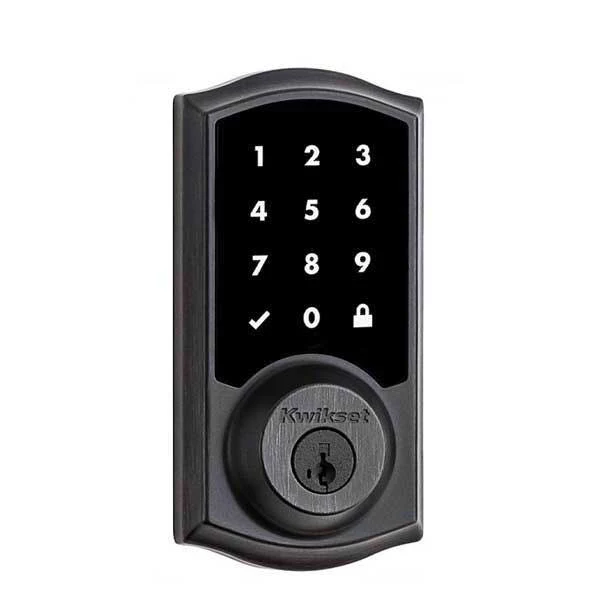

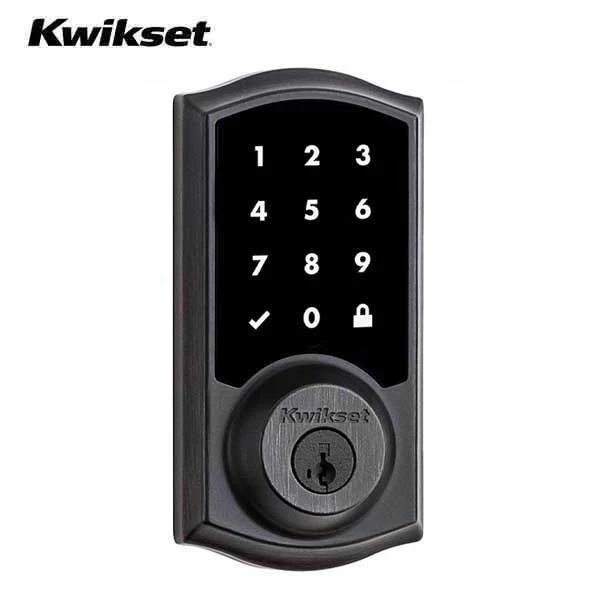

The SmartCode keypad smart lock The advanced Capacitive touchscreen is ultra responsive to touch for instant screen display and features cool white LEDs for defined illumination Bright white LED’s for clear visibility in the brightest sunlight Secured keyless entry convenience One touch locking

Features

• SmartKey Security, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds
• For use on exterior doors where keyed entry and security is needed
• SmartKey Security re-key technology is compatible with Kwikset (KW1) keyway
• Deadbolt operated by electronic keypad or key from outside and thumb turn inside
• Comes with 2 keys
• Latch is 20-minute fire rated with round corner face
• ANSI/BHMA grade 2 certified
• Latch has adjustable backset 2-3/8 in. to 2-3/4 in. to fit all standard door preparations
• Includes round deadbolt strike
• 1 in. deadbolt throw

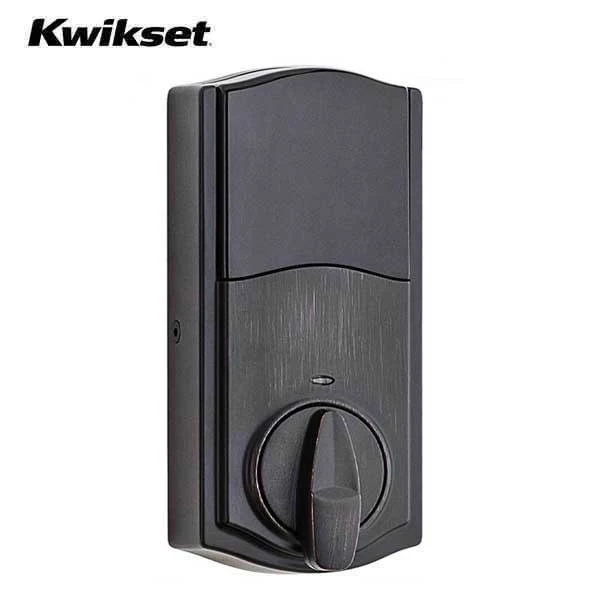

• Locking mechanism functions with turn piece on the interior of the lock
• Meets or exceeds Underwriter Laboratories (UL) testing requirements specified for each product grade or rating
• Keypad stays lit for 30 seconds after inactivity
• This single cylinder deadbolt can be locked or unlocked by a key on the outside, or the turn piece on the inside



Specifications

Certifications	Grade 2
Door Prep	2 1 ⁄8" diameter face hole & 1" diameter latch hole
Backset	Adjustable 2 3⁄8" or 2 3⁄4"
Door Thickness	1 3⁄8" – 2" automatic adjustment
Faceplates	1" x 2 1⁄4" round corner standard
Strikes	Round corner strike 2 3⁄4" x 2 1⁄8"
Faceplate	Flat - Measures 1" x 6-7/8" [25.4 mm x 174.6 mm].
Latch	Round corner adjustable 2 3⁄8" x 2 3⁄4"
Bolt	1" throw, steel deadbolt
Door Handing	Reversible
Cylinder	SmartKey Security™
Temperature Range	Exterior: -40°F to 150°F Interior: 32°F to 140°F
Humidity	Exterior: 100% condensing Interior: 99% non-condensing
