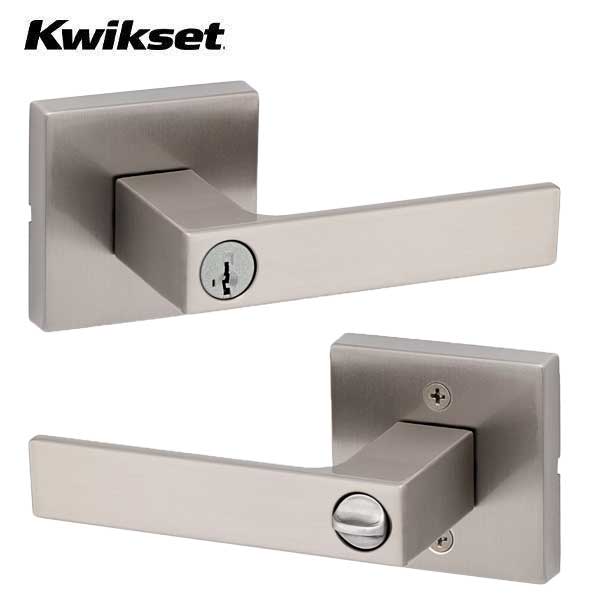

Kwikset - Halifax Lever Set - Square Rose - Optional Finish - Optional Function - SC1 - SmartKey Technology - Grade 2

KWS-HFL-SQT-SMC

Step up to designer styles and superior security with Kwikset Signature Series products. Halifax combines sophistication and simplicity, making this design the ideal accent for a contemporary home. Both knobs/levers can be locked or unlocked by a key on the outside, or push button on the inside.

• Designer style and superior security with this Kwikset Signature series product
• For use on exterior doors where keyed entry and security is needed
• Featuring SmartKey security, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds
• SmartKey Security re-key technology is compatible with Kwikset (KW1) keyway
• Comes with 2 keys
• Latch has 2 interchangeable faceplates, round corner and square corner
• Meets ADA/ANSI A117.1 requirements, ensuring accessibility to all disabled persons
• ANSI/BHMA grade 2 certified
• Latch has adjustable backset 2-3/8 in. to 2-3/4 in. to fit all standard door preparations
• Locking mechanism functions by pressing the push button on the interior of the lock
• Fully reversible lever, can be installed on both right handed and left handed doors
• Easily installs in minutes with just a screwdriver
• Lifetime mechanical and finish warranty



Specifications

Door Prep	Cross Bore 2-1 ⁄8” or 1 1 ⁄2”. Edge Bore 1”
Backset	Adjustable 2 3⁄8" or 2 3⁄4"
Door Thickness	1 3⁄8" - 1 3⁄4” Doors standard
Cylinder	Schlage SmartKey Cylinder w/ 2 Schlage SC1 Keys
Faceplates	1" x 2 1 ⁄4" Specify round corner, square corner or drive-in
Strikes	1 1 ⁄8” - 2 3⁄4” Square or round corner
ADA	Satisfy section 4.13.9 ADA requirement
UL	20 minute UL fire rating available
Door Handing	Reversible for right or left hand doors
ANSI/ BHMA	A156.2 Grade 2
Warranty	Lifetime Mechanical and Lifetime Finish

Downloads

• Installation Guide
• Sell Sheet
