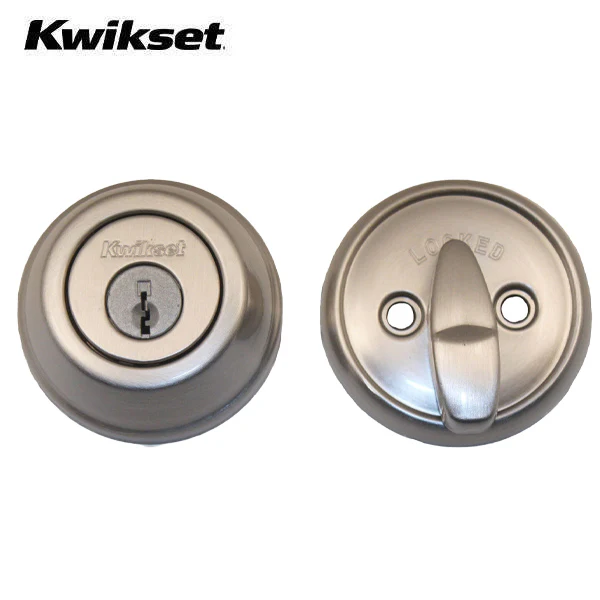

Kwikset - 780 - Residential Deadbolt - Single Cylinder - 15 - Satin Nickel - Grade 2

Step up to designer styles and superior security with Kwikset Signature Series products. The 780 Deadbolt series has various finishes and certified BHMA/ANSI Grade 2 security. This single-cylinder deadbolt can be locked or unlocked by a key on the outside, or the turn piece on the inside. The crisp, clean appearance of the Polished Brass finish adds to the overall look of the product and brings a modern feel.

Specifications:

Door Prep	780, 785: Crossbore 2-1/8” or 1-1/2”. Edge Bore 1”. Latch Face 1” x 2-1/4” 782, 784: Crossbore 2-1/8”. Edge Bore 1”.Latch Face 1” x 2-1/4”
Backset	Adjustable to 2-3/8” or 2-3/4” standard.
Door Thickness	1-3/8” – 1-3/4” standard
Cylinder	6-pin removable core
Faceplates	1” x 2-1/4”
Strikes	1-1/4” x 3-5/8”. Specify round corner or square corner.
Bolt	1” throw
Door Handing	Reversible for right or left-hand doors
ANSI / BHMA	Grade 2 Certified
ADA	Interior turn piece meets 4.13.9 ADA requirements.
UL	Meets UL 3 hour fire rating for 782 and 784.



Downloads

• Spec Sheet
• Installation Guide
