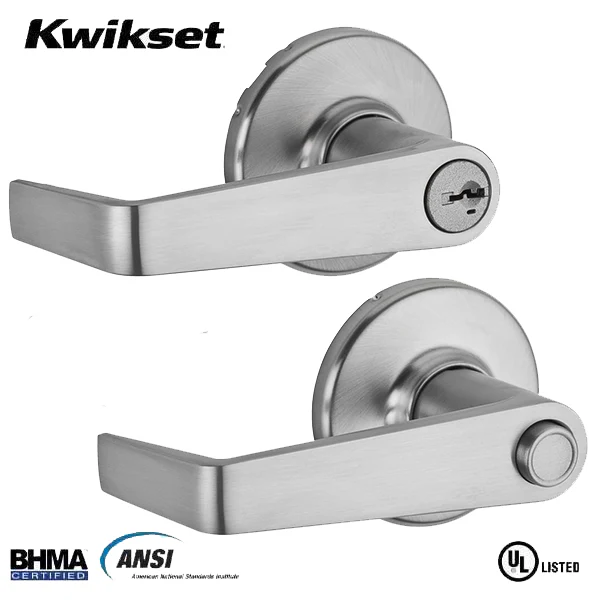

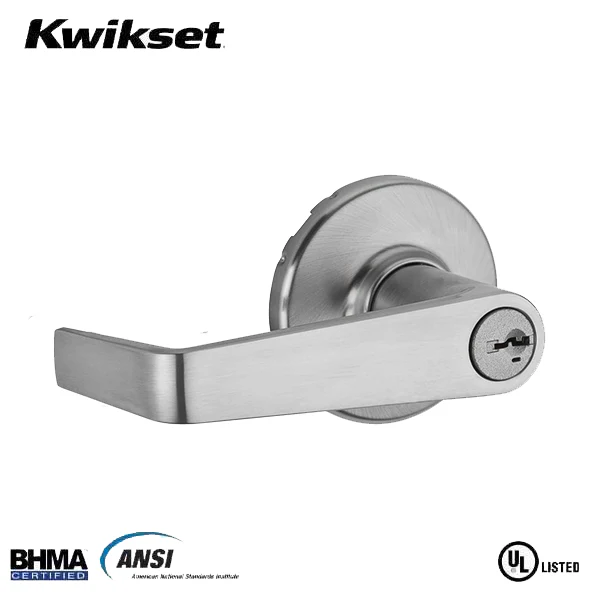

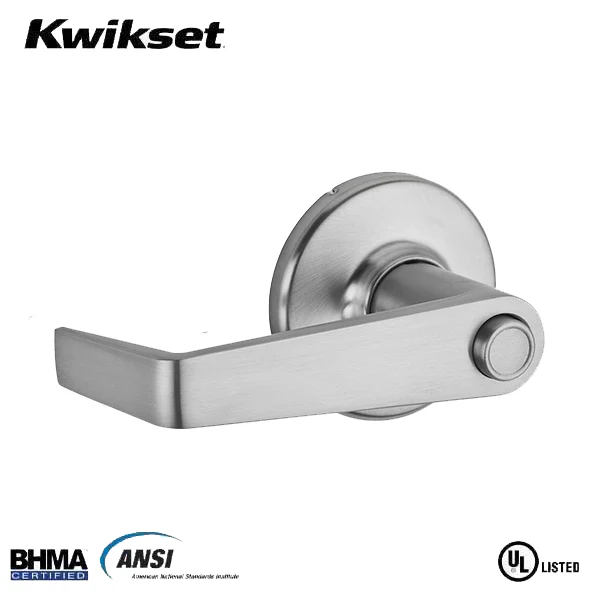

Kwikset - 756KNL - Kingston Commercial Lever Set - Round Rose - 26D - Satin Chrome - Entrance - Smart Key Technology - Grade 2

Step up to designer styles and superior security with Kwikset Signature Series products. A clean, streamlined design on the Kingston fits a wide range of decorating styles from traditional and ranch to contemporary. Both knobs/levers can be locked or unlocked by a key on the outside or a push button on the inside. The Satin Chrome finish gives the product a modern and minimalist look.

• For use on exterior doors where keyed entry and security are needed
• Featuring SmartKey Security, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds.
• SmartKey Security re-key technology is compatible with Kwikset (KW1) keyway or (SC1) keyway options
• Comes with 2 keys. Latch is a 20-minute fire-rated latch with a round corner face
• Meets ADA/ANSI A117.1 requirements, ensuring accessibility to all disabled persons, ANSI/BHMA grade 2 certified
• Latch has an adjustable backset of 2-3/8" to 2-3/4" to fit all standard door preparations
• The locking mechanism functions by pressing the push button on the interior of the lock. Meets or exceeds Underwriter Laboratories (UL) testing requirements specified for each product grade or rating
• Fully reversible lever, can be installed on both right-handed and left-handed doors
• Easily installs in minutes with just a screwdriver
• Warranty: Lifetime Mechanical, 5 Year Finish



Function	Entrance
Finish	26D - Satin Chrome
Door Prep	Cross Bore 2-1/8". Edge bore 1"
Backset	Adjustable 2-3/8" or 2-3/4"
Door Thickness	1-3/8" - 1-3/4" Doors standard
Cylinder	SmartKey Security
Latch	Adjustable 2-3/8" or 2-3/4"
Strikes	2-1/4" Full lip
Bolt	1/2" Throw
Door Handing	Reversible for both Left and Right-handed doors
ADA	Lever functions satisfy 4.13.9 ADA requirements
UL	Meets UL 3-hour fire rating for all functions

Downloads

• Installation Guide
