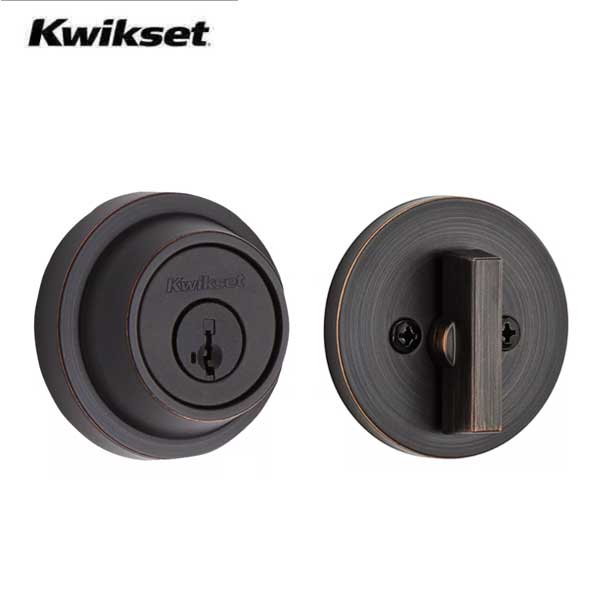

Kwikset - 660 - Residential Deadbolt - Single Cylinder - Optional Rose - Optional Finish - SmartKey Technology - Grade 3

KWS-660-SMT

As the industry leader, Kwikset has provided trusted security for over 60-years and has become synonymous with security, peace of mind, style and innovation. The largest-selling deadbolt in America, the 600 series provides tough, effective protection at an affordable price. This single cylinder deadbolt can be locked or unlocked by a key on the outside or the turn button on the inside.

Features:

• For use on exterior doors where keyed entry and security is needed
• Deadbolt operated by key outside and thumb turn inside
• Comes with 2 keys
• Deadbolt Latch has 2 interchangeable faceplates - round corner and square corner
• ANSI/BHMA grade 3 certified
• Bolt has adjustable backset 2-3/8" to 2-3/4" to fit all standard door preparations
• Includes round deadbolt strike
• 1 inch deadbolt throw
• Locking mechanism functions with turn piece on the interior of the lock
• Easily installs in minutes with just a screwdriver
• Lifetime mechanical and finish warranty



Specifications

Door Prep	Cross Bore 2-1/8". Edge Bore 1".
Latch face	1" x 2 1/4".
Backset	Adjustable to 2 3/8" or 2 3/4" standard.
Door Thickness	1 3/8" - 1 3/4" doors standard.
Cylinder	SmartKey Security
Faceplates	1" x 2 1/4".
Strikes	1" x 2 1/4" full.
Bolt	1" throw.
Door Handing	Reversible for right or left-hand doors.
Grade	ANSI/BHMA A156.2 Grade 3
ADA	Interior turn piece meets 4.13.9 ADA requirements.

Download:

• Installation Guide
• Instructions / Assembly
• Use and Care Manual
• Warranty
