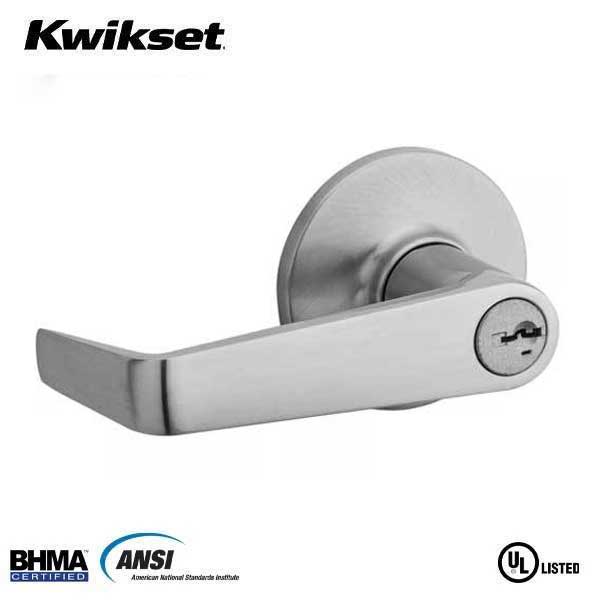

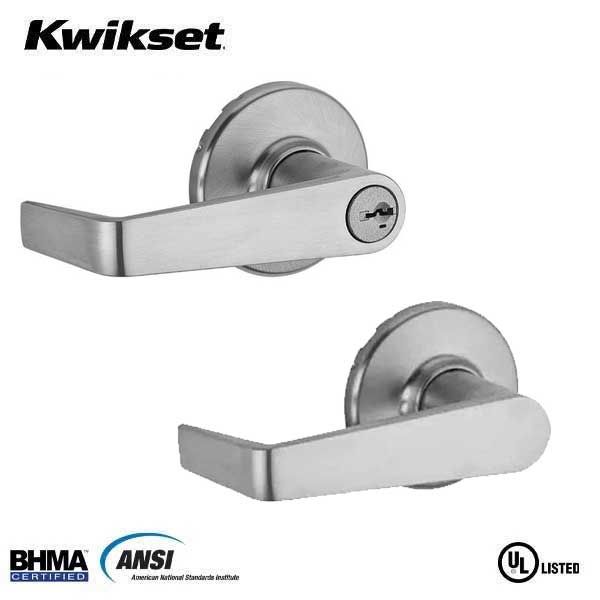

Kwikset - 439CNL - Carson Commercial Lever Set - Round Rose - 26D - Satin Chrome - Storeroom - SC1 Schlage - SmartKey Technology - Grade 3

KWS-439CNL-SMC-UL-26D

A smart solution for both residential and commercial applications, the Carson Lever offers convenient push locking with ANSI/BHMA Grade 3 certified security. Both knobs/levers can be locked or unlocked by a key on the outside, or push button on the inside. The Satin Chrome finish gives the product a modern and minimalist look.

• Featuring SmartKey Security, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds.

• Comes with Schlage SmartKey Cylinder w/ 2 Schlage SC1 Keys

• Latch includes round corner faceplate

• Meets ADA/ANSI A117.1 requirements, ensuring accessibility to all disabled persons

• ANSI/BHMA Grade 3 certified

• Includes adjustable backset to fit all standard door preparations

• Meets or exceeds Underwriter Laboratories (UL) testing requirements specified for each product grade or rating

• Easily installs in minutes with just a screwdriver

• Lifetime mechanical and finish warranty



Specifications

Function	Storeroom
Finish	26D - Satin Chrome
Door Prep	Cross Bore 2-1 ⁄8". Edge bore 1"
Backset	Adjustable 2-3⁄8" or 2-3⁄4"
Door Thickness	1-3⁄8" - 1-3⁄4” Doors standard
Cylinder	Schlage SmartKey Cylinder w/ 2 Schlage SC1 Keys
Latch	Adjustable 2-3⁄8" or 2-3⁄4"
Strikes	2-1 ⁄4” Full lip
Bolt	1 ⁄2” Throw
Door Handing	Reversible for both Left and Right handed doors
ADA	Lever functions satisfy 4.13.9 ADA requirements
UL	Meets UL 3 hour fire rating for all functions
