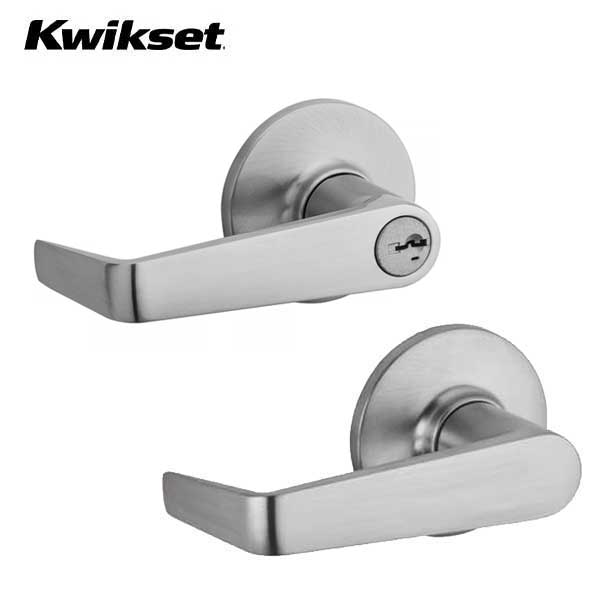

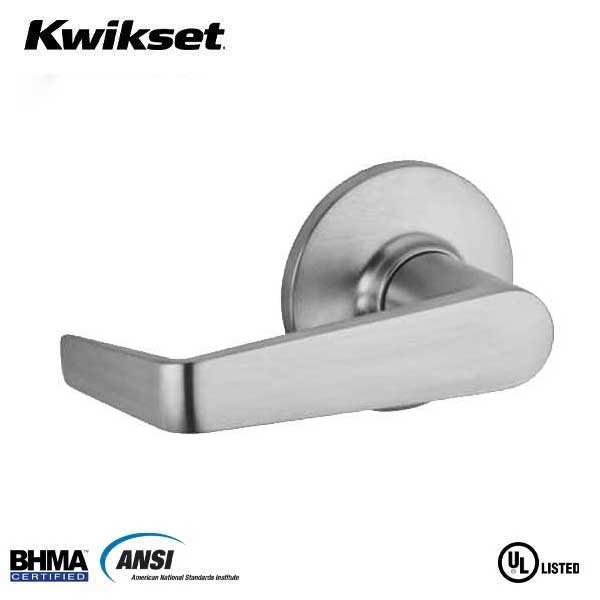

Kwikset - 439CNL - Carson Commercial Lever Set - Round Rose - 26D - Satin Chrome - Storeroom - SmartKey Technology - Grade 3

Please Note: This item does not come with a key, just a code to cut the key.

A smart solution for both residential and commercial applications, the Carson Lever offers convenient push locking with ANSI/BHMA Grade 3 certified security. This Storeroom knob/lever is best used on exterior doors where keyed entry and security are needed. The knob/lever is reversible and mounts on both left and right-handed doors. The crisp, clean appearance of the Satin Chrome finish adds to the overall look of the product and brings a modern feel.

Featuring SmartKey Security, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds. While re-keying your door lock is not a requirement of lock installation, SmartKey allows you to quickly and easily reset your lock's cylinder to work with any KW1 Keyway key.

• SmartKey Security re-key technology is compatible with Kwikset (KW1) keyway or (SC1) keyway options
• For use on exterior doors where keyed entry and security are needed
• Latch is a 20-minute fire-rated latch with a round corner face

• Meets ADA/ANSI A117.1 requirements, ensuring accessibility to all disabled persons

• ANSI/BHMA grade 3 certified

• Latch has an adjustable backset 2-3/8 in. to 2-3/4 in. to fit all standard door preparations

• Meets or exceeds Underwriter Laboratories (UL) testing requirements specified for each product grade or rating

• Fully reversible lever, can be installed on both right-handed and left-handed doors

• Easily installs in minutes with just a screwdriver

• Lifetime mechanical, 5-year finish

• No keys included



Specifications

Door Prep	Cross Bore 2-1/8". Edge bore 1".
Backset	Adjustable 2-3/8" or 2-3/4".
Door Thickness	1-3/8" - 1-3/4" Doors standard.
Latch Adjustable	2-3/8" or 2-3/4".
Strikes	2-1/4" Full lip UL.
Bolt	1/2" Throw
Door Handing	Reversible for right or left-hand doors.
Cylinder	SmartKey Security - No keys included, easily reset your lock's cylinder to work with any KW1 keyway key
ADA	Lever functions satisfy 4.13.9 ADA requirements.
UL	Meets UL 3-hour fire rating for all functions
Warranty	Lifetime Mechanical, 5 Year Finish
