Kwikset - 409DNL - Dorian Commercial Lever Set - Round Rose - 15 - Satin Nickel - Entrance - SmartKey Technology - Grade 3

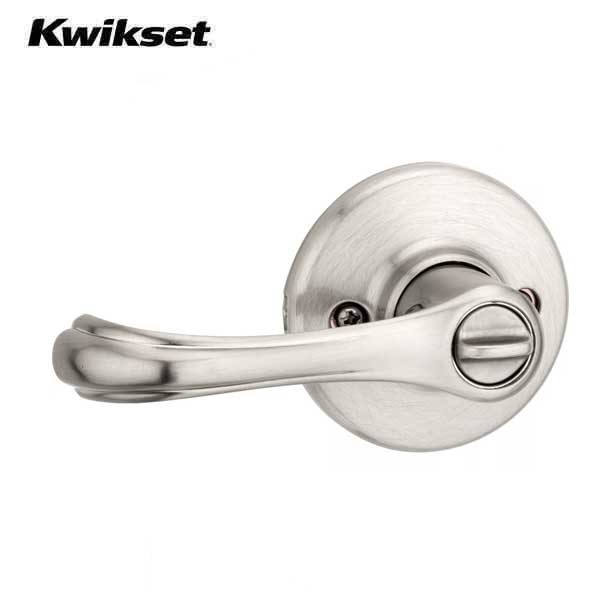

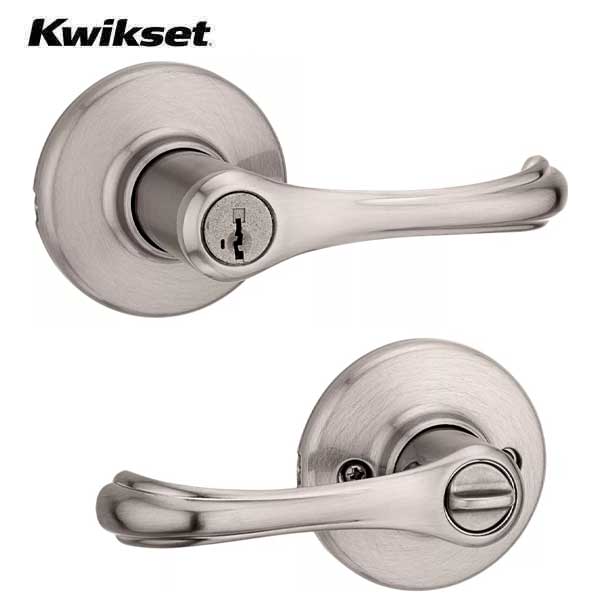

The Dorian Entry Door Lever as the industry leader, Kwikset has provided trusted security for over 70-years and has become synonymous with security, peace of mind, style and innovation. Etched detailing at the tip of the lever lends an air of elegant sophistication to the Dorian lever. Its graceful styling feels right at home in a wide range of decor. Both levers/knobs can be operated by a key on the outside or thumb turn on the inside.
- Featuring SmartKey Security, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds
- Microban protection keeps door hardware 99.9% cleaner than unprotected surfaces
-
SmartKey Security re-key technology is compatible with Kwikset (KW1) keyway
- Comes with 2 keys
- Latch has 3 interchangeable faceplates, round corner, square corner and drive-in collar
- Meets ADA/ANSI A117.1 requirements, ensuring accessibility to all disabled persons
- ANSI/BHMA grade 3 certified
- Latch has adjustable backset 2-3/8 in. to 2-3/4 in. to fit all standard door preparations
- Locking mechanism functions with turn piece on the interior of the lock
- Fully reversible lever, can be installed on both right handed and left handed doors
- Easily installs in minutes with just a screwdriver
- Lifetime mechanical and finish warranty
Specifications
| Door Prep | Cross Bore 2-1⁄8". Edge bore 1". |
| Backset | UL function 2-3⁄4" standard |
| Door Thickness | 1-3⁄8" - 1-3⁄4” Doors standard. |
| Cylinder | SmartKey Security |
| Faceplates | 1" x 2-1⁄4" |
| Strikes | 2-1 ⁄4” |
| Bolt | 1⁄2” Throw |
| Certified | ANSI/BHMA A156.2 Grade 3 (all functions except 488) ADA 200 function satisfies section 4.13.9 ADA requirements. UL Meets 3-hour fire rating for all UL specific functions. |
