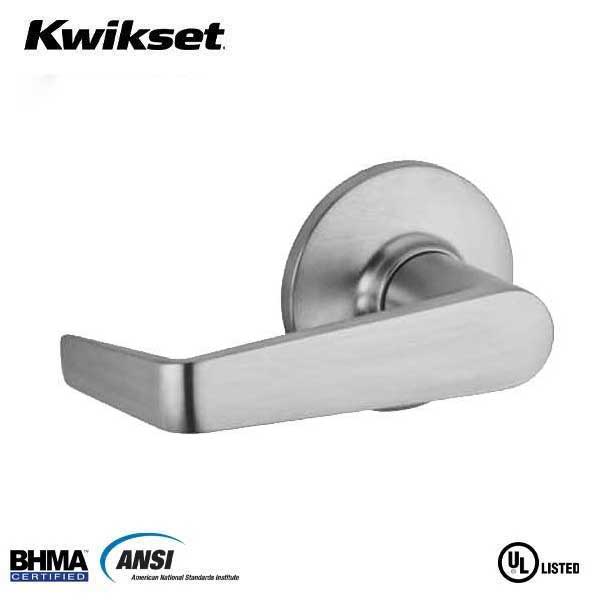

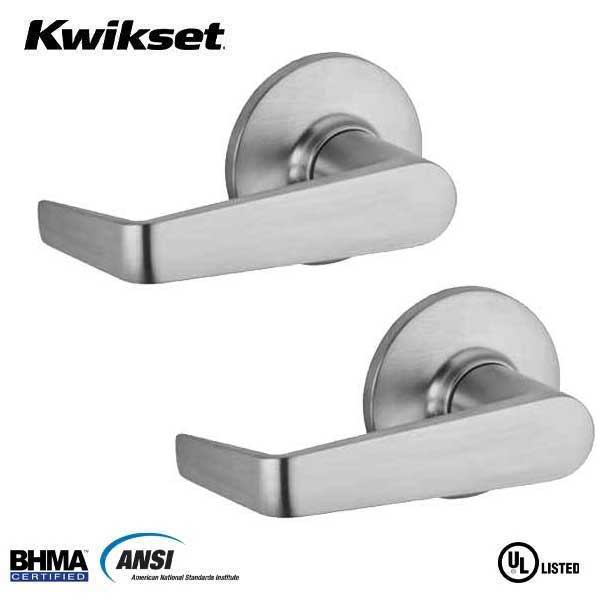

Kwikset - 407CNL - Carson Commercial Lever Set- Round Rose - Passage - 26D - Satin Chrome - Grade 3

A smart solution for both residential and commercial applications, the Carson Lever offers convenient push locking with ANSI/BHMA Grade 3 certified security. This passage knob/lever is best used on interior hall and closet applications where no locking is required. The knob/lever is reversible and mounts on both left and right handed doors. The crisp, clean appearance of the Satin Nickel finish adds to the overall look of the product and brings a modern feel.

• For use on interior doors requiring no locking functionality, such as hallway or closet doors

• Latch is 20-minutes fire rated with round corner face

• Meets ADA/ANSI A117.1 requirements, ensuring accessibility to all disabled persons

• ANSI/BHMA grade 3 certified

• Latch has adjustable backset 2-3/8 in. to 2-3/4 in. to fit all standard door preparations

• Meets or exceeds Underwriter Laboratories (UL) testing requirements specified for each product grade or rating

• Fully reversible lever, can be installed on both right handed and left handed doors

• Easily installs in minutes with just a screwdriver

• Lifetime mechanical, 5-years finish
•


Specifications

Door Prep	Cross Bore 2-1⁄8". Edge bore 1".
Backset	Adjustable 2-3⁄8" or 2-3⁄4".
Door Thickness	1-3⁄8" - 1-3⁄4” Doors standard.
Latch Adjustable	2-3⁄8" or 2-3⁄4".
Strikes	2-1⁄4” Full lip UL.
Bolt	1⁄2” Throw
Door Handing	Reversible for right or left-hand doors.
ADA	Lever functions satisfy 4.13.9 ADA requirements.
UL	Meets UL 3 hour fire rating for all functions
Warranty	Lifetime Mechanical, 5 Year Finish
