Kwikset - 158MIL - Milan Deadbolt - Single Cylinder - Optional Rose - Optional Finish - SmartKey Technology - Grade 2

KWS-158

The Milan Single Cylinder Deadbolt can be locked or unlocked by a key on the outside or the turn button on the inside. For use on exterior doors where keyed entry and security is needed.

Featuring SmartKey Security, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds. SmartKey Security re-key technology is compatible with Kwikset (KW1) keyway or (SC1) keyway options Deadbolt operated by key outside and thumb turn inside

• Designer style and superior security with this Kwikset Signature Series product

• For use on exterior doors where keyed entry and security is needed

• Featuring SmartKey Security, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds.
• SmartKey Security re-key technology is compatible with Kwikset (KW1) keyway or (SC1) keyway options
• Deadbolt operated by key outside and thumb turn inside

• Comes with 2 keys

• Deadbolt Latch has round corner faceplate ANSI/BHMA grade 2 certified

• Latch has adjustable backset 2-3/8" to 2-3/4" to fit all standard door preparations

• Includes round deadbolt strike 1 inch deadbolt throw

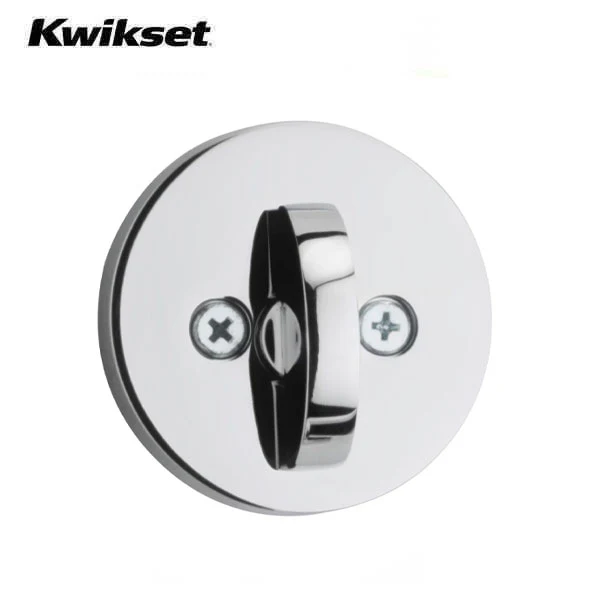

• Locking mechanism functions with turn piece on the interior of the lock

• Easily installs in minutes with just a screwdriver

• Lifetime mechanical and finish warranty



Specifications

Certifications	Grade 2
Backset	Adjustable  2 3/8" or 2 3/4"
Door Thickness	1 3/8" - 1 3/4" Doors standard
Cylinder	SmartKey Security
Rose	Optional, Square or Round
Strikes	2 1/4" x 3 5/8"
Faceplate	1" x 2 1/4"
Bolt	1" Throw steel
Includes:	2 Keys Per Deadbolt
ADA	Satisfy section 4.13.9 ADA requirement

Downloads

• Installation Guide
• How to Rekey a SmartKey Security Lock
• Sell Sheet
