Keyline - 994 Laser - Key Cutting Machine - For Edge Cut And Automotive Laser Keys w/ 2 Jaws (A & C)

KLN-B994

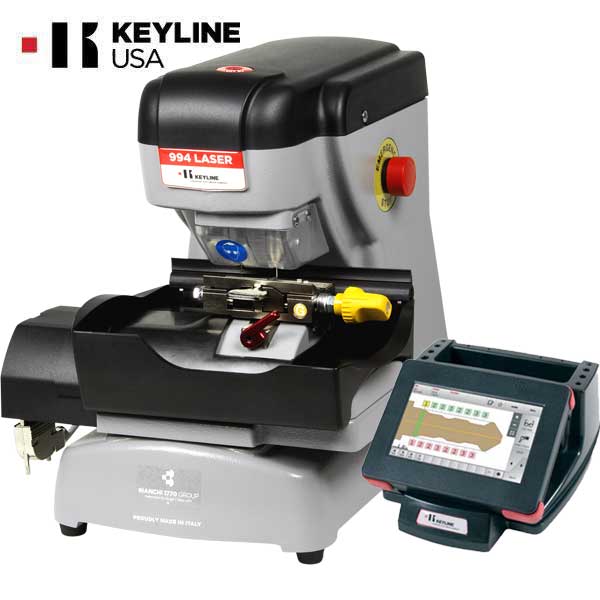

The 994 Laser is the most advanced electronic high security key cutting machine on the market. Featuring a touch screen console and stand alone unit - this is all you will need to cut high security keys by code.

• Incomparable level of ergonomic, sophisticated, and functional design.

• Compact (around 2 pounds) and reduced dimensions for use from the shop to the van, at the workstation, or hung on the wall.

• Simplified procedures for maximum ease of use.

• Minimum energy consumption.

• New and updated features make every operation immediate, simple, and secure.

• Search for make, model, and year of the vehicle with preview of the key profile.

• Instantly search by code even with partial depth input.

• Dynamic graphic representation of the cut, with additional key information.

• Management of favorites and customer accounts with an internal database of user notes.

• Integrated help screens.

• Updates via internet or USB.
• Obtain the software subscription here: Bronze 1 year, Silver 3 years

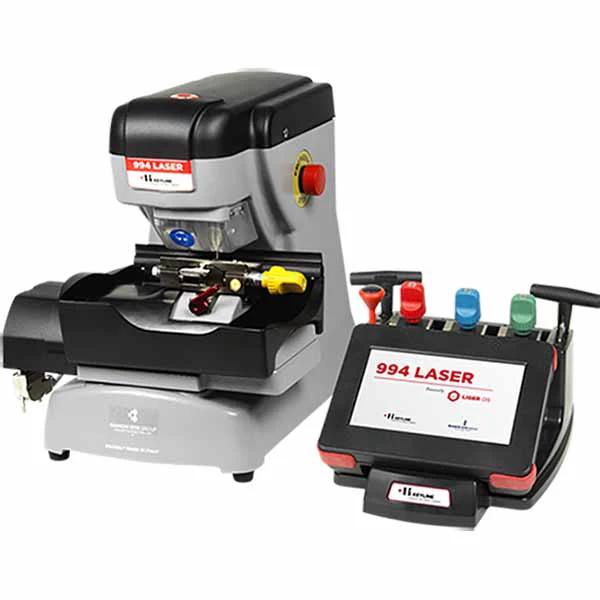

994 Laser, the most advanced key cutting machine for automotive laser keys, edge cut keys and now Tibbe keys has a new, innovative console.

Machine highlights

• Incomparable level of ergonomic, sophisticated and functional design.
• Compact (around 2 pounds) and reduced dimensions for use from the shop to the van, at the work station or hung on the wall.
• Simplified procedures for maximum ease of use.
• Minimum energy consumption.

A new key cutting experience

• New and updated features make every operation immediate, simple and secure.
• Search for make, model and year of the vehicle with preview of the key profile.
• Instantly search by code even with partial depth input.
• Dynamic graphic representation of the cut, with additional key information.
• Management of favorites and customer accounts with an internal database of user notes.
• Integrated help screens.
• Updates via Internet or USB.

Jaws

994 Laser uses four jaws; A, B, C, D for laser keys, the optional G jaw for double-sided edge cut keys without the need to turn the key and the optional H jaw for 6-cut Tibbe systems

Keyline patented systems

• Key tilting prevention system.
• Insertion from the top of the Widia cutter.
• Auto setting of the cutter for a facilitated replacement.

994 Laser is designed for:

• all automotive operators who want a market proven automotive key cutting machine with a built-in database of keys
• automotive locksmiths and dealers who want to cut high security and double-sided automotive keys with speed and precision

INCLUDES STANDARD PARTS

• A Clamp (Red)
• C Clamp (Green)
• Universal 2.5mm Cutter
• Universal Tracer
• Magnetic Tip Stop
• Plunger Tool
• 5 Key Blanks
• 2.5mm T-Handle Wrench
• 3mm T-Handle Wrench
• 4 GB USB Flash Drive

SUPPORTED KEYS

• Tibbe Keys
• Laser Keys
• High Security Keys
• Edge Cut Keys

TECHNICAL SPECIFICATION

Power Supply	110V 50-60Hz / 220-240V 50-60Hz
External Connections	2 USB 2.0 ports; 2 RS232 serial ports; 1 LAN port
Cutter	EDGE CUT KEY SIDE: 63mm carbide cutter LASER KEY SIDE: 2.5mm cutter
Motor	EDGE CUT KEY SIDE: Asynchronous, 0.18 KW LASER KEY SIDE: DC electronic motor
Key Reading System	EDGE CUT KEYS SIDE: mechanical tracer with linear sensor laser, DIMPLE KEY SIDE: electric contact
Absorption	250W (35W in stand-by)
Dimensions	Width: 15"/ Depth: 17"/ Height: 13"
Lighting	2 LED STRIPS -lighted cutting key
Movements/Axes	3 stepper motor-operated axes
Cutter Speed	EDGE CUT SIDE: 1500-3000 rpm (variable speed according to the programs) DIMPLE KEY AND LASER KEY SIDE: 13,000 rpm
Gauge	EDGE CUT KEY SIDE: Automatic gauge unlock through the movement of the axes
Electronic Equipment	Mainboard with ARM Cortex A8 CPU, 256 MB RAM, NAND 1 GB memory, high-resolution axes control
Clamps	EDGE CUT KEY SIDE: 4 sided LASER/DIMPLE KEY SIDE: A02, A03, C30
Weight	65 lbs.
