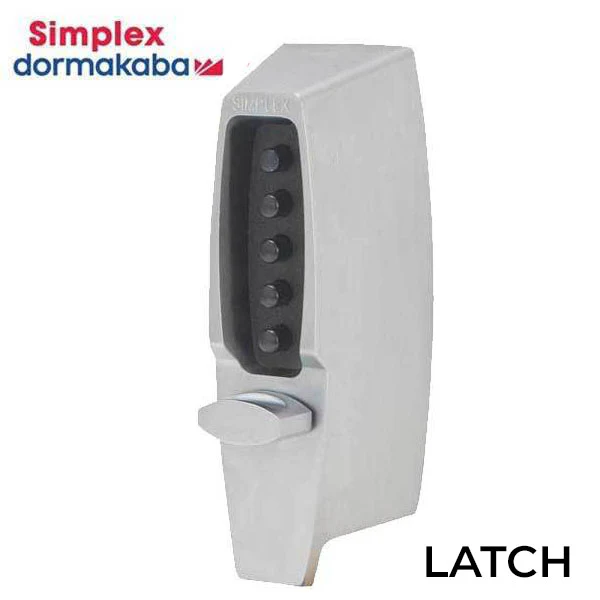

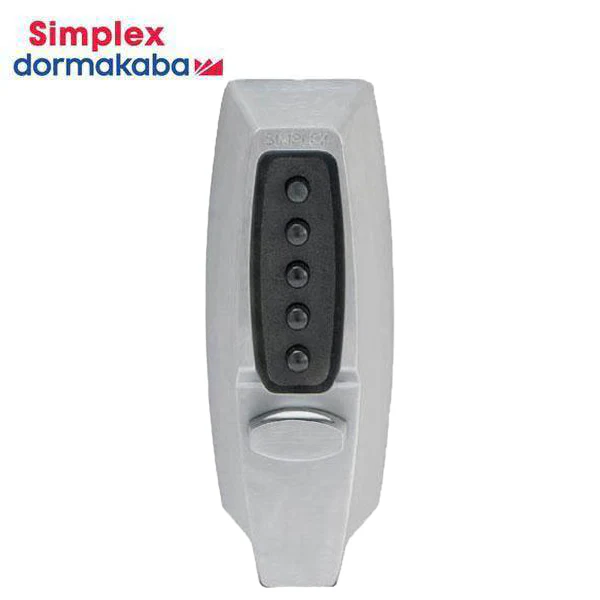

Simplex - 7104 - Mechanical Pushbutton Deadlocking Latch Keyless Lock - 2 3/8" Backset - Satin Chrome
The Simplex 7104 Mechanical pushbutton Deadlocking Latch eliminates problems and costs associated with issuing, controlling, and collecting keys and cards. Provides fully mechanical primary or auxiliary pushbutton access control by exterior combination, while allowing free egress at all times by interior thumbturn. Deadlocking latch relocks automatically when door closes
Features:
- Fully mechanical lock eliminates the material and labor expense of battery replacements
- Deadlocking Latch—relocks automatically when door closes
- Number of Codes: Single access code—one easy-to-manage code for all users
- Lock is easily programmed via keypad without removing lock from the door
- Field reversible Handing
- Pushbutton Access
- Primary / Auxiliary Lock
Specifications:
Construction: |
All metal cast front housing; force-resistant, clutch-protected exterior thumbturn |
Locking Device: |
½" (13 mm) Deadlocking Latch, flat front face plate Adjustable 2⅜" (60 mm) to 2¾" (70 mm) backset |
Numeric Keypad: |
Vandal resistant, solid metal pushbuttons |
Handing: |
Field reversible |
Finish: |
Satin Chrome 26D (626) |
Backset: |
Adjustable 2⅜" (60 mm) to 2¾" (70 mm) backset |
Latch: |
½" (13 mm) deadlocking latch |
Minimum Stile Recommended: |
4” (102 mm) |
Strike: |
Curved lip strike plate |
Door Preparation: |
|
Door Thickness: |
1⅜" (35 mm) to 2¼" (57 mm), wood or metal |
Durability: |
Weather resistant |
Certification: |
BAA/NAFTA Certified |
Warranty: |
1 year manufacturer warranty |
Downloads:
- Installation Guide
- Spec Sheet
Return Policy: We do not accept returns on unsealed products. In order to return a defective item a support ticket is needed. To receive a ticket, please contact DORMA KABA directly at 1-800-849-8324 or visit their support page here. Once you have the ticket contact UHS Hardware for the return.
