Jonard Tools - Fiber Optic Power Meter (-50 to +26 dBm) w/ FC/SC/LC Adapters

The Jonard Tools Fiber Optic Power Meter is perfect for measuring both the absolute optical power and relative power loss in fiber optic cables. This power meter features the following:

• Measures a wide variety of wavelengths from 800-1650 nm, with a mere 0.01 dB resolution
• Measures 6 preset calibrated wavelengths with high precision to determine absolute or relative power
• Special function of the unit allows the device to be manually calibrated as needed
• LED screen is backlit for viewing in low light locations and a 10 minute auto-off helps preserve battery life
• Dust-proof button design and shatter-resistant sleeve protect the tool to last a lifetime
• Comes with FC, SC, and LC adapters so that fiber connectors can be directly connected to the tool
  • The FC/SC adapters are for APC/PC/UPC connectors
  • The LC adapter is for PC/UPC connectors only

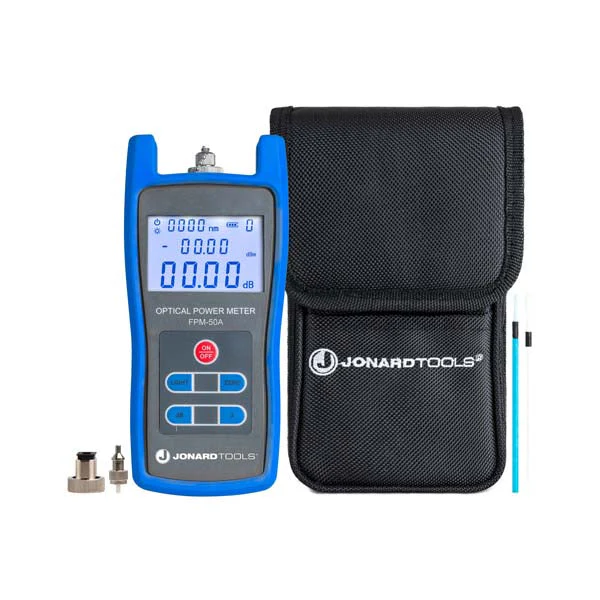

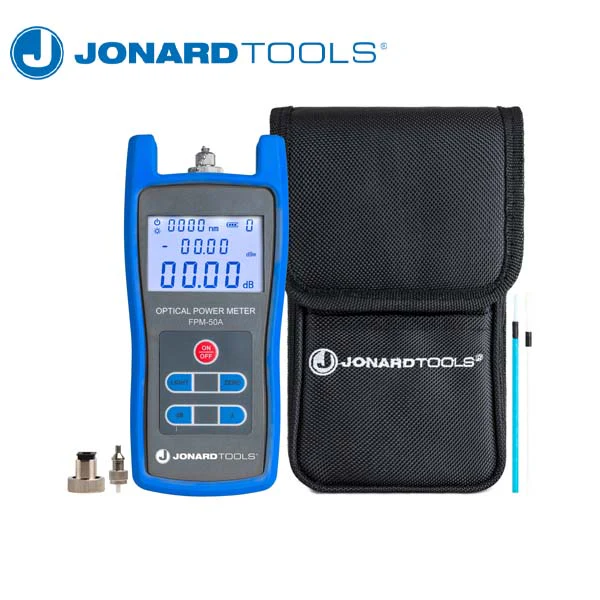

Includes:

• Fiber Optic Power Meter
• Instruction Manual
• Protective Cover
• (3) AA Batteries (required for operation)
• (2) Cleaning Swabs
• FC Adapter
• LC Adapter
• SC Adapter
• Nylon Carry Case

Specifications

Connector Types	FC, SC (APC/PC/UPC) & LC (PC/UPC)
Calibrated Wavelengths (nm)	850, 980, 1300, 1310, 1490, 1550, 1625, 1650
Detector Type	InGaAs
Measurement Range	-50 dBm to +26 dBm
Single Mode Range	850, 980, 1300, 1310, 1490, 1550, 1625, 1650 nm, ≤ ± 0.25 dB
Multi Mode Range	850, 1300 nm, ≤ ± 0.8 dB
Resolution	0.01 dB
Operating Time	≥ 130 hours
Battery Type	(3) AA batteries
Dimensions	7" x 3.25" x 1.5" (17.78 cm x 8.26 cm x 2.54 cm)
Weight	0.5 lb (227 g)
UPC #	811490019966
