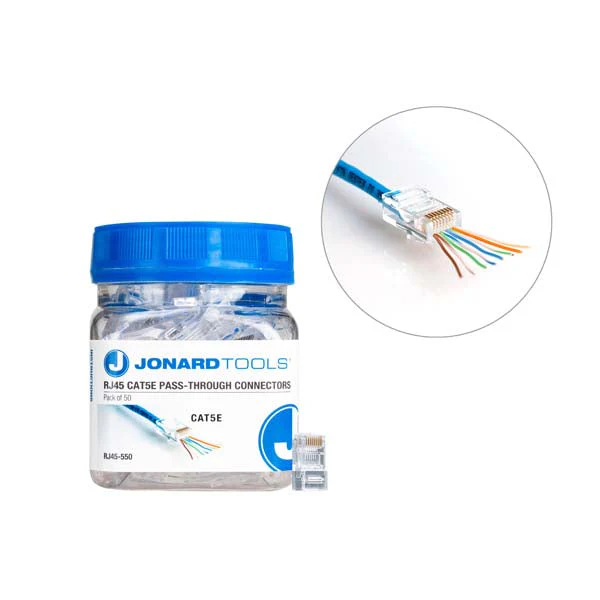

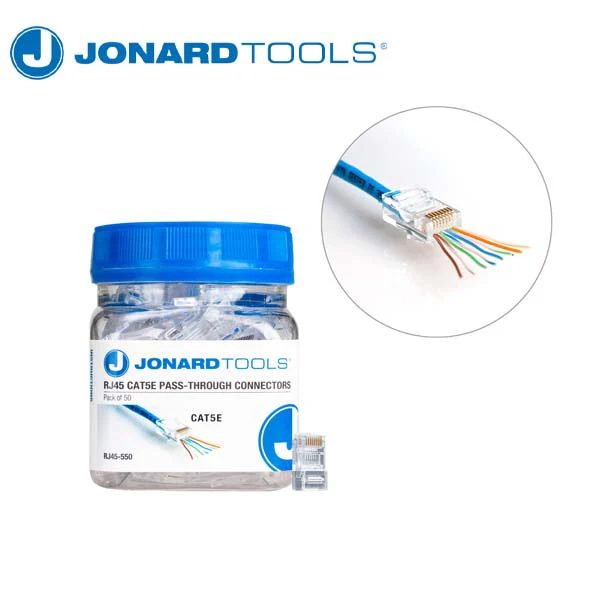

Jonard Tools - CAT5e RJ45 Pass-Through Connectors (Pack of 50)

The Jonard Tools CAT5e RJ45 Pass-Through Connectors are used by network installers/technicians in order to terminate CAT5e network cables with a pass-through crimper. They are used in households and businesses and are ideal for terminating a round network cable or even replacing an existing connector. These connectors feature the following:

• 50 μin gold plating on contact surfaces provides greater signal quality than the competition
• Tripoint-type prongs allow you to use stranded or solid CAT5/CAT5e cables
• Simplify twisted pair network cable termination by allowing the wires to pass through the connector
• Advantage of the pass-through feature is that you do not have to measure and cut the wires before termination, which can lead to having poor connection and signal loss
• Clear housing allows the operator to see the wire pairs easily
• Comes packaged in a jar for convenient storage

This product comes in a jar of 50 connectors.

Intended for use with our RJ11 and RJ45 connector crimping tool: UC-4569

Specifications

Number of Connectors	50
Cable Type	CAT5, CAT5e Network Cables
Connector Type	Three-prong RJ45
Plating Thickness	50 micro-inches
Housing Material	Polycarbonate
Standards	UL 94V-2, RoHS Compliant
Operating Temperature	-10°C to 60°C
Dimensions	0.88 in x 0.46 in x 0.36 in (2.24 cm x 1.17 cm x 0.91 cm)
Weight	0 lb (0.908 g)
UPC #	811490018112

Downloads

• Spec Sheet
