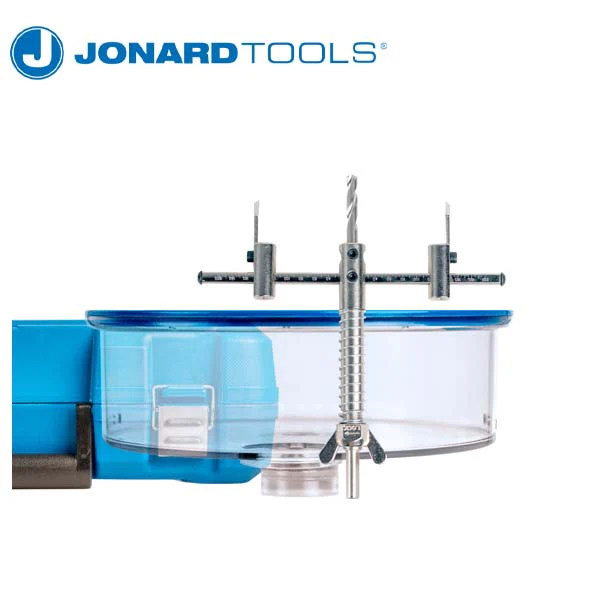

Jonard Tools - Adjustable Round Hole Cutter w/ Vacuum Port - 9"

Designed for cutting round holes in ceilings, walls, and floors without making a mess, the AHC-19 is the perfect tool for installing recessed speakers, lighting, or other round objects. This adjustable hole cutter features the following:

• Can be hooked up to vacuums, with 2.5" (63.5 mm) diameter hose nozzles, to suck up debris as you go
• Cuts plywood, sheetrock, plasterboard, and acrylic sheet up to 1 1/16” (27 mm) thick
• Cutting depth is adjustable via hex locknut and compression spring
• Cuts hole sizes from 2.2" to 9" (56 mm - 228.6 mm) in diameter
• Polycarbonate transparent dust shield collects dust and prevents chips from flying into eyes while cutting
• Rubber gasket provides surface protection against damage, tight seal against flat surfaces, and prevents fallout from debris
• Compression spring absorbs vibrations while cutting
• Can be used with any variable-speed drill
• Power drill and vacuum not included with hole cutter

Product Includes:
1 Cover, 1 Adjustable Hole Cutter, 1 Vacuum Port, 1 Cap, 1 Nut, 1 Set of Replacement Blades, 1 Hex Key, and a Rugged Carry Case

Specifications

Cut Type	Round Hole
Works On	Plywood, Sheetrock, Plasterboard, Acrylic Sheet
Cutting Diameter Range	2.2"- 9" (56 mm-228.6 mm)
Vacuum Port Size	2.5" (63.5 mm)
Maximum Cutting Depth	1.1" (27 mm)
Bit Diameter	0.236” (6.0 mm)
Bit Length	2.17” (55 mm)
Bit Material	Steel
Hex Chuck Size/Arbor Size	3/8" (9.53 mm)
Dimensions	13" x 4.50" x 13" (33 cm x 33 cm x 11.4 cm)
Weight	6.28 lb (2852.936 g)
UPC #	810053350171

Downloads:

• Spec Sheet
