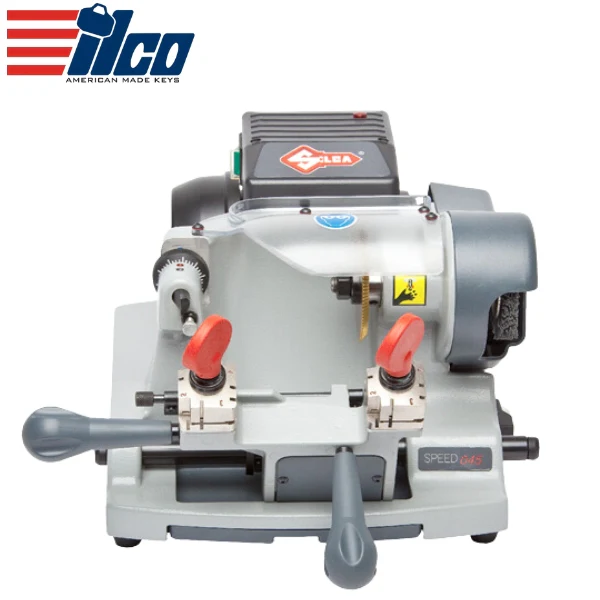

Ilco - Silca Speed 045 - Manual Edge Cut Key Duplicator - 120V
Designed for duplicating edge cut/flat style keys, the Speed 045 Edge-Cut (Mechanical) offers accurate and economical key cutting. This manual model is an ideal basic duplicator for any key cutting outlet. The Speed 045 is designed to duplicate edge-cut automotive, residential and commercial keys and includes features that any user will readily appreciate. The modern, open style, safety details and operational features make this model a choice model for store or shop, and with the included mounting bracket, it is also an excellent choice for mobile use.
- Four-sided, nickel-plated jaws for clamping the majority of all edge cut/flat type keys. Smooth rotation by simply twisting into position
- Slotted jaw surfaces accommodate tip stop bars and a rigid shoulder gauge design to allow for greater accuracy when loading and gauging keys
- Wide spacing 3 1/2” (88.9 mm) spacing between clamps accommodate large bow (head) and long blade keys, including flip style keys
- Depth tracer system with micro adjustment for precise calibration in increments of .00098” (0.025mm)
- TiN (Titanium Nitride) coated cutter for longer life and oxidation resistance
- Nylon deburring brush
- Electro-magnetic “main” safety switch with a separate cutter motor switch for easy access
- Large transparent cutter safety shield contains chips and provides a storage area for accessories
- Large drawer-type swarf (chip) tray under the carriage for easy access
- Mounting bracket included for securing the machine to counter
- Two-year warranty
| Power Supply: 120V-60Hz | Cutter: TiN coated |
| Maximum absorbed power: 2.8 Amp, 200 Watt | Brush: Nylon, 5/8” (15.87 mm) bristles |
| Cutter motor: single phase and speed | Width: 15.75” (400 mm) |
| Movements: by ball joint on rectified carriage | Depth: 18.1” (460 mm) |
| Tool Speed: 1350 rpm | Height: 9.8” (250 mm) |
| Carriage Runs: 1.65” (42 mm) | Weight: 31 lbs. (14 kg) |
| Operation: Edge-Cut (Mechanical) |
