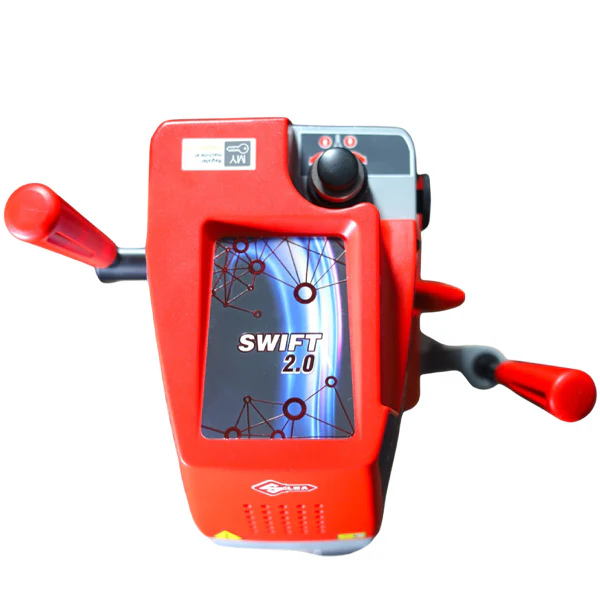

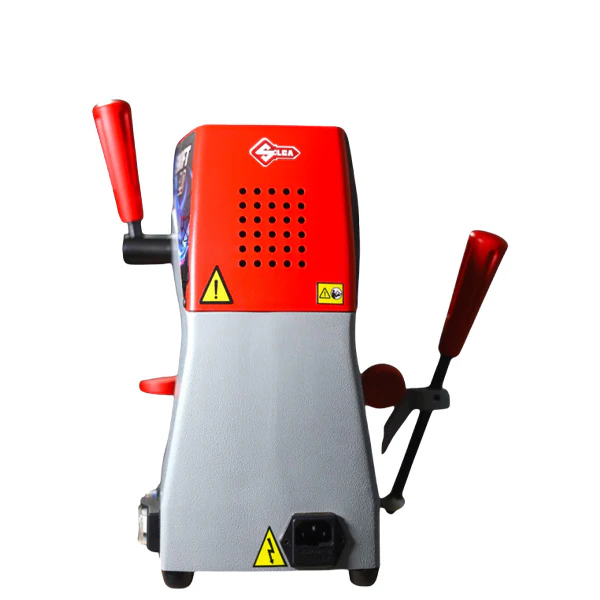

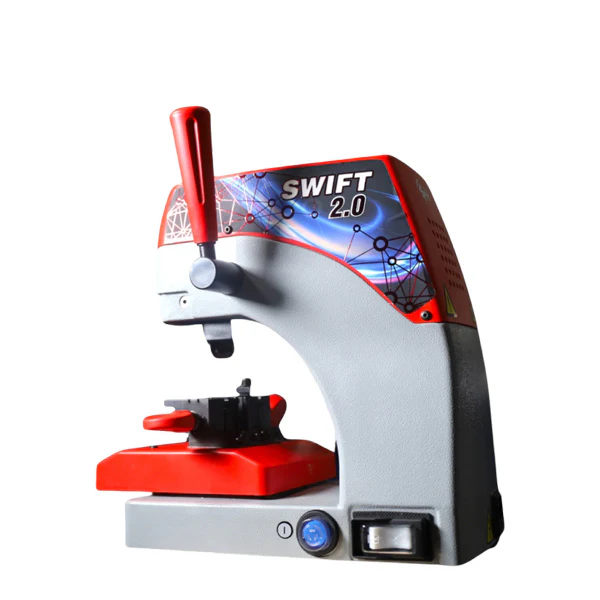

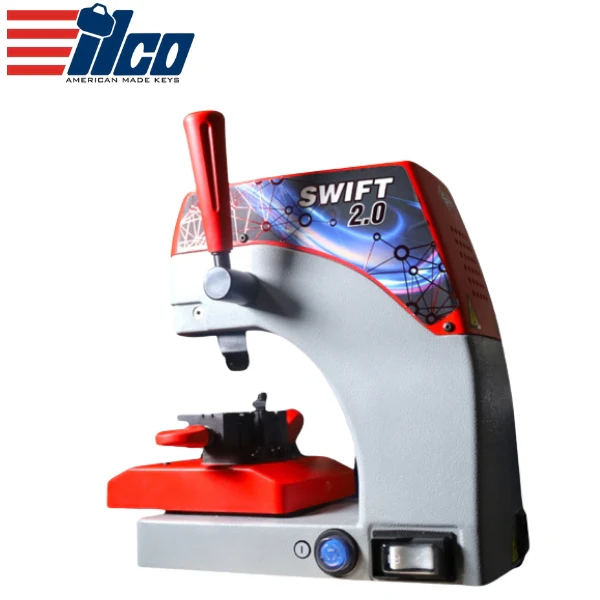

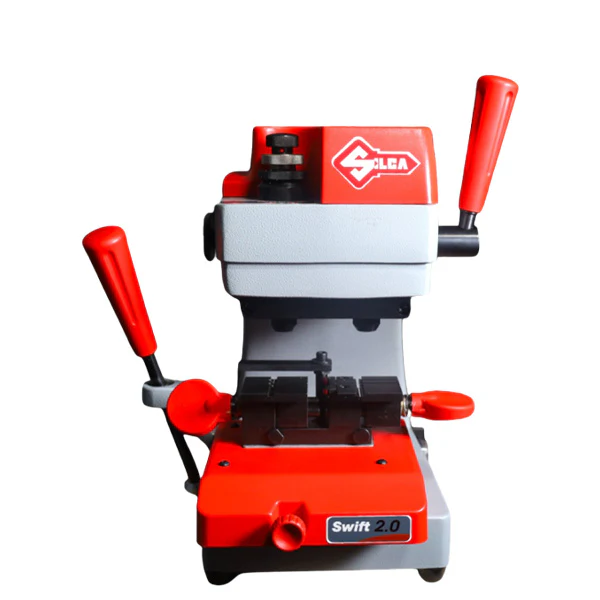

Ilco - Silca Swift 2.0 - Mechanical Key Duplicating Cutting Machine for Laser-Cut - Dimple - Tubular Keys - 120V

Based on the existing Swift Plus platform, the all-new Swift 2.0 (Mechanical) features a fresh aesthetic appearance and enhanced carriage design for smoother operation. Lightweight and compact, this model is ideal for mobile use or where counter space is limited, making it perfect as an entry-level mechanical key-cutting machine for duplicating Laser-Cut, dimple, and tubular keys.

Features:

• Improved carriage design resulting in a better overall user experience during the duplication process.
• HSS TiN coated cutters for longevity.
• Easily replace cutter side jaws.
• Master safety switch with separate cutter motor switch.
• Built-in accessory tray on top of the hood.
• Quick calibration of the Z-axis for laser keys using calibration bars.
• Spring-loaded tracer point and nickel-plated adjustment ring provide accurate calibration for dimple keys.
• LED lighting illuminates the work area.
• Ergonomic grips
• Safety shield
• Ergonomically designed levers provide user comfort and control.
• Compact dimensions saves work space on counter or mobile use.

Specifications:

Electricity Supply	220V-230V / 50-60Hz 110V-120V / 60Hz
Maximum absorbed power	220V-230V: 1 Amp 200 Watt 110V-120V: 1.3 Amp 200 Watt
Motor	One-speed single phase, 0.2 hp
Cutting tools	Super rapid steel HSS - Coated
Tool Speed:	50Hz: 6000 rpm (+/-10%) 60Hz: 6000 rpm (+/-10%)
Movements	On 3 axes through balls and guides
Clamps	Fixed
Runs	X-axis (lower): 24mm Y-axis (upper): 50mm Z-axis (vertical): 22mm
Dimensions	Width: 260mm Depth: 285mm Height: 315mm
Weight	28.66 lbs
Sound pressure:	76 dB(A)

Accessories:

• Laser Keys:
  Cutter: FE04 2.5mm (D741433ZB)
  Tracer: TE04 2.5mm (D741432ZB)
• Dimple Keys:
  Cutter: FE01 0.65mm (D741127ZB)
  Tracer: TE01 0.65mm (D741128ZB)

Downloads:

• Spec Sheet
• Manual
