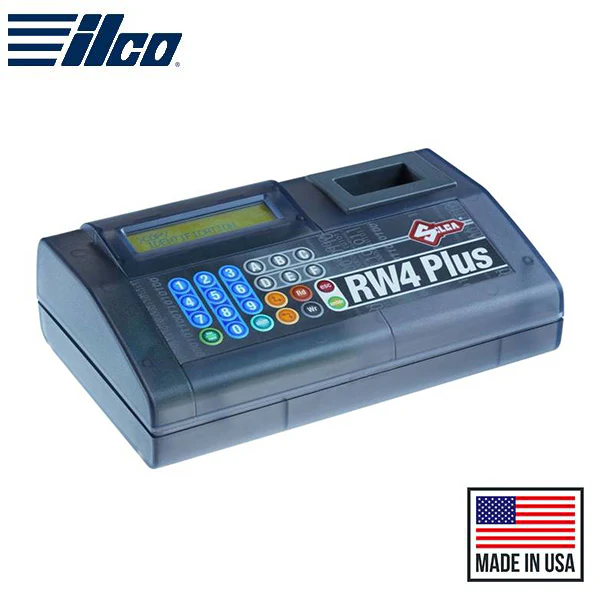

ILCO - RW4 Plus with Snoop and Look-Alike Cloning Kit

ILCO-BM0209XXXX


The RW4 Plus is a professional locksmith tool, a compact, portable, stand-alone cloning tool that is designed for professional use.

Take control of Texas (IT) and Phillips encrypted code, including fixed code (T2 & T5) transponder-equipped keys.

RW4 Plus is compatible with ILCO / SILCA brand transponder, modular, flip keys, and GTI transponder.



Features:

• Stand-alone cloning of the Texas and Phillips encrypted code and fixed code (T2, T5) transponder keys.
• Snoop (included) is used for Phillips cloning to capture communications between the vehicle and the key.
• Clone Megamos encrypted (ID48) with the addition of the M-Box with M-Snoop.
• Automatic transfer of preceding key data using the ADC243 cable and your MVP or T-Code Pro tester and Smart Dongle.
• Indicates the presence of a transponder and identifies type, value, and manufacturer.
• Stand-alone code generation for specific fixed code transponders.
• Generate code for over 30 different encrypted transponders with the Silca transponder setting program.
• Archiving the stand-alone function (up to 99) and unlimited when utilized with a PC
• Lightweight portability.
• Includes a 12V DC adapter for use in the vehicle.



Specifications:

RW4 Plus Power Supply	15V DC - 10W
RW4 Antenna Field Frequency	125KHz
RW4 Plus Width	9.64" (245 mm)
RW4 Plus Depth	6.3" (160 mm)
RW4 Plus Height	3.15" (80 mm)
RW4 Plus Weight	1.3 lbs. (0.6kg)
M-Box w/ M-Scoop Power Supply	15V DC - 10W
M-Box w/ M-Scoop Width	9.64" (245mm)
M-Box w/ M-Scoop Depth	6.3" (160mm)
M-Box w/ M-Scoop Height	1.5" (38mm)/ 4.13" (105mm) with antenna in vertical position
M-Box w/ M-Scoop Weight	1.1 lbs (0.5 kg)
RW4 Plus  Software Requirements	Version 3.2.08 (included with cable)
MVP or T-Code Pro Tester Software Requirements	Version 12.32
Smart Dongle Software Requirements	Version 1.1.5



RW4 with M-Box:

Expand the RW4 plus capabilities at your own pace with the M-Box ID48 solution with the ADC243 cable for Advanced Diagnostics Programming Tools.

Clone Megamos (ID48) :

With the addition of the Silica M-Box with M-Snoop and the T48 glass transponder to clone Megamos encrypted (ID48).

• Connect to Wi-Fi via a smartphone or tablet hotspot, no need for a PC or fixed internet connection.
• M-Snoop (included) reads original key data without the need to cut a new key.

Eliminate The Need To Enter Precode Key Data:

Precode Fiat transponders quickly and without having to switch tools. This cable enables the automatic transfer of pre-coded key data from the programmer/tester to a new transponder via the RW4 Plus.

The Advanced Diagnostics ADC243 cable easily connects your devices together (RW4 Plus, MVP, or T-Code Pro Programmer/Tester with Smart Dongle). This cable also works with the addition of the M-Box.
