Ilco - Futura - M400 - All In One - Electronic Key Cutting Machine And Duplicator

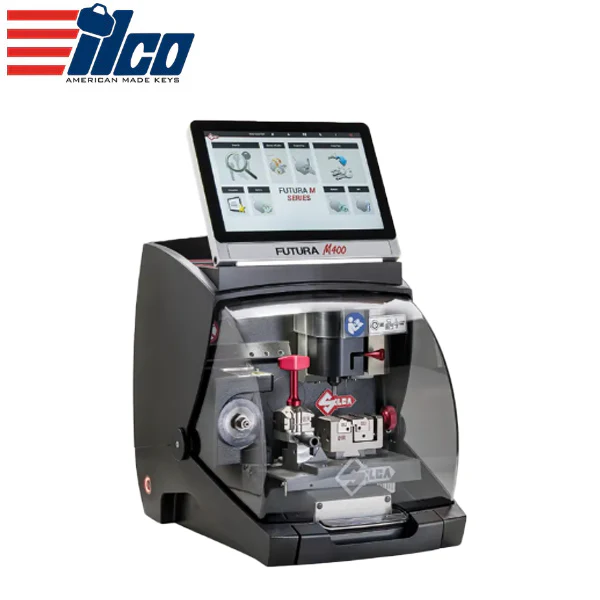

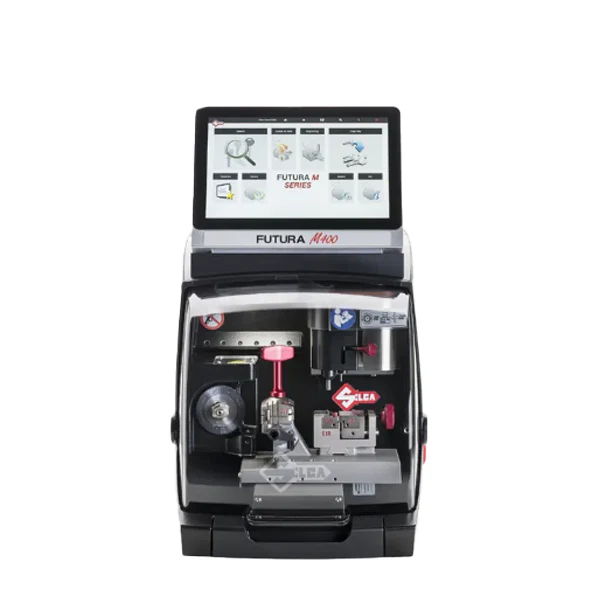

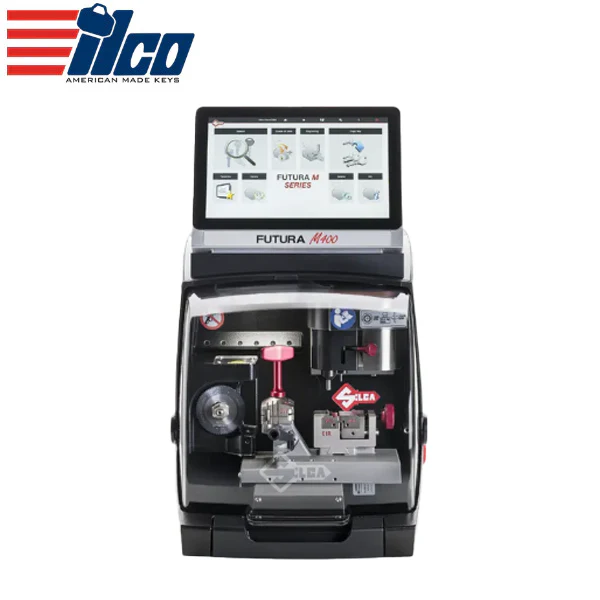

The Futura M400 is a new-generation electronic key cutting machine that incorporates the best of Silca technology and experience, duplicating residential, automotive, and specialty key types.

Designed to ensure maximum operational versatility, the Futura M400 allows the duplication of a wide range of flat and dimple keys, with flat or inclined keyways, including keys associated with protected and customized systems. Silca’s iconic key-cutting machine is now faster, quieter, and even easier to use. Thanks to its easy-to-use yet powerful software and its ability to cut all types of keys, including protected systems and customized cylinders, the Futura M400 is the perfect all-in-one solution for delivering a professional key service.

Features:

• All-in-one capability for flat, cruciform, laser, and dimple keys
• Dual dedicated cutting stations for optimized workflow
• Integrated 10" touchscreen with intuitive, guided software
• Decoding, copy by original, and code cutting functionality
• Automatic calibration for consistent precision
• Durable metal construction with professional-grade cutters
• Quiet, high-performance motor system
• Fast, single-button start-up!

Flat | Cruciform Key Station

• Decoding via optical reader
• Copy by code and by original
• Four-sided rotating clamp
• Long-life WIDIA cutter
• Gauge for precise key installation

Laser | Dimple Cutting Station

• Decoding by electrical contact
• Easy-to-install clamp
• Interchangeable jaws
• Automatic calibration of the decoder and cutting station
• Pull-out tracer point

Specifications:

Technical Data:

Machine	24V d.c - 5.5 Amp - 130W
Power Pack	90/264V a.c - 50/60Hz - 220W

Cutter Motor:

Flat Cuts

24V d.c.

Axes Run:

Y Axis	30 mm
X Axis	50 mm
Z Axis	27 mm

Movements:

Movements

Movement on 3 axes (with special bushes), driven by step motors on recitified roller guides

Flat Cuts:

Prismatic Cutter	U01W, hard Metal with coating
Clamp	01V | Removable | Four universal sides holding flat, vehicle, and cruciform keys

Dimple Cuts:

Cutter	01D, in HSS Super Rapid Steel
Clamp	01R | Removable | Provided with interchangeable jaws

Laser Cuts:

Cutter	01LW, in Carbide AICrN Coated
Clamp	01R | Removable | Provided with interchangeable jaws

Dimensions:

Width	318 mm
Depth	413 mm
Height with Tablet and Stand	530 mm
Height with Display Closed	365 mm
Weight	20 kg | 44.09 lbs
