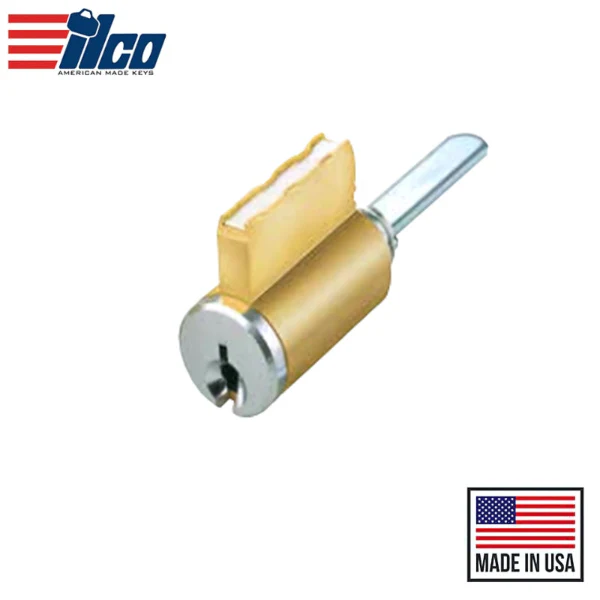

Ilco - 15995 - Key-In-Knob Cylinder - 5 Pin - Yale GA - KD - 26D - Satin Chrome - Grade 1

The DORMAKABA ILCO 15395YG-26D-KD is a universal lock cylinder designed to fit key-in-knob (KIK), key-in-lever (KIL), and padlock-style hardware. Constructed from solid brass bar stock and finished in a durable satin chrome (US26D / ANSI 626), this 5-pin cylinder offers reliable performance for commercial and residential applications.

Product Specifications
Brand	DORMAKABA ILCO
Model Number	15395YG-26D-KD
Product Type	Universal Cylindrical Lock Cylinder
Application	Key-in-Knob (KIK), Key-in-Lever (KIL), Padlock Cylinders
Material	Solid Brass Bar Stock
Finish	Satin Chrome (US26D / ANSI 626)
Keying	Keyed Different (KD)
Keyway	Yale GA
Pin Configuration	5-Pin (drilled to 6 chambers for master keying)
Tailpieces Included	3 Rigid Tailpieces + 2 for Sargent Keyways (BA & BB)
Mounting	Horizontal or Vertical
Compatibility	Grade 1 & Grade 2 Knob/Lever Sets and Padlock-Style Cylinders
ANSI/BHMA Rating	E (Commercial Grade)
Height	Approx. 1.04 in (26.4 mm)
