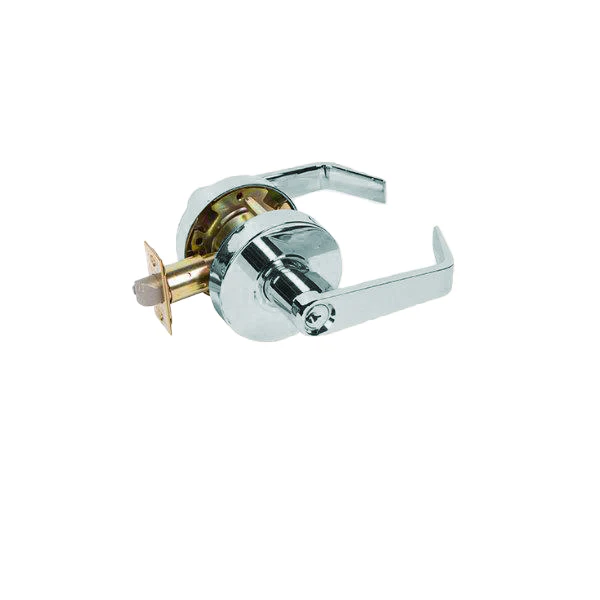

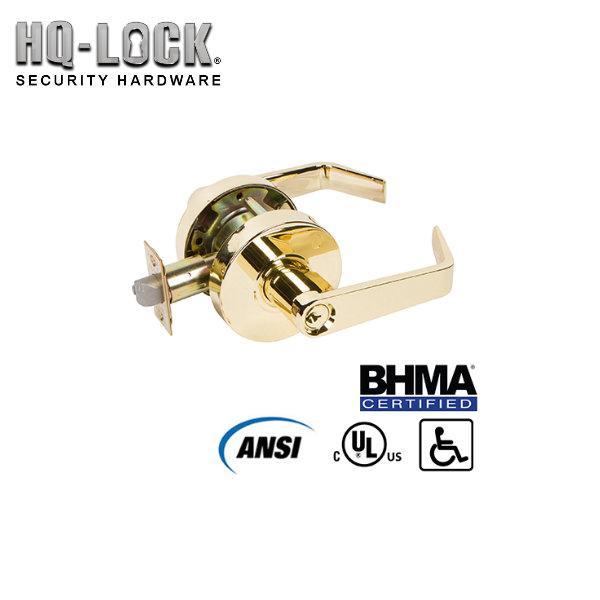

HQ LOCK 4574 Lever Set Storeroom - Optional Finish

SPECIFICATIONS:

• DOOR THICKNESS: 1-1/2” to 2”
• BACKSET: 2-3/4” standard or 2-3/8” optional
• STRIKE: 1-1/4” x 4-7/8”, ANSI strike, square corner
• LATCH: 2-1/4” x 1-1/8”, square corner face plate, 1/2” throw, UL Listed 3-hr
• THROUGH-BOLTS: Removable through-bolts
• CYLINDER: Drilled 6, pinned 6 solid brass cylinder Schlage keyway with 2 brass keys
• CORE: Prepped for either 6-pin or 7-pin SFIC core.
• FUNCTIONS: ENTRANCE LOCK, STOREROOM LOCK
• Finish: US26D, US3
