Key Controlled - Mortise Cylinder - 1" - 206 Keyway - US26D - Satin Chrome

Key Controlled Mortise Cylinders are machined engineered and manufactured to the highest standard specifications. Key Controlled cylinders are recommended in applications where security is a premium.

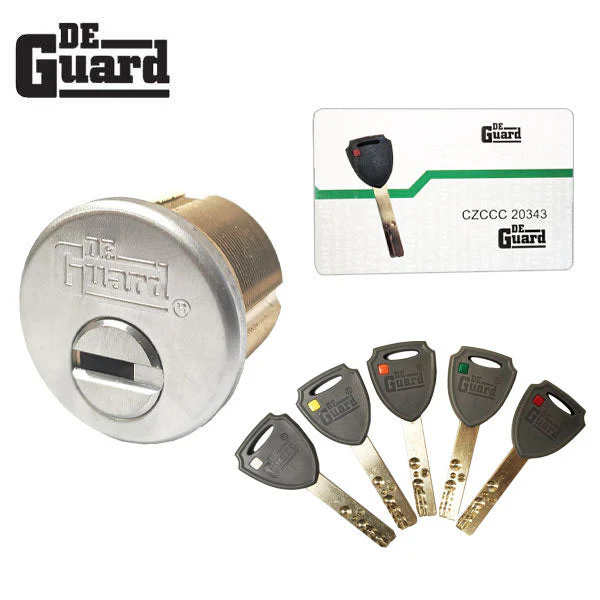

Each lock comes with 5 color coded Key Controlled keys and duplication card for re-keying. Designed to work with most Grade 1 and 2 Mortise Locksets, Narrow Stile locks, Adams Rite mechanisms, Alarmed Panic Bars and Exit Devices. Add an extra layer of security to your home or office

Size	1" (25.4 mm)
Cylinder	Key Controlled Brass Cylinder with Floating Point Pins
Keyway	Key Controlled Pick Resistant #206 Keyway
Keys	Includes 5 Key Controlled #206 Keys & 1 Duplication Card
Pins	4-Pin
Furnished	Colored coded inserts for keys Mortise Cover Ring
Cams	Includes 2 CAMS Adams Rite Style ( Installed) Yale Style
Finish	US26D Satin Chrome
Keying	Keyed Alike Up To 12 - KA 12
Packaged	Each lock is individually boxed with the Cylinder, 1 Card, 5 Keys and Color Inserts Each Case of 12 contains 12 individually boxed Locksets (All Keyed Alike)
Warranty	Limited Lifetime Mechanical Warranty

Watch "How to Cut #206 Key Dimple Keys using SEC-E9" Video
