HES - 5200 Series - Electric Strike - Fail Safe-Fail Secure - 12/24 VDC - Satin Stainless Steel - Grade 1

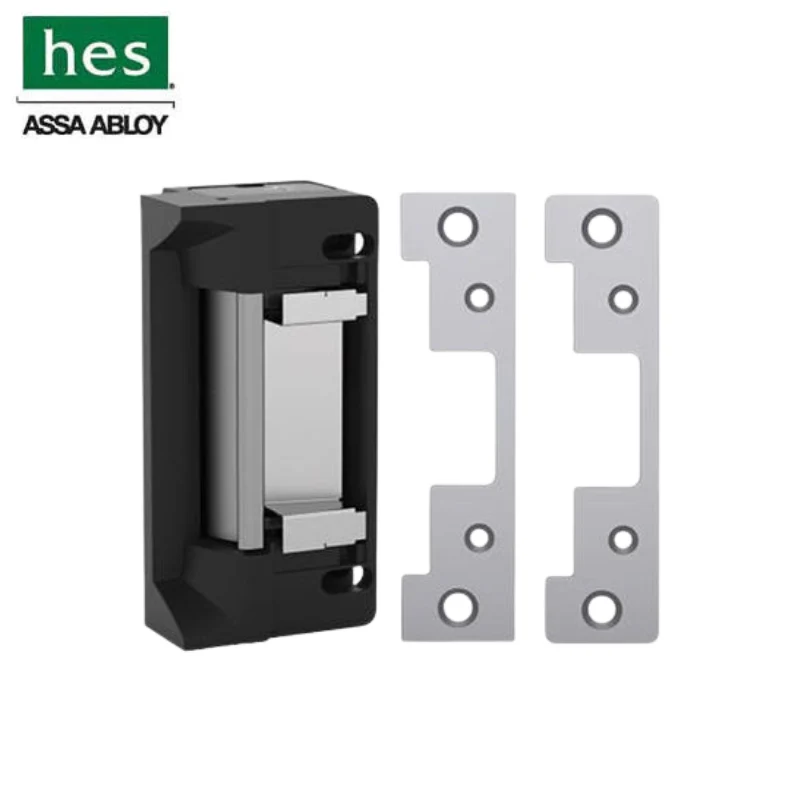

The HES 5200C has in-frame horizontal adjustability for easy installation. The 5200C works with cylindrical locksets up to a 3/4" throw latchbolt and includes in-frame adjustability and dual voltage. Each Complete Pac conveniently pairs the reliability of an HES electric strike with the flexibility of multiple faceplates in a single simple package. The 5200C includes a 5200 strike body, the 501 faceplate for cylindrical locksets in ANSI metal jambs and the 501A faceplate for cylindrical locksets or spring latches in aluminum frames.

Features:

• Includes: (1) 5200 strike body, (2) Faceplates (501 and 501A)
• Tamper resistant
• Static strength 1500 lbs & Dynamic strength 70'- lbs
• Endurance 500,000 cycles
• Field selectable fail secure/ fail safe
• Dual voltage 12 or 24 VDC/VAC
• Non-handed
• Internally mounted solenoid
• Accommodates 5/8" - 3/4" latchbolt (3/4" with 1/8" door gap)
• Strike body depth 1-1/16"




Specifications:

Frame Application:	Metal, Wood
Adjustability:	Vertical
Shim Type:	NA
Latchbolt Accommodation:	1/2" - 5/8"
Voltage:	12/24
Monitoring Installation:	Factory Configured
Monitoring Options:	Latchbolt Monitoring
Endurance (cycles):	1,000,000
Dynamic Strength (ft-lbs):	70
Tamper Resistant:	Yes
Grade:	Grade 1
Warranty:	5 Year
Certifications:	UL 1034, UL 294, UL 305, Grade 1, RoHS Compliant



Downloads:

• Data Sheet
