Heavy Duty Panic Bar / Exit Device + Trim Lever Handle w/ Cylinder & Plate Lockset (Bundle)

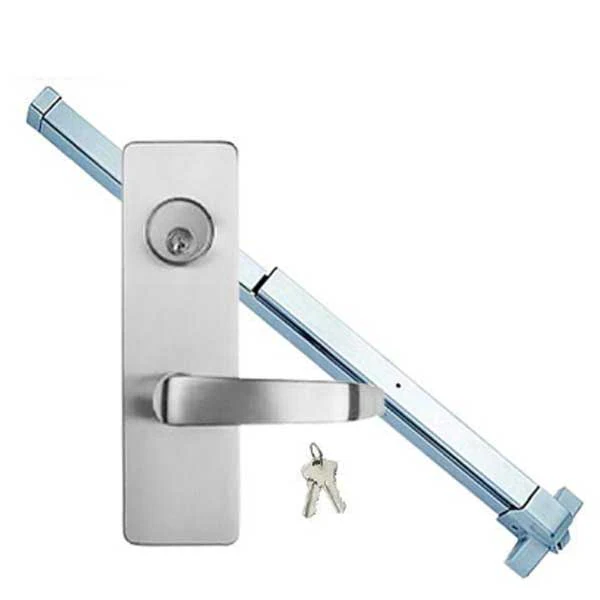

This is a KED01-AL Heavy Duty Panic Bar Exit Device combined with a KED-FLT-26D Trim Lever Handle w/ Cylinder & Plate Lockset.

Features

• KED01-AL Push Bar / Panic Bar Features:
• Rim Type Panic Bar Exit Device

• 36″ Length
• Door sizes 28" to 36"(711mm to 914mm)
• ANSI Grade 1
• Aluminum Finish
• Limited Lifetime Mechanical Warranty
• Compatible For Right or Left Opening Doors

KED-FLT-26D Trim Lever Handle Features:

• Trim for Panic Exit Device
• Zinc Alloy Material
• Satin Chrome-plated finish
• Exit Trim with Brass Rim Cylinder
• Field reversible

• Schlage C Keyway
• 6 Pins
• 2 Brass Keys



Panic Bar Specifications

Device Type	Rim Type Panic Bar Exit Device
Device Length	34.5" length made for 28" to 36" doors
Door Thickness	1-3/4" standard up to 2-1/4"
Handing	Reversible for Left or Right Handed Doors
Material	Push bar made of extruded aluminum / anodized material
Projection	Anodized Aluminum
Grade	Grade 1

Trim Lever Handle Specifications

Backplate Height	9-3/32"
Backplate Width	2-15/16"
Exit Trim Function	Exit Only
Function	Single Cylinder
Handing	Reversible
Handle Style	Lever
Material	Zinc Alloy
Keyway	Schlage C
Cylinder	6 Pin Brass Rim Cylinder
Keys	2 Brass Keys
Rose Shape	Rectangle
Finish	Satin Chrome



Downloads

• Panic Bar Installation Manual

• Trim Lever Handle Installation Manual

• Trim Lever Handle Drawing
