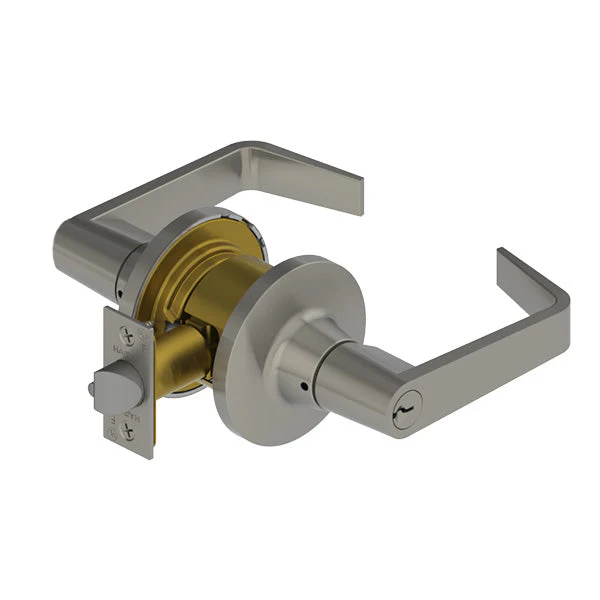

Hager - 3680 - Lever - Storeroom - 2-3/8-2-3/4 - Satin Chrome - Withnell Lever - Schlage C Keyway

Since Hager’s inception in 1849 their Hager brand commercial hinges have always been made right here in America. And it’s not just hinges. The bulk of Hager’s traditional door hardware lines are American-made.

More Details Below:

Specs

Certifications	ADA Compliant ANSI A117.1 Accessibility Code UL/cUL Listed for all functions up to 3 hours "A" label single doors UL10C Positive Pressure Rated BHMA Certified ANSI A156.2, Series 4000, Grade 2
Functions	Storeroom (F86)
Lever Options	Archer, August and Withnell
Cylinders/Cores	Keyed Different - standard Cylinder drilled 6 pin, Keyed 5 pin - standard Other Keying options, including 6 pin keyed, available from factory Zero bit cylinders will be 6 pin keyed SFIC uncombinated or combinated, brass 6 pin or 7 pin cores sold separately
Backsets	Adjustable 2-3/8" - 2-3/4" (60mm - 70mm)
Door Thickness	1-3/8" - 1-3/4" (35 mm - 45 mm)
Exposed Trim	Rose - Wrought brass, bronze, and stainless steel Lever - Zinc based, plated to match BHMA symbols
Keyway	Schlage C - Standard, other keyways optional
Latchbolt Type	1/2" (13 mm) throw, stainless steel 1" x 2-1/4" (25 mm x 57 mm) faceplate Deadlocking latchbolt prevents manipulation when door is closed Square corner faceplate standard, round corner optional
Notes	No exposed mounting screws Non-handed
Options	Split Finish
Rose Diameter	2-15/16" (75 mm)
Strikes	1-1/4" x 4-7/8" (32 mm x 124 mm) ASA strike Optional strikes available
Warranty	Five-Year

Downloads:

• Spec Sheet
