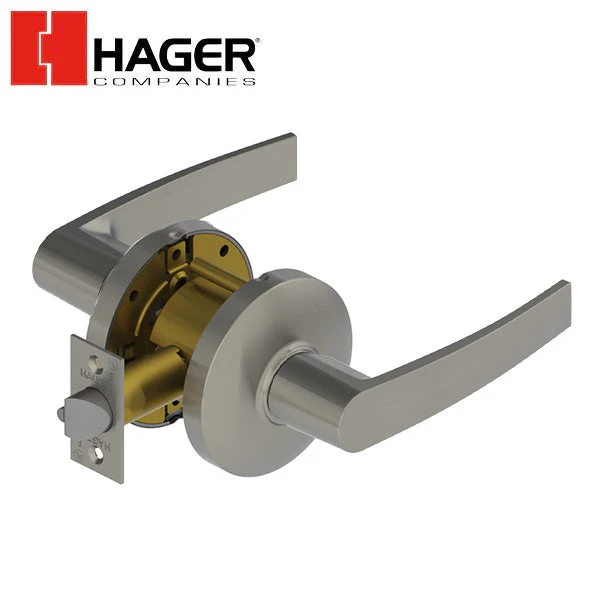

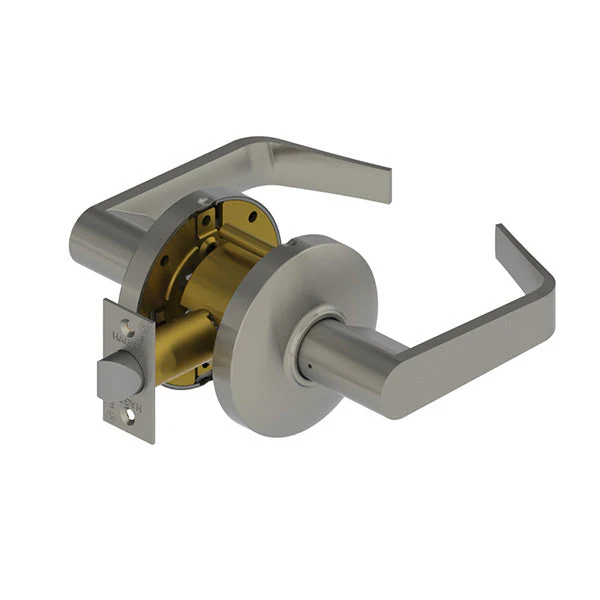

Hager - 3510 - Lever - Passage - 2-3/4" - Optional Finish - Optional Trim

Hager - 3510 - Lever - Passage - 2-3/4" - Optional Finish - Optional Trim



Since Hagerā€™s inception in 1849 their Hager brand commercial hinges have always been made right here in America. And itā€™s not just hinges. The bulk of Hagerā€™s traditional door hardware lines are American-made.


More Details Below:


    Specs

    Certifications
    • BHMA Certified ANSI A156.2, Series 4000 Grade 2
    • ADA Compliant ANSI A117.1 Accessibility Code
    • UL/cUL Listed for all functions up to 3 hours "A" label single doors
    • ANSI A250.13 Severe Windstorm ComponentUL10C Positive Pressure Rated
    Functions
    • Passage (F75)
    Lever Options
    • Archer, August and Withnell
    Backsets
    • 2-3/4" (70mm)
    • 2-3/8" (60mm)
    • 3-3/4" (94mm)
    • 5" (128mm)
    Door Thickness
    • 1-3/8" - 2" (35 mm - 51 mm)
    Exposed Trim
    • Wrought Brass, Bronze, and Stainless Steel
    Latchbolt Type
    • 1/2" (13 mm) throw, stainless steel
    • 1-1/8" x 2-1/4" (29 mm x 57 mm) faceplate for 2-3/4" (70 mm) backset
    • 1" x 2-1/4" (25 mm x 57 mm) faceplate for 2-3/8" (60 mm) backset
    Notes
    • No exposed mounting screws
    • Non-handed
    Options
    • Lead Lining
    • Tactile Warning
    • Split Finish
    Rose Diameter
    • 3-11/32" (85 mm)
    Strikes
    • 3935 - 1-1/4" x 4-7/8" (32 mm x 124 mm) ASA strike
    • Optional strikes available
    Warranty
    • Lifetime


    Downloads:

    Select Finish
    Select Lever
    From $19.47

    Original: $55.63

    -65%
    Hager - 3510 - Lever - Passage - 2-3/4" - Optional Finish - Optional Trimā€”

    $55.63

    $19.47

    Product Information

    Shipping & Returns

    Description



    Since Hagerā€™s inception in 1849 their Hager brand commercial hinges have always been made right here in America. And itā€™s not just hinges. The bulk of Hagerā€™s traditional door hardware lines are American-made.


    More Details Below:


      Specs

      Certifications
      • BHMA Certified ANSI A156.2, Series 4000 Grade 2
      • ADA Compliant ANSI A117.1 Accessibility Code
      • UL/cUL Listed for all functions up to 3 hours "A" label single doors
      • ANSI A250.13 Severe Windstorm ComponentUL10C Positive Pressure Rated
      Functions
      • Passage (F75)
      Lever Options
      • Archer, August and Withnell
      Backsets
      • 2-3/4" (70mm)
      • 2-3/8" (60mm)
      • 3-3/4" (94mm)
      • 5" (128mm)
      Door Thickness
      • 1-3/8" - 2" (35 mm - 51 mm)
      Exposed Trim
      • Wrought Brass, Bronze, and Stainless Steel
      Latchbolt Type
      • 1/2" (13 mm) throw, stainless steel
      • 1-1/8" x 2-1/4" (29 mm x 57 mm) faceplate for 2-3/4" (70 mm) backset
      • 1" x 2-1/4" (25 mm x 57 mm) faceplate for 2-3/8" (60 mm) backset
      Notes
      • No exposed mounting screws
      • Non-handed
      Options
      • Lead Lining
      • Tactile Warning
      • Split Finish
      Rose Diameter
      • 3-11/32" (85 mm)
      Strikes
      • 3935 - 1-1/4" x 4-7/8" (32 mm x 124 mm) ASA strike
      • Optional strikes available
      Warranty
      • Lifetime
