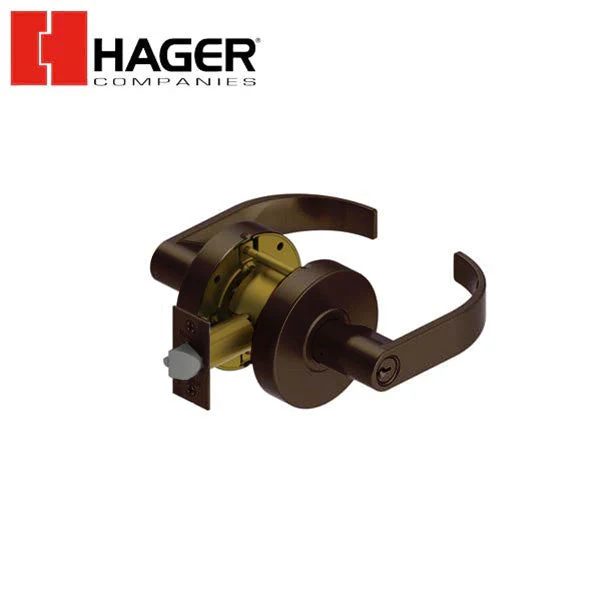

Hager - 2570 - Lever - Classroom - 2-3/4" - Optional Finish - Optional Lever - Optional Keyway

Hager - 2570 - Lever - Classroom - 2-3/4" - Optional Finish - Optional Lever - Optional Keyway



Since Hager’s inception in 1849 their Hager brand commercial hinges have always been made right here in America. And it’s not just hinges. The bulk of Hager’s traditional door hardware lines are American-made.


More Details Below:


    Specs

    Certifications
    • ADA Compliant ANSI A117.1 Accessibility Code
    • UL/cUL Listed for all functions up to 3 hours "A" label single doors
    • UL10C Positive Pressure Rated
    • Meets BHMA A156.2 Grade 2 test standards
    Functions
    • Classroom (F84)
    Lever Options
    • Archer and Withnell
    Cylinders/Cores
    • Keyed Different - standard
    • Cylinder drilled 6 pin, Keyed 5 pin - standard
    • Other Keying options, including 6 pin keyed, available from factory
    • Zero bit cylinders will be 6 pin keyed
    • SFIC uncombinated or combinated, brass 6 pin or 7 pin cores sold separately
    Backsets
    • 2-3/4" (70 mm) standard
    • 2-3/8" (60 mm) optional
    Door Thickness
    • 1-3/8" - 2" (35 mm - 51 mm)
    Exposed Trim
    • Wrought brass, bronze, and stainless steel
    • Lever is zinc based, plated to match BHMA symbols
    Features
    • No exposed mounting screws
    • Non-handed
    Keyway
    • Schlage C - Standard, other keyways optional
    Latchbolt Type
    • 1/2" (13 mm) throw, stainless steel
    • 1-1/8" x 2-1/4" (29 mm x 57 mm) faceplate for 2-3/4" (70 mm) backset
    • 1" x 2-1/4" (25 mm x 57 mm) faceplate for 2-3/8" backset
    • Deadlocking latchbolt prevents manipulation when door is closed
    Notes
    • Standard cylinder or Small Format Interchangeable Core housing available
    Options
    • Interchangeable Cores are sold separately
    • Additional latchbolts and strikes available.
    Rose Diameter
    • 3-11/32" (85 mm)
    Standard Door Prep
    • Standard door prep - 2-1/8" (54 mm) diameter (cross bore)
    • Latch hole - 1" (25 mm) diameter (edge bore)
    Strikes
    • 1-1/4" x 4-7/8" (32 mm x 124 mm) ASA strike
    Warranty
    • 5-year


    Downloads:

    Select Finish
    Select Keyway
    Select Lever
    From $37.37

    Original: $106.76

    -65%
    Hager - 2570 - Lever - Classroom - 2-3/4" - Optional Finish - Optional Lever - Optional Keyway—

    $106.76

    $37.37
