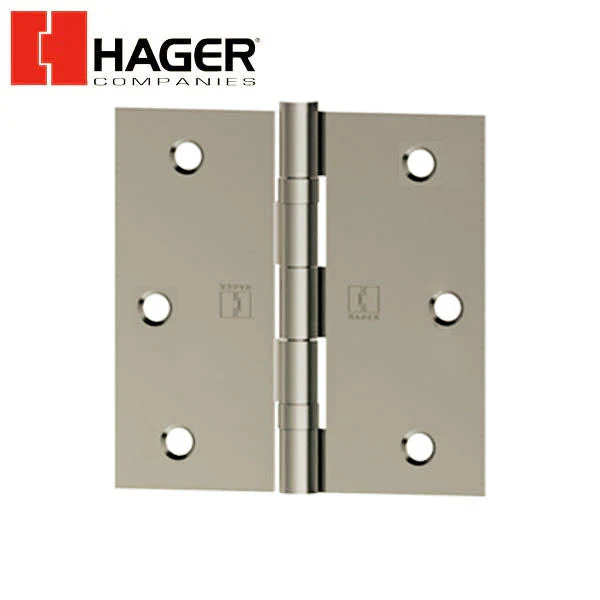

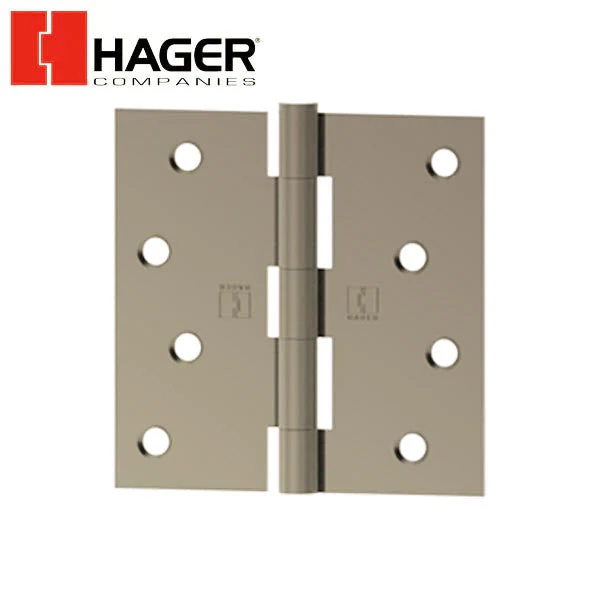

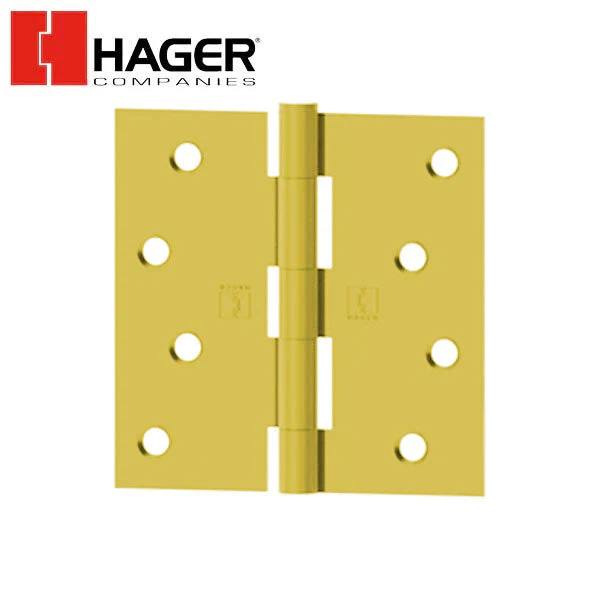

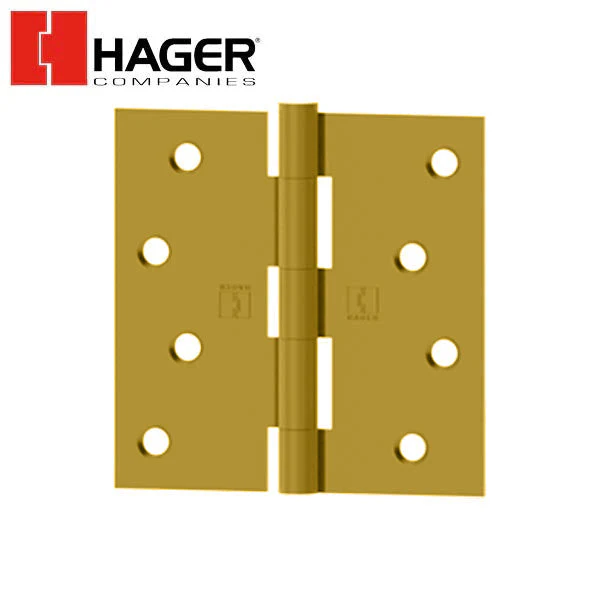

Hager - 1741 - Full Mortise - 5-Knuckle - Plain Bearing Hinges with fasteners - Optional Size - Optional Finish

Hager - 1741 - Full Mortise - 5-Knuckle - Plain Bearing Hinges with fasteners - Optional Size - Optional Finish



Since Hagerā€™s inception in 1849 their Hager brand commercial hinges have always been made right here in America. And itā€™s not just hinges. The bulk of Hagerā€™s traditional door hardware lines are American-made.


More Details Below:


    Specs

    Packaging
    • 1 Hinge w/ Screws
    Notes
    • Hager residential hinges are provided without lubrication. We recommend lubricating the hinges after installation.
    • All residential hinges conform to the "Light Weight" requirements of ANSI A156.1.
    Certifications
    • ANSI A5134
    Fastener Size - Wood
    • 3/4" x 9" FH
    Features
    • Reversible. Square corners. Removable pin.
    Material
    • Steel with steel pin
    Rose Diameter
    • .234"
    Product Description
    • Full Mortise, 5-Knuckle, Plain Bearing Hinges with fasteners
    Size
    • 3-1/2" X 3-1/2", 4" X 4"

    Hinge Size (inches) Hinge Size (mm) Hole Count Gauge of Metal Pin Diameter Screw Size (Wood)
    3-1/2 x 3-1/2 89 x 89 6 .085 .234 3/4 x 9 FH
    4 x 4 102 x 102 8 .085 .234 3/4 x 9 FH


    Downloads:

    Select Finish
    Select Size
    From $0.66

    Original: $1.89

    -65%
    Hager - 1741 - Full Mortise - 5-Knuckle - Plain Bearing Hinges with fasteners - Optional Size - Optional Finishā€”

    $1.89

    $0.66

    Product Information

    Shipping & Returns

    Description



    Since Hagerā€™s inception in 1849 their Hager brand commercial hinges have always been made right here in America. And itā€™s not just hinges. The bulk of Hagerā€™s traditional door hardware lines are American-made.


    More Details Below:


      Specs

      Packaging
      • 1 Hinge w/ Screws
      Notes
      • Hager residential hinges are provided without lubrication. We recommend lubricating the hinges after installation.
      • All residential hinges conform to the "Light Weight" requirements of ANSI A156.1.
      Certifications
      • ANSI A5134
      Fastener Size - Wood
      • 3/4" x 9" FH
      Features
      • Reversible. Square corners. Removable pin.
      Material
      • Steel with steel pin
      Rose Diameter
      • .234"
      Product Description
      • Full Mortise, 5-Knuckle, Plain Bearing Hinges with fasteners
      Size
      • 3-1/2" X 3-1/2", 4" X 4"

      Hinge Size (inches) Hinge Size (mm) Hole Count Gauge of Metal Pin Diameter Screw Size (Wood)
      3-1/2 x 3-1/2 89 x 89 6 .085 .234 3/4 x 9 FH
      4 x 4 102 x 102 8 .085 .234 3/4 x 9 FH
