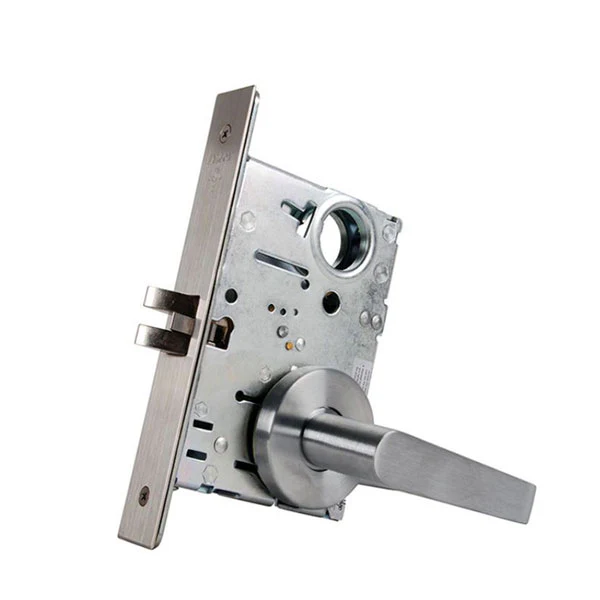

Falcon - MA521B - Cylinder Mortise Latch Bolt - Entrance - Right Handed - SFIC - Dane Lever - GALA Rose Trim - Satin Chrome - Fire Rated - Grade 1



The Falcon MA Series lock delivers high performance at an affordable cost in an office, hospital, education, or other commercial projects. It provides security and is built to stand up to constant use without fail. The MA Series is one of Falcon’s toughest, most dependable locks.

Specifications:

Door thickness	1-3/4" (44mm) - 1-7/8" (47.6mm) standard
Backset	2-3/4" (70mm)
Strike	Brass or stainless steel. Meets ANSI AII5.1 for frame preparation. Strike is non-handed
Latch Bolt	Two-piece stainless steel, mechanical anti-friction latch bolt. 3⁄4" projection
Dead Bolt	1" throw, stainless steel with two 13⁄16" diameter hardened steel, free-turning, saw-resistant roller
Cylinder	SFIC Less Core Prep
Case	Cold formed steel, zinc dichromate plated, .090” thick. Optional lead wrapping available
Handing	Right Handed -  Field Reversible
Keyways	Falcon “G” keyway standard on standard cylinder. “A” keyway standard on I/C cylinder.
Fire Rating	“A” Label 3 Hour Fire Doors Positive Pressure Rated
Certifications	ANSI A156.13, Grade 1, UL10B, UL10C

Downloads:

• Installation Instructions
• Specifications
• Service manual
