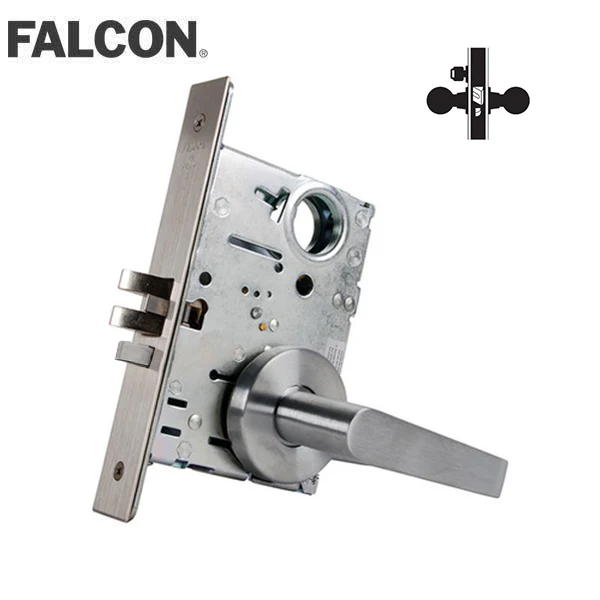

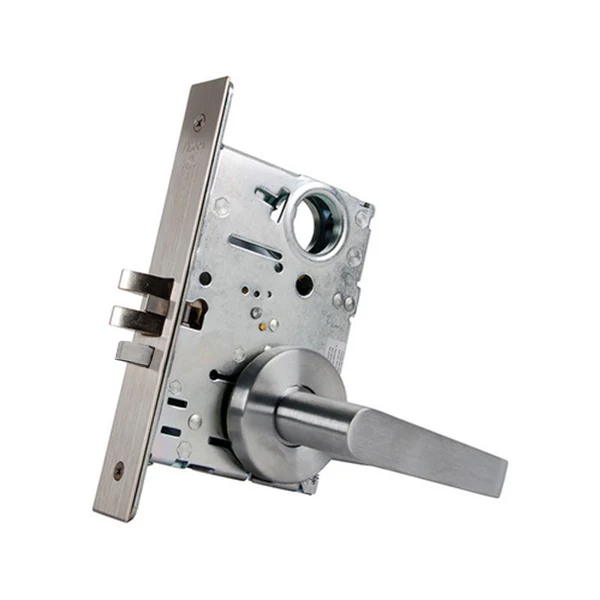

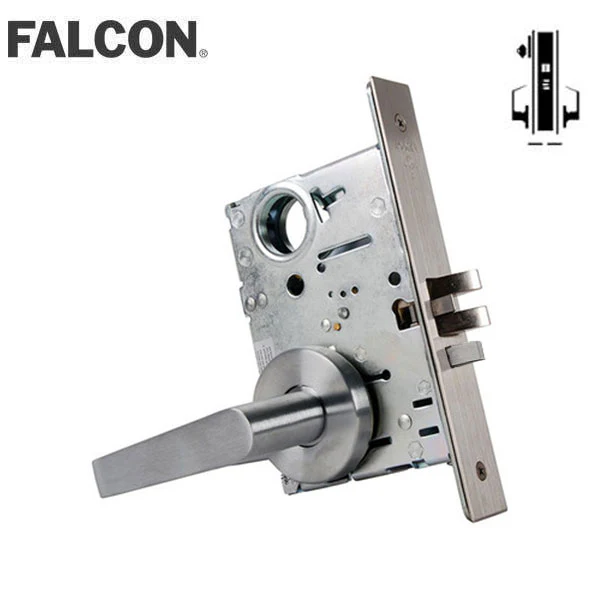

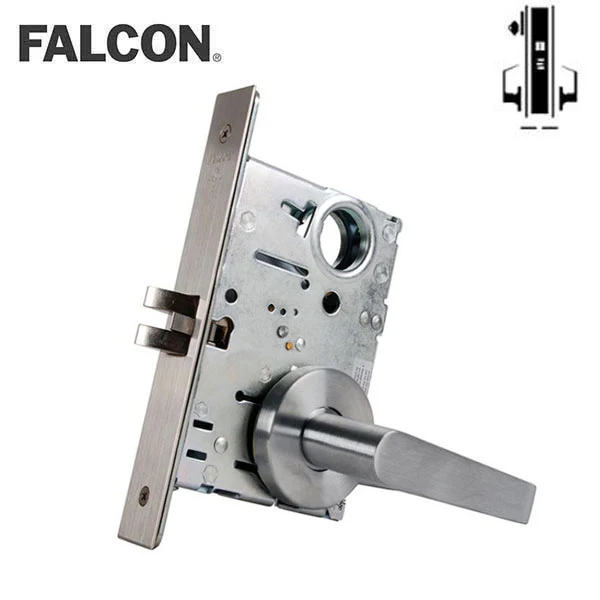

Falcon - MA51B-DG - Cylinder Mortise Lock - Storeroom - SFIC - Dane Lever - 626 - Optional Handing - Satin Chrome - Fire Rated - Grade 1

Falcon: Storeroom Door Mortise Lock, Dane Lever, Gala Rose, Satin Chrome

The Falcon MA Series delivers the heavy-duty performance of a Grade 1 mortise lock at an affordable price for your office, hospital, education, or other commercial project. MA, as one of Falcon's toughest and most dependable locks, is designed to handle high-traffic, high-abuse applications.

Features:

• Two piece stainless steel anti-friction latch bolt
• Cold-formed steel, zinc plated with dichromate for corrosion resistance
• Reversible handing without opening lock chassis case*
• All lever designs meet ADA requirements

Functionality:
Latch bolt operated by key from outside or by operating inside knob/lever.
Outside knob/lever is always inoperative. Auxiliary dead latch. Inside knob/
lever always free for immediate egress.

Specifications:

Lock Function	MA581 ANSI F07 Storeroom Lock
Handing	Left Handed
Levers	Falcon Dane Style
Rose	Falcon Gala Style
Door Thickness	Only accepts door thicknesses of 1 3⁄4" - 1 7⁄8"
Cylinder	SFIC Less Core Prep
Backset	2 3⁄4" only
Rose Dimensions	2 9⁄16"
Latch	Two-piece stainless steel, mechanical anti-friction bolt. 3⁄4" projection
Strike	Brass or stainless steel. Meets ANSI AII5.1 for frame preparation. Strike is non-handed
Finish	626 - 26D - Satin Chrome
Fire Rated	Listed 3-hour fire door, A label
ANSI	F07
Certifications	Certified ANSI/BHMA 156.13, Series 1000, Grade 1
