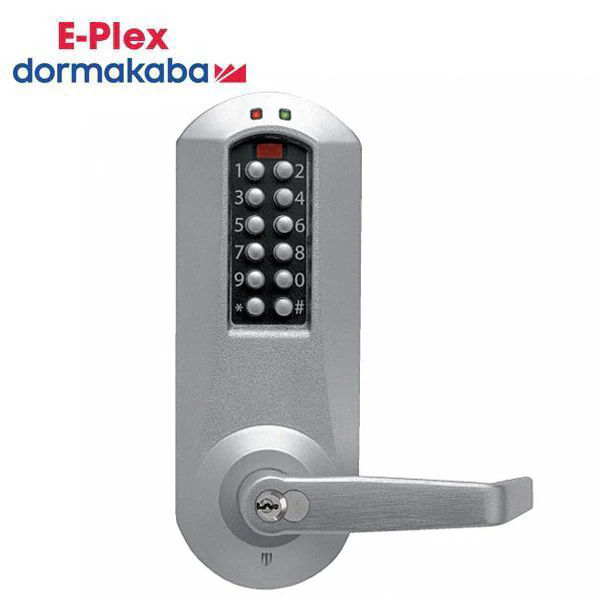

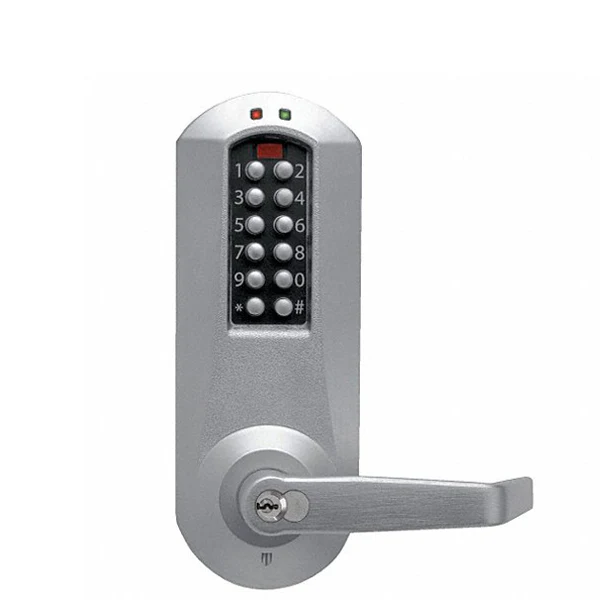

E-Plex - E5010XS - Electronic Pushbutton Exit Trim Lever Lock - Schlage 'C' - Satin Chrome - Grade 1
The E-Plex 5000 Electronic Pushbutton Lock Series provides exterior access by combination, while allowing free egress. This electronic pushbutton lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards. Exit Trim Only. Includes Winston Lever.
Features:
- LectroBolt eliminates wiring to or through the door—no risk of pinched wires
- Multiple Users—100 Codes
- The most recent 9,000 lock events are recorded in memory, including use of the mechanical key override. Software is required to view audit events.
- Locks are programmed via keypad or with optional Microsoft® Excel®-based software— simplifies management of doors and users as facility’s number of users and accesspoints grow
- Non-handed, pre-assembled for left-hand door installations—easily changed in the field
- Key Override: Key-in-Cylinder
- PIN access
- Five different levels (Master, Manager, Access User, Service, Maintenance) allow who has access to specific lock functions
- Code length—Adjustable to accept 4 to 8 digits
- Anti-tamper lockout—Adjustable from 3 to 9 invalid attempts with an adjustable period of 0 to 90 seconds
- Relock time—Adjustable from 2 to 20 seconds
Specifications:
Construction: |
Extra heavy-duty cylindrical lockset, solid cast housings, solid cast levers, cylindrical drive wear tested for extensive use in indoor and outdoor applications |
Locking Device: |
Exit Trim |
Numeric Keypad: |
Vandal resistant, solid metal pushbuttons |
Handing: |
Non-handed |
Finish: |
Satin Chrome 26D (626) |
Key Override: |
K-I-L Kaba Cylinder (Schlage "C" Keyway) included |
Backset: |
Varies by exit device type |
Minimum Stile Recommended: |
5" (127 mm) |
Door Preparation: |
Easily installs on wood or metal doors; four bolt installation; no wiring |
Door Thickness: |
1 3⁄4" (44 mm) to 2 1⁄4" (57 mm); Pre-assembled to accommodate doors 1 5⁄8" (41 mm) to 2" (50 mm) |
Accessibility Standard: |
Americans with Disabilities Act (ADA) |
Certification: |
ANSI/BHMA Grade 1 Certified |
Fire Rating: |
3-hour UL/ULC fire rating for "A" label doors |
Warranty: |
3 years manufacturer warranty |
Exit Device Compatability:
- dormakaba 9300/F9300 Series Rim Exit Device
For other compatibility please visit go.dormakaba.com/Simplex5000
Downloads:
- Installation Guide
- Spec Sheet
Return Policy: We do not accept returns on unsealed products. In order to return a defective item a support ticket is needed. To receive a ticket, please contact DORMA KABA directly at 1-800-849-8324 or visit their support page here. Once you have the ticket contact UHS Hardware for the return.
