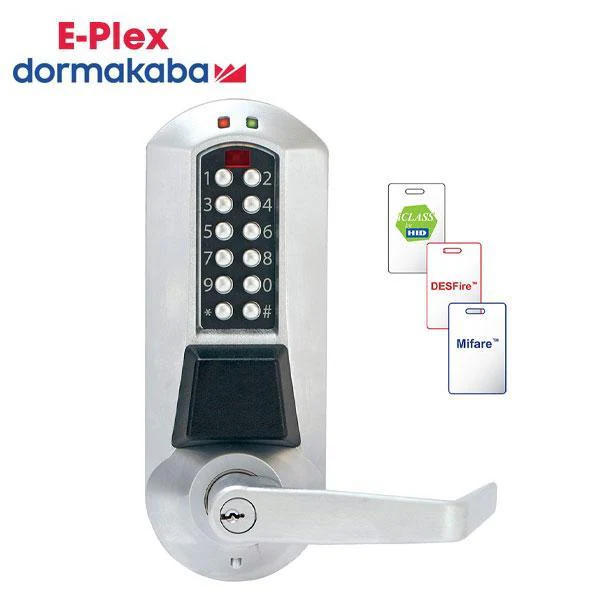

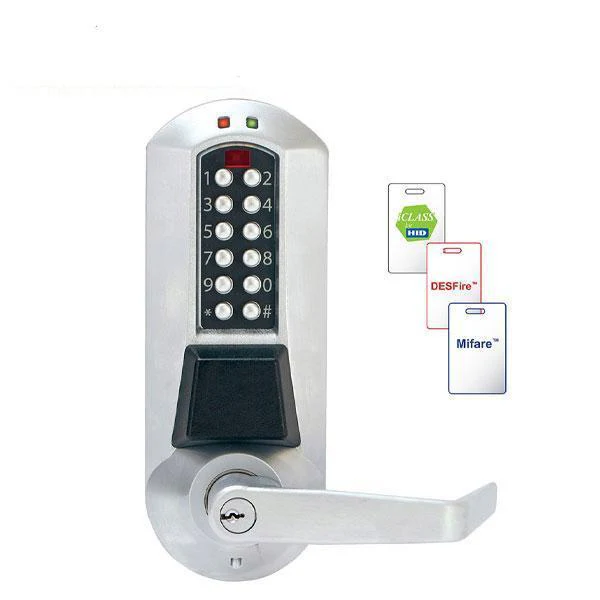

E-Plex - E5631XS - Electronic Pushbutton PROX Cylindrical Lever Set - Schlage 'C' - Winston Lever Set - 2Ā¾" Backset - Satin Chrome - Grade 1
The E-Plex 5600 Electronic Pushbutton Lock Series has up to 3,000 Users, 30,000 audit events, and supports PIN only, Smart card only and PIN + Smart card. Compatible with MIFARE, DESFire, and iCLASS Smart Cards/Credentials (sold separately)
Features:
- E-Plexās LectroBolt eliminates running wires to or through the doorāno risk of damage from pinched wires that can result in costly callbacks
- 3,000 users (per door) with software; 300 in LearnLok mode
- 30,000 Events are tracked by audit trail
- Locks are programmed simply via keypad using LearnLok Feature without any software, or with optional E-Plex Enterprise Software to manage large number of doors and users
- Non-handed, pre-assembled for left-hand door installationsāeasily changed in the field
- Key Override included: Key-in-Lever
- Access schedulesāUp to 16 different access schedules may be programmed into lock.
- Holiday/VacationāUp to 32 different holiday/ vacation blocks may be programmed into lock
- PIN and/or Smart card access
- Five different levels allow who has access to specific lock functions, including: Service Codesāprogrammed for one-time access or "come-and-go" access for 1 to 24 hours
- Code lengthāadjustable to accept 4 to 8 digits
- Anti-tamper lockoutāadjustable from 3 to 9 invalid attempts with an adjustable period of 0 to 90 seconds
- Re-lock timeāadjustable from 2 to 20 seconds
Specifications:
Construction: |
Extra heavy-duty Grade 1 lock; cylindrical lockset, solid cast housings; solid cast zinc levers, cylindrical drive wear tested for extensive use in indoor and outdoor applications |
Locking Device: |
Cylindrical Ā½" (13 mm) throw latch, floating face plate 2Ā¾" (70 mm) backset |
Numeric Keypad: |
Vandal resistant, solid metal pushbuttons |
Handing: |
Non-handed: pre-assembled for left-hand door installationāeasily changed in the field |
Finish: |
Satin Chrome 26D (626) |
Key Override: |
K-I-L Kaba Cylinder (Schlage "C" Keyway) included |
Backset: |
2Ā¾" (70 mm) backset |
Latch: |
Ā½" (13 mm) throw latch |
Minimum Stile Recommended: |
5" (127 mm) |
Door Preparation: |
Easily installs on wood or metal doors; four bolt installation; no wiring |
Door Thickness: |
1ā " (35 mm) to 2Ā¼" (57 mm); pre-assembled to accommodate doors 1ā " (41 mm) to 2" (51 mm); hardware kits included for thin and thick doors |
Accessibility Standard: |
Americans with Disabilities Act (ADA) |
Certification: |
ANSI/BHMA Grade 1 Certified |
Fire Rating: |
3-hour UL/ULC fire rating for "A" label doors |
Warranty: |
3 years manufacturer warranty |
Downloads:
- Installation Guide
- Spec Sheet
Return Policy: We do not accept returns on unsealed products. In order to return a defective item a support ticket is needed. To receive a ticket, please contact DORMA KABA directly at 1-800-849-8324 or visit their support page here. Once you have the ticket contact UHS Hardware for the return.
