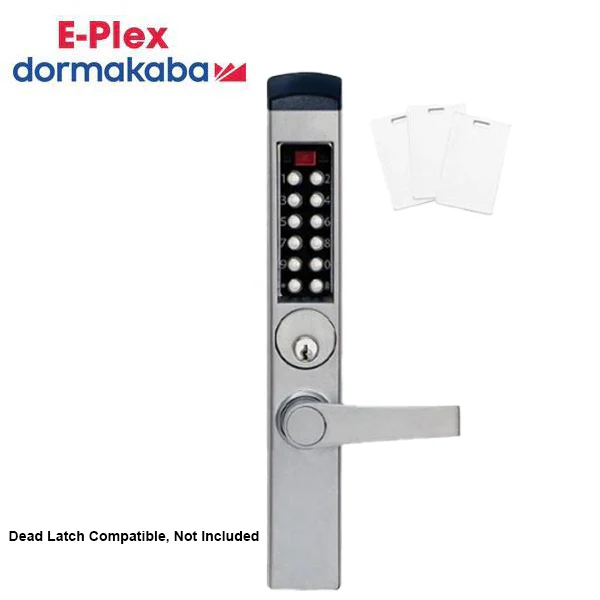

E-Plex - E3765 - Electronic Pushbutton PROX Mortise Narrow-Stile Lever Lock - Schlage 'C' - Deadlatch - Satin Chrome - Grade 1

E-Plex - E3765 - Electronic Pushbutton PROX Mortise Narrow-Stile Lever Lock - Schlage 'C' - Deadlatch - Satin Chrome - Grade 1


The E-Plex 3700 narrow stile electronic pushbutton lock has up to 3,000 users, 30,000 Audit Events, retrofits various Adams Rite mortise locking devices, and supports PIN only, Prox card only and PIN + Prox. Used for narrow stile aluminum glass doorsā€”with dual credential capability, Lock is scheduled to require credentials based on security and convenience requirements. Proximity Mortise Dead Latch For Adams Rite. Dead Latch Not Included

Features:

  • No wire installationā€”eliminates wiring to or through the doorā€”no risk of pinched wires
  • Multiple Usersā€”3,000 Users
  • 30,000 Events with optional software
  • Locks are programmed via keypad with LearnLok feature or via optional ā€”provides easy management of doors and users
  • PIN, card or dual credential access
  • Five different levels (Master, Manager, Access User, Service, Maintenance) allow who has access to specific lock functions
  • Code length: adjustable to accept 4 to 8 digits
  • Anti-tamper lockout: adjustable from 3 to 9 invalid attempts with an adjustable period of 0 to 90 seconds
  • Re-lock time: adjustable from 2 to 20 seconds


Specifications:

Construction:

 Extra heavy-duty lockset, solid cast housing, solid cast lever wear tested for extensive use in indoor and outdoor applications

Locking Device:

 Mortise Dead Latch for Adams Rite 4070, 4510, 4520, 4530, 4710, 4720, 4730, 4900, and 4920AN. Not Included

Numeric Keypad:

 Vandal resistant, solid metal pushbuttons

Handing:

 Non-handed, easily changed in the field

Finish:

 Satin Chrome 26D (626)

Key Override:

 Mortise, Kaba Cylinder (Schlage "C" Keyway) included

Backset:

 31ā„32" (25 mm) minimum

Minimum Stile Recommended:

 2" (51 mm)

Door Preparation:

 Easily installs on narrow stile doors with four mounting screws

Door Thickness:

 1Ā¾" (44 mm)

Accessibility Standard:

Americans with Disabilities Act (ADA)

Certification:

ANSI/BHMA Grade 1 Certified

Warranty:

3 years manufacturer warranty


Downloads:

  • Installation Guide
  • Spec Sheet.

    Return Policy: We do not accept returns on unsealed products. In order to return a defective item a support ticket is needed. To receive a ticket, please contact DORMA KABA directly at 1-800-849-8324 or visit their support page here. Once you have the ticket contact UHS Hardware for the return.
