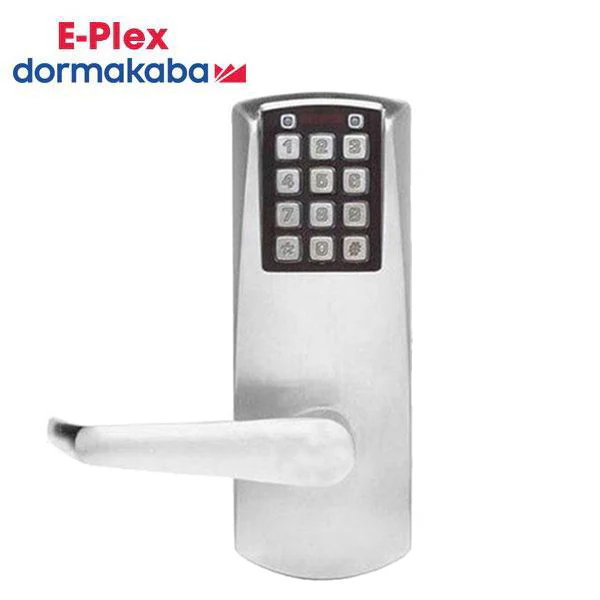

E-Plex - E2031 - Electronic Pushbutton Cylindrical Lever Set - Long Lever Set - 2Ā¾" Backset - Optional Finish - Grade 1
The E-Plex 2000 Series provides exterior access by combination, while allowing free egress. This electronic pushbutton lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards. No Key Override
Features:
- Requires no wiring to or through the doorāeliminates risk of damage from pinched wires that can result in costly callbacks
- Multiple Usersā100 Codes
- Non-handed; pre-assembled for left-hand door installationsāeasily changed in the field
- The most recent 1,000 events are recorded in memory, including the use of mechanical key override. Software is required to view Audit Events.
- Lock is easily programmed via keypad without removing lock from the door or with optional Microsoft Excel-based software.
- PIN access
- Five different authority levels allow who has access to specific lock functions, including: Master, Manager Level, Access User, Service, and Maintenance Level
- User Parameters: Code lengthāadjustable to accept 4 to 8 digits
- Anti-tamper lockoutāadjustable from 3 to 9 invalid attempts with an adjustable period of 0 to 90 seconds
- Re-lock timeāadjustable from 2 to 20 seconds
Specifications:
|
Construction: |
Heavy-duty commercial Grade 1 lockset, solid cast exterior housing, solid cast levers. |
|
Locking Device: |
Cylindrical Ā½" (13 mm) throw latch, floating face plate 2Ā¾" (70 mm) backset |
|
Numeric Keypad: |
Vandal resistant, solid metal pushbuttons |
|
Handing: |
Non-handed, pre-assembled for left-hand door installationāeasily changed in the field |
|
Finish: |

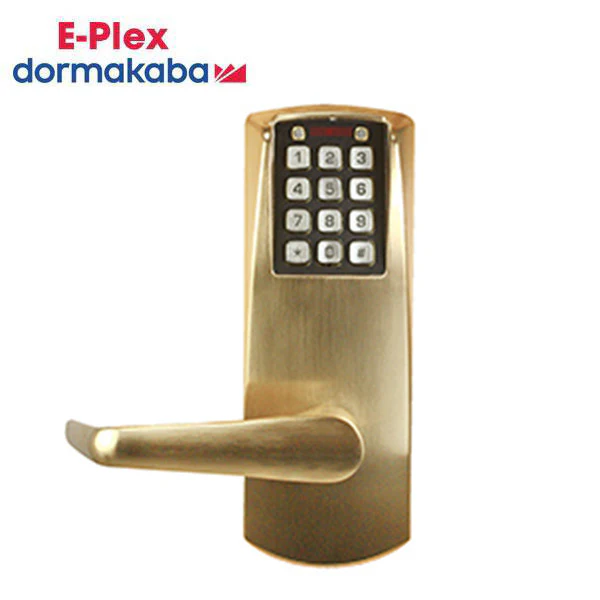

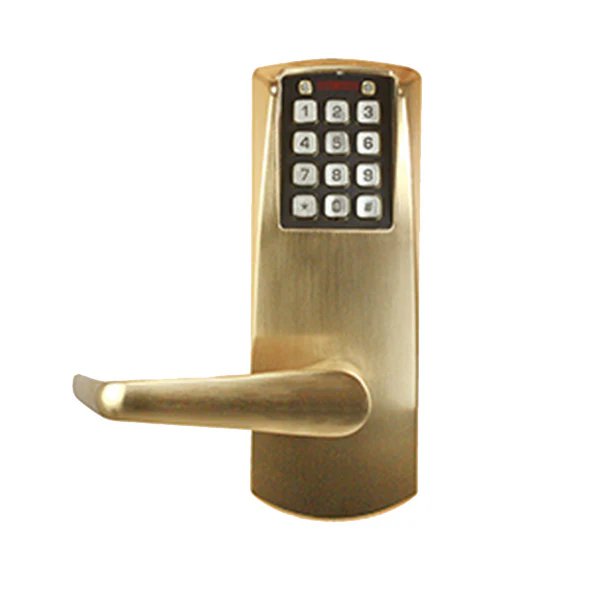

Satin Chrome 26D (626) / Satin Brass US4 (606) |
|
Backset: |
2Ā¾" (70 mm) backset |
|
Latch: |
Ā½" (13 mm) throw latch, floating face plate |
|
Minimum Stile Recommended: |
5" (127 mm) |
|
Strike: |
Cylindrical locks packaged standard with both ANSI A115.3 "T" Strike and A115.2 ASA Strike |
|
Door Preparation: |
ASA 161 (easily installs on door preparation with three additional through bore holes; wood or metal doors) |
|
Door Thickness: |
1ā " (35 mm) to 2Ā½" (64 mm); pre-assembled to accommodate doors 1ā " (41 mm) to 2" (50 mm) |
|
Accessibility Standard: |
Americans with Disabilities Act (ADA) |
|
Certification: |
ANSI/BHMA Grade 1 Certified |
|
Fire Rating: |
3-hour UL/ULC fire rating for "A" label doors |
|
Warranty: |
3 years manufacturer warranty |
Downloads:
