Record - HA9 - Full Feature Door Operator - PUSH Arm - Non Handed - Clear Coat (39" to 51") For Single Doors
ENT-HA9-101

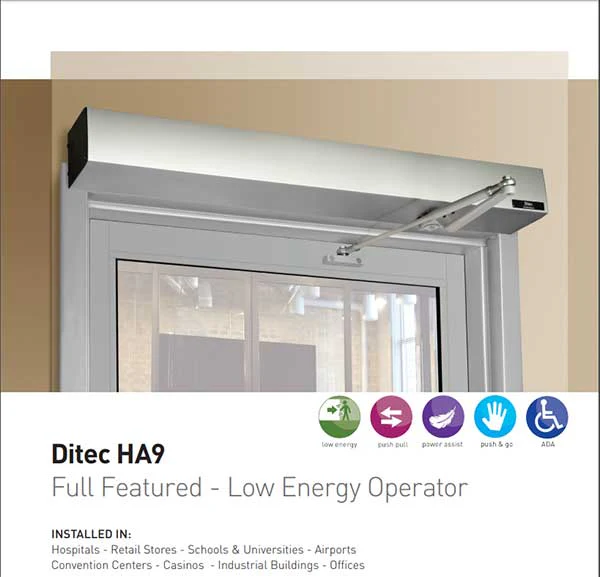

The Ditec HA9 low-energy operator comes loaded with features while offering the same quiet, dependable operation you've come to expect in the low-profile header size you love. The HA9 is perfect for high-traffic locations including schools & universities, hospitals, retail stores, airports, convention centers, casinos, industrial buildings and offices.
Clear Coat Finish
Push Arm - Non Handed
Available in 39", 45" or 51" sizes (Select Below)

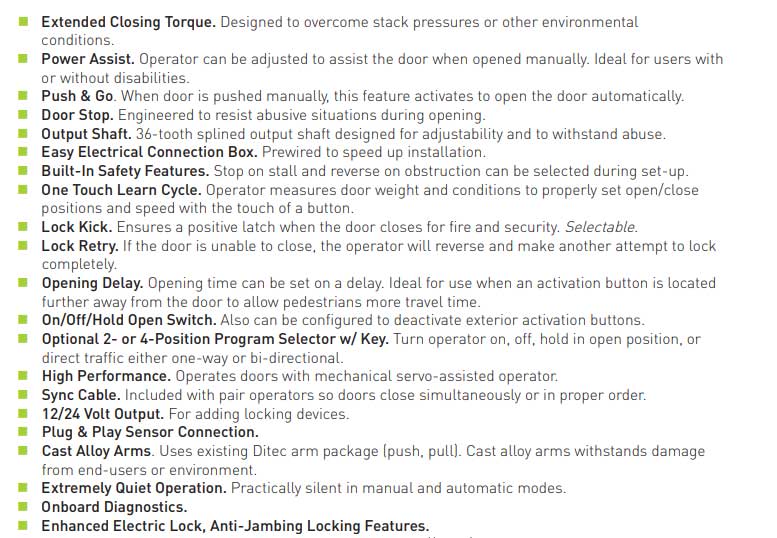

- Non-handed
- Easy manual door operation
- Power assist
- Push & Go
- One-touch Teach Button
- Lock Kick
- Plug-n-play design for fast, trouble-free installation
- Stack Pressure Compensation
- Electric-strike Integration
- Sync cables are included with pair operators to ensure doors close simultaneously or in proper order
- UL325/UL10C certified
- NOTE: This Item Does NOT Qualify for FREE Shipping- Please contact your sales representative to get shipping costs. Call 1-800-878-6604 between Monday and Friday, 9AM-6PM EST
Specifications:
| Application | Single Doors |
| Header Profile Dimensions | 4 1/8" x 5 1/8" |
| Motor Type | Electro-Mechanical |
| Manual Opening/Closing Force | Adjustable 5 to 30 lbs. |
| Push Reveal | Up to 14" |
| Pull Reveal | Up to 2 3/8"" |
| Handing | Push Arm -Non Handed |
| Operating Voltage | 120 VAC |
| Manual Opening/Closing Force | Adjustable 5 to 30 lbs |
| Push or Pull Application | Push |
| Door Width Limit | Up to 48ā (single); 96ā (pair) |
| Microprocessor Control | Yes |
| On/Off/Hold Open Switches | Standard (key switch optional) |
| Auxiliary Power Output | 24 VDC @ 1/2 amp |
| Additional inputs/outputs for extra functions (sensors, electric locks, mode switches, etc) |
Yes |
| Surface Mounting | Yes |
| UL/CUL Listing for UL 325/UL10C | Yes |
| ANSI A156.19 Compliant: | Yes |
Watch Video on the HA9 and It's Easy to Use Features
Watch Complete Installation Video Here
