Record - HA9 - Full Feature Door Operator - PUSH Arm - Non Handed - Antique Bronze (39" to 51") For Single Doors

ENT-HA9-105

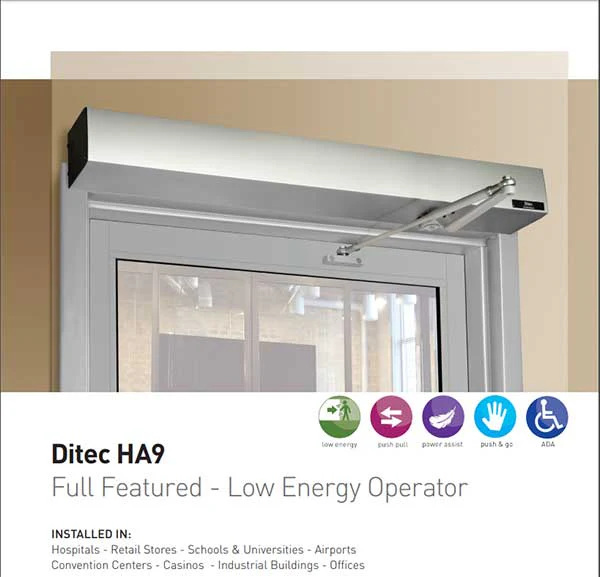

The Ditec HA9 low-energy operator comes loaded with features while offering the same quiet, dependable operation you've come to expect in the low-profile header size you love. The HA9 is perfect for high-traffic locations, including schools & universities, hospitals, retail stores, airports, convention centers, casinos, industrial buildings, and offices.

Antique Bronze Finish

Push Arm - Non Handed
Available in 39", 45", or 51" sizes (Select Below)

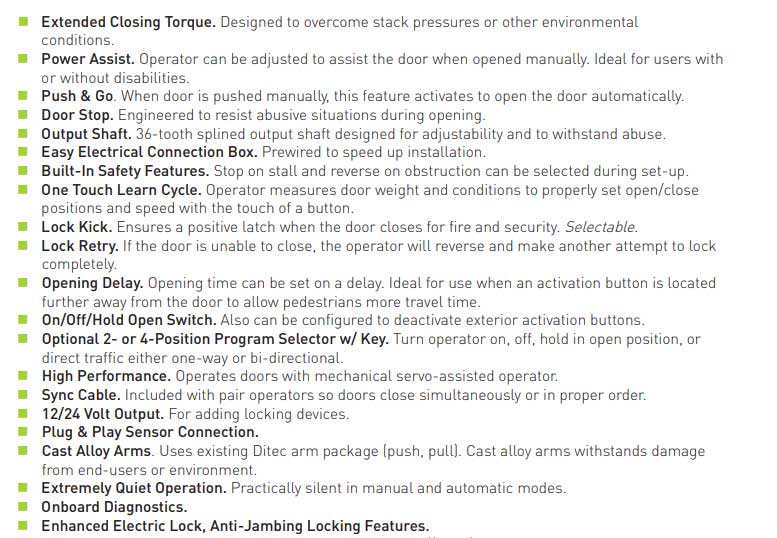

• Non-handed
• Easy manual door operation
• Power assist
• Push & Go
• One-touch Teach Button
• Lock Kick
• Plug-n-play design for fast, trouble-free installation
• Stack Pressure Compensation
• Electric-strike Integration
• Sync cables are included with pair operators to ensure doors close simultaneously or in proper order
• UL325/UL10C certified

Specifications:

Application	Single Doors
Header Profile Dimensions	4 1/8" x 5 1/8"
Motor Type	Electro-Mechanical
Manual Opening/Closing Force	Adjustable 5 to 30 lbs.
Push Reveal	Up to 14"
Pull Reveal	Up to 2 3/8"
Handing	Push Arm -Non Handed
Operating Voltage	120 VAC
Manual Opening/Closing Force	Adjustable 5 to 30 lbs
Push or Pull Application	Push
Door Width Limit	Up to 48” (single); 96” (pair)
Microprocessor Control	Yes
On/Off/Hold Open Switches	Standard (key switch optional)
Auxiliary Power Output	24 VDC @ 1/2 amp
Additional inputs/outputs for extra functions (sensors, electric locks, mode switches, etc)	Yes
Surface Mounting	Yes
UL/CUL Listing for UL 325/UL10C	Yes
ANSI A156.19 Compliant:	Yes



Watch Video on the HA9 and It's Easy to Use Features

Watch Complete Installation Video Here

Downloads:

• Quick Start Guide
