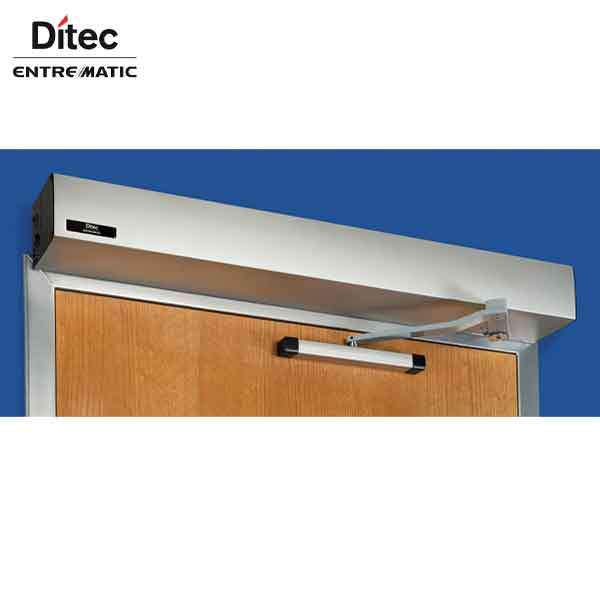

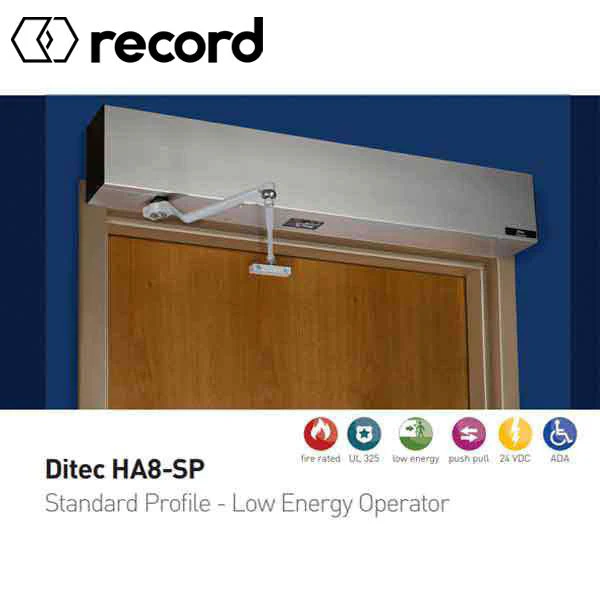

Record - HA8-SP - Standard Profile Swing Door Operator - PULL Arm - Right Hand - Clear Coat (39" to 51") For Single Doors
ENT-W9-104
The Ditec HA8-SP is the standard profile low-energy operator that works in nearly every application, including high-traffic and exterior. The standard profile can be installed in hospitals, retail stores, schools & universities, airports, convention centers, casinos, industrial buildings, and offices.
Pull Arm - Right Hand
Clear CoatĀ Finish
Available in 39", 45", or 51" sizes (Select Below)
- Handed OperatorĀ
- Permanent lubrication means maintenance-freeĀ
- Easy manual door operationĀ
- Ul325 / UL10CĀ certifiedĀ
- Single DoorsĀ
Specifications:Ā
| Application | Single Doors |
| Header Profile Dimensions | 6 1/2" x 4 1/2" |
| Motor | 1/8 HP |
| Gear Grease | High Wear Protection |
| Manual Opening/Closing Force | Adjustable 5 to 30 lbs. |
| Single and Dual Digital Control Box |
Single HA-8 w/Data, 24 VDC, 3 AMP |
| Operating Voltage (Standard) | 115VAC |
| Magnetic Limit Switches | Yes |
| Arm Connection | 1ā Solid Spline Spindle |
| Adjustable Stop | Yes |
| Operator Switch | On-Off-Hold Open |
| Adjustable Spring Tension | Yes |
| Mechanical Clutch | Standard |
| Push or Pull Application | PULL |
| Easy Manual Operation | Yes |
| Surface Mounting | Yes |
| Concealed Mounting | Center Pivot, Hinge, or Offset Pivots |
| Push Reveal | 0" to 14" |
| Pull Reveal | 0" to 4" |
| Electric Strike Output Power | 24 VDC |
| Fire Door Compatibility | UL10C Approved |
| Mechanical Clutch | Standard |
| Circuit Protection | 3 amp Fuse |
| Easy Manual Operation | Yes |
| Total Weight w/ 39" Header | 45 lbs |
| Meets ANSI 156.19 | Yes |
| Fire Door Compatibility | UL10C Approved |
Ā
