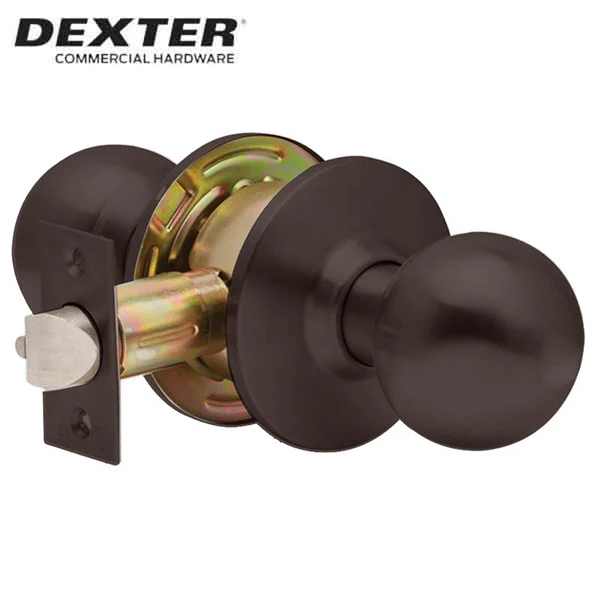

Dexter C2000 - Commercial Lever Set Handle - 2-3/4” Standard Backset - Ball Knob - Oil Rubbed Bronze - Passage - Grade 2

DEX-C2000-PASS-R613

• Commercial Lever Handle Lockset
• Reversible Handing
• Passage Function
• ANSI/BHMA Certified Grade 2



Specifications

Lock Function	F75 - Passage
Handing	Non-Handed
Door Material	Wood or Hollow Metal
Door Thickness	1-3/8 ” to 1-3/4”
Backset	2-3/4"
Latch Type	Dead Latch (Guarded)
Lever	Ball Knob
Lever Function	Clutching
Rose/Escutcheon Size	3" Diameter
Strike	ANSI 1-1/4" x 4-7/8" Curved lip Square corner
Projection	1/2" Bolt Projection
Lock Face Size	2-1/4 In. x 1-1/8 In
Finish	613 - Oil Rubbed Bronze
Material	Brass/Bronze
Certifications	ANSI Grade 2,  ANSI A156.2 Series 4000, UL Listed
Includes	Universal Screw Packs: Screws Included for Wood or Hollow Metal Doors
Manufacturer Warranty	Limited lifetime mechanical warranty





Common Lock Functions

Please Note: Bulk price rates are available! Call us at 1-800-878-6604.



Downloads:

• Catalog
