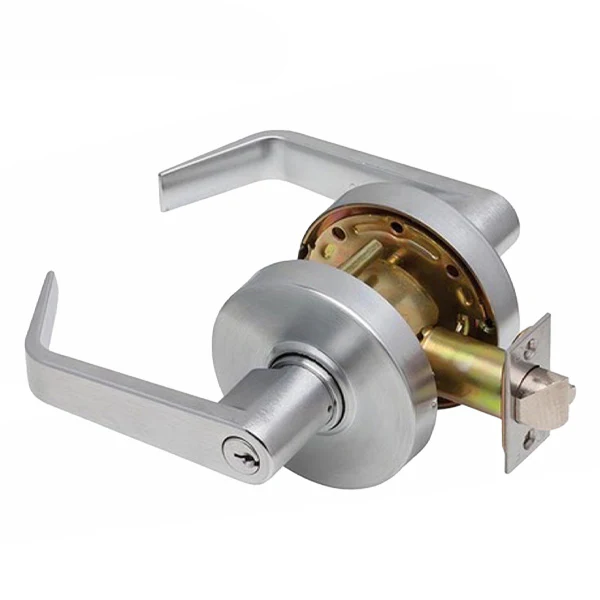

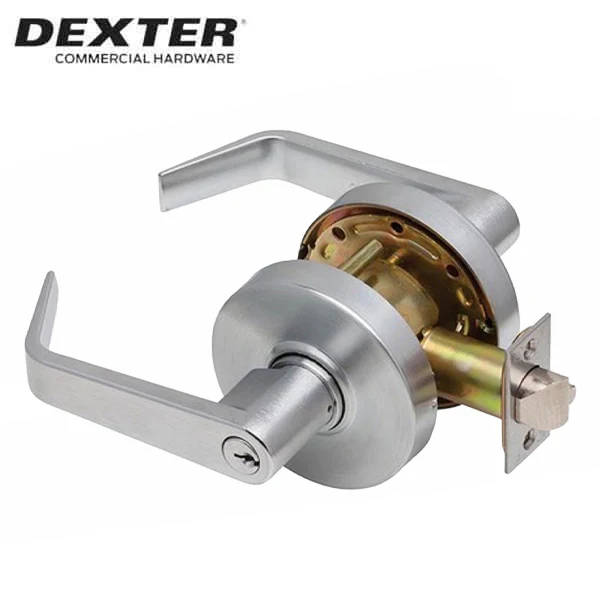

Dexter C1000 - Commercial Lever Set Handle - Cylindrical Lockset - Turn Pushbutton - Keyed Different - 2-3/4” Standard Backset - 2 3/8" Deadlatch - Oil Rubbed Bronze - Entrance - Fire Rated - Grade 1

Dexter Commercial Hardware, provides the locksmith customer with a competitive option for locks, exits, and closers. With hundreds of grade 1 and grade 2 products, Dexter Commercial Hardware is designed for common door applications and is your solution for cost-constrained projects.

Features:

• Complies with ADA accessibility guidelines
• Turn-Pushbutton
• Grade 1
• UL listed 3 hours fire-rated
• C Keyway
• Entry/Office Function
• ASA Strike



Specifications

Lock Function	F109 – Entry/Office
Handing	Non-Handed
Door Material	Wood or Hollow Metal
Door Thickness	1-3/8 - 2"
Cylinder	Conventional Cylinder
Backset	2-3/4"
Deadlatch	2-3/8"
Latch Type	Dead Latch (Guarded)
Lever	R - Regular
Lever Function	Clutching
Keying	Keyed Different
Rose/Escutcheon Size	3-7/16" Diameter
Strike	1-1/4" x 4-7/8" ANSI Curved Lip Strike
Projection	1/2" Bolt Projection
Lock Face Size	1" x 2-1/4"
Finish	613/US10B - Dark Oxidized Satin Bronze Oil Rubbed
Material	Brass/Bronze
Fire-rated	3 Hours
Certifications	Grade 1, UL Listed, ANSI A156.2 Series 4000
Includes	Universal Screw Packs: Screws Included for Wood or Hollow Metal Doors
Manufacturer Warranty	5 Years Limited Mechanical
