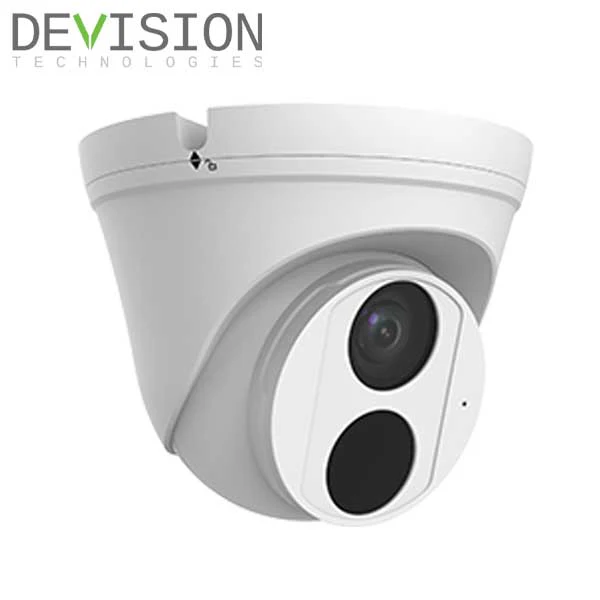

Devision / IP / 2MP / Eyeball Camera / Fixed / 2.8mm Lens / Outdoor / WDR / IP67 / IK10 / 30m IR / DV-B228-DWPSI

• High-quality image with 2MP, 1/2.7"CMOS sensor
• 2MP (1920x1080) at 30fps; 2MP (1280x720) at 30fps; 2MP (720x576) at 30fps; 2MP (640x360) at 30fps; 2MP (704x288) at 30fps; 2MP (352x288) at 30fps;
• Ultra 265, H.265, H.264, MJPEG
• 120dB true WDR technology enables clear image in strong light scene
• Support 9:16 Corridor Mode
• Built-in Mic
• Smart IR, up to 30m (98ft) IR distance
• Supports 128 GB Micro SD card
• IP67 protection
• Customer Service: USA: 800-860-7999 | Canada: 800-914-6008

• Call 1-800-878-6604 for Dealer Prices!

Camera
Sensor	1/2.7", 2.0 megapixel, progressive scan, CMOS
Lens	[email protected]
DORI Distance	Lens: 2.8mm Detect: 42m (137.8ft) Observe: 16.8m (55.12ft) Recognize: 8.4m (27.56ft) Identify: 4.2m (13.78ft)
Angle of View (H)	112.9°
Angle of View (V)	59.1°
Angle of View (O)	121.2°
Adjustment angle	Pan: 3° ~ 360° / Tilt: 0° ~ 68° / Rotate: 3° ~ 360°
Shutter	Auto/Manual, 1 ~ 1/100000s
Minimum Illumination	Color: 0.01Lux ( F2.0, AGC ON) 0Lux with IR
WDR	120dB
Digital noise reduction	2D/3D DNR
Day/Night	IR-cut filter with auto switch (ICR)
S/N	>52 dB
IR Range	Up to 30m (98ft) IR range
Wavelength	850nm
IR On/Off Control	Auto/Manual
Defog	Digital Defog
WDR	120dB
Video
Video Compression	Ultra 265, H.265, H.264, MJPEG
H.264 code profile	Baseline profile, Main Profile, High Profile
Frame Rate	Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate	128 Kbps~6144 kbps
ROI	Up to 8 areas
Privacy Mask	Up to 4 areas
OSD	Up to 4 OSDs
Motion Detection	Up to 4 areas
White Balance	Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction	2D/3D DNR
Smart IR	Support
Flip	Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti clockwise
Dewarping	N/A
HLC	Supported
BLC	Supported
Audio
Audio Compression	G.711
Suppression	Supported
Sampling Rate	8 KHZ
	Storage
Edge Storage	Micro SD, up to 128 GB
Network Storage	ANR,NAS(NFS)
Interface
Network	10/100M Base-TX Ethernet
Built-in Mic	Supported
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL, SNMP
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API
Client	EZStation EZView EZLive
Web Browser	Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Certifications
Certifications	CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15
General
Power	DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 3W
Dimensions (Ø x H)	Φ109 x 81mm (Ø4.3” x 3.2”)
Weight	0.36kg (0.79lb)
Material	Metal + Plastic
Working Environment	-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Strorage Environment	-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection	4KV
Ingress Protection	IP67
Vandal Resistant	IK10
Reset Button	N / A

The Devision 4MP IR Eyeball IP Camera is an effective, professional security camera. The device offers up to 4 megapixels resolution recording and AF automatic focusing and motorized zoom lenses. In addition, the system comes with ANR technology to increase the storage reliability. With the optical glass window, the camera is able to pass higher light transmittance through. Lastly, the camera includes 2D/3D DNR (Digital Noise Reduction) to help remove noise interference from the camera signal.
