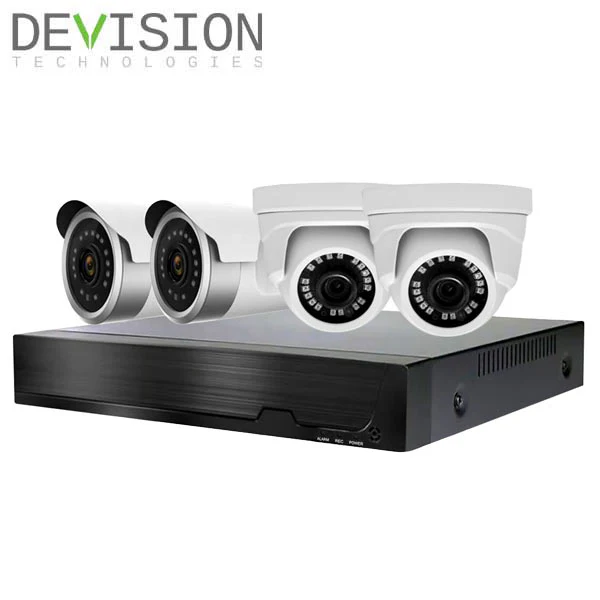

Devision / HDCVI DVR Kit / 4 Channels / 5MN XVR / NO HDD / 2 x 4MP Eyeball Cameras + 2 x 4MP Bullet Cameras w/ 4mm Lens / DVA-XD2504-4440

Devision / HDCVI DVR Kit / 4 Channels / 5MN XVR / NO HDD / 2 x 4MP Eyeball Cameras + 2 x 4MP Bullet Cameras w/ 4mm Lens / DVA-XD2504-4440


The Devision C440-P 4MP Fixed Eyeball HDCVI Camera and Devision A440-P 4MP Fixed Bullet HDCVI Camera are both effective professional security cameras. The devices offer up to 4 megapixels resolution recording with fixed 4mm lenses. With this kit, you get 2 of the Devision C440-P Cameras, 2 of the Devision A440-P Cameras, as well as a Devision XD2504 4 Channel 5MN XVR.

Features

  • Camera Features:
  • 1/3" 4MP CMOS Sensor
  • Supports AHD High Definition Transfer
  • 12PCS IR LEDs, IR Range 25m
  • Resolution: 2688×1520
  • Long Distance, No Delay
  • Adopt 3D-DNR, Better Low Light Quality
  • Supports ICR Auto Switch
  • XVR Features:
  • TVI / AHD / DVR / NVR / CVI 5-in-1 function, multi-mode input
  • Supports HD analog video encoding
  • Supports HD analog + HD network video input
  • Supports pure HD network video input
  • Supports various mobile phone monitoring (iPhone & Android)
  • Supports multiple web browsers (IE / Chrome / Firefox / Safari)
  • Supports VGA,HDMI output at the same time
  • Supports STVI function
  • Supports coaxial audio
  • Supports Multi-Language
  • Customer Service: USA: 800-860-7999 | Canada: 800-914-6008
  • Call 1-800-878-6604 for Dealer Prices!




Eyeball Camera Specifications

    Camera
    Image Sensor 1/3" 4.0MP CMOS Sensor
    Image Resolution 2688x1520
    Effective Pixels 4.0MP
    TV System PAL/NTSC
    Electronic Shutter 1/25s~1/100,000s
    S/N Ratio ≥50dB
    Min. Illumination 0.01Lux@ (F1.2，AGC ON)
    Scanning System Progressive Scan
    Lens
    Lens
    		 Board Lens 4mm/F1.6
    Lens Type Fixed
    Night Vision
    Infrared SMD LED 14µ x 12 PCS
    Infrared Distance 25m
    IR Cut Filter Yes
    IR Status Under 10 Lux by CDS
    IR Power On CDS Auto Control
    Day & Night Auto (ICR) / Color / B&W
    Camera Features
    White Balance Auto
    Gain Control Auto
    Noise Reduction 3D DNR
    WDR Yes
    General
    Housing
    		 Plastic
    Operation Temperature -10°C ~ 50°C Rh 95% Max
    Storage Temperature
    		 -20°C ~ 60°C Rh 95% Max
    Power Source
    		 DC12V±10%, 230mA
    Dimensions
    		 100 x 85 x 85mm
    Weight
    		 ≤190g

    Dimensions (mm)


    Bullet Camera Specifications

    Camera
    Image Sensor 1/3" CMOS Censor
    Image Resolution 2688x1520
    Effective Pixels 4.0MP
    TV System PAL/NTSC
    Electronic Shutter 1/25s ~ 1/100,000s
    S/N Ratio ≥50dB
    Min. Illumination 0.01Lux@（F1.2，AGC ON)
    Scanning System Progressive Scan
    Lens
    Lens
    		 Board Lens 4mm/F1.6
    Lens Type Fixed
    Night Vision
    Infrared SMD LED 14µ x 12 PCS
    Infrared Distance 25m
    IR Cut Filter Yes
    IR Status Under 10 Lux by CDS
    IR Power On CDS Auto Control
    Day & Night Auto (ICR) / Color / B&W
    Camera Features
    White Balance Auto
    Gain Control Auto
    Noise Reduction 3D DNR
    WDR Yes
    General
    Housing
    		 Plastic
    Bracket
    		 Yes
    Operation Temperature -10°C ~ 50°C Rh 95% Max
    Storage Temperature -20°C ~ 60°C Rh 95% Max
    Power Source
    		 DC12V±10%, 230mA
    Dimensions
    		 180 x 75 x 85mm
    Weight
    		 ≤230g

    Dimensions (mm)


    XVR Specifications

      System
      Compression H.265
      O/S
      		 Embedded Linux O/S
      Video and Audio
      Video Input 4CH, BNC
      Preview Ability 4*5MN@20fps（4 in 1）
      4*4MN@25fps（4 in 1）
      4*1080N@25fps（4 in 1
      Coding Ability 4*5MN@12fps（4 in 1）
      4*4MN@17fps（4 in 1）
      4*1080N@15fps（4 in 1
      Decoding Ability 4*5MN@12fps（4 in 1）
      4*4MN@17fps（4 in 1）
      4*1080N@15fps（4 in 1
      Video Output 1CH VGA;1CH HDMI
      Channel Mode Supports any channel mode combination (5MN analog + 1080P digital)
      Audio In & Out 1/1, RCA
      Video Standard PAL/NTSC
      Storage
      SATA 1x SATA Interface
      Capacity Up to 8TB Max.
      File Format H.264, H.265, AVI
      Backup Mode USB
      Playback and Backup
      Video Playback Auto/Timing/ Motion Detection
      Sync Playback 4CH
      Search Mode Point-in-time search, calendar search, event search, channel search
      Network
      Ethernet 10 / 100 Mbps,1 RJ45
      Network Function TCP/IP, DHCP, DDNS, NTP, SMTP
      Interoperability ONVIF Standard
      Smart Phone iPhone, Android
      Hardware
      Network Interface 1x RJ45
      USB Interface 2x USB2.0
      PTZ Interface Supports RS485 PTZ
      Controlling Device Mouse
      Special
      Multi-Screen Display 1/4
      Alarm Method Email Alarm
      Two-Way Talk Support
      Alarm Snapshot Support
      Intelligent Analysis Supports Motion Detection, Video Tampering, Video loss
      General
      Power Supply DC12V /2A
      Consumption ≤ 8 W (without HDD)
      Working Temperature -10°C ~ 60°C
      Working Humidity 10% ~ 90% Humidity
      Dimensions 250 x 223 x 42mm
      Weight 800g

      Layout


      Downloads

      Eyeball Camera Data Sheet
      Bullet Camera Data Sheet
      XVR Data Sheet
      Camera Guide
      XVR Manual
