Devision / HDCVI / 4MP / Eyeball Camera / Fixed / 4mm Lens / Outdoor / WDR / IP66 / 30m IR / Starlight / DVA-C440

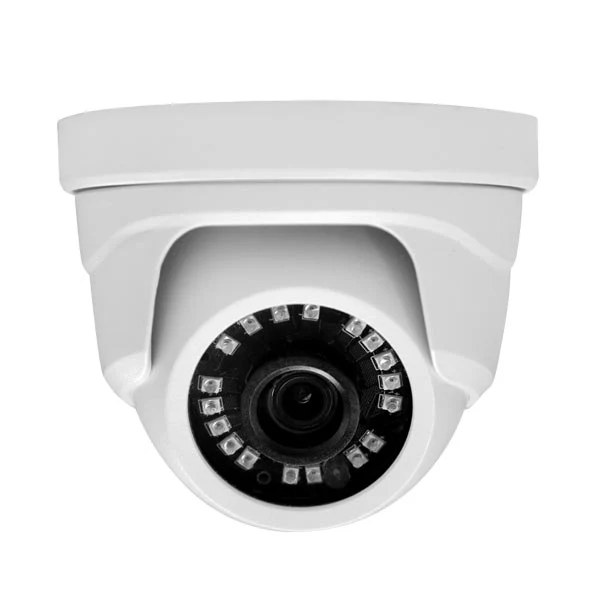

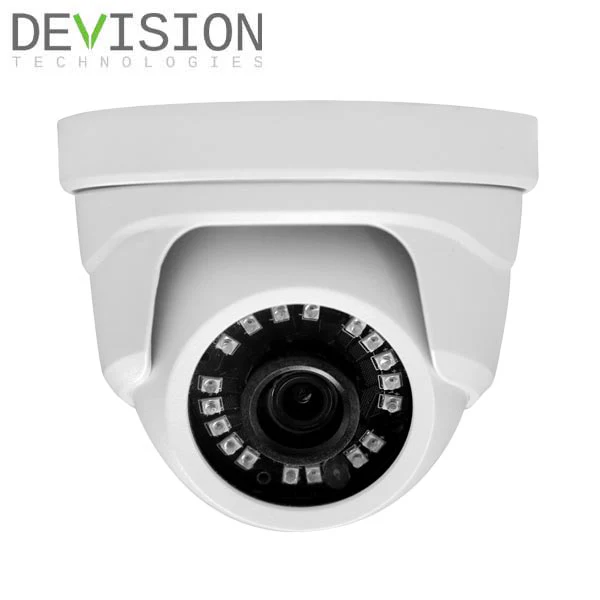

The Devision C440 4MP Fixed Eyeball HDCVI Camera is an effective, professional security camera. The device offers up to 4 megapixels resolution recording with a fixed 4mm lens.

Features

• 1/2.5" CMOS Sensor
• All-in-one coaxial HD output, clear and delicate images
• Illuminance, 0.05Lux@ (F1.6, AGC ON), 0LUX with IR
• Supports OSD menu control, suitable for user-defined settings
• Adaptive Digital Noise Reduction, 2D-DNR
• Supports coaxial control (UTC)
• Video 6KV lightning protection, power supply large capacitor design
• Supports DC 6-15V wide voltage supply
• Ingress Protection IP66
• Wide Dynamic Range
• Customer Service: USA: 800-860-7999 | Canada: 800-914-6008

• Call 1-800-878-6604 for Dealer Prices!



Specifications

Camera
Image Sensor	1/2.5" 4.0MP CMOS Sensor
Image Resolution	2592x1520
Effective Pixels	4.0MP
TV System	PAL/NTSC
Electronic Shutter	Auto
S/N Ratio	≥37dB
Min. Illumination	0.05Lux@ (F1.6, AGC ON), 0LUX with IR
Scanning System	Progressive Scan

Lens
Lens	Board Lens 4mm/F1.6
Lens Type	Fixed

Night Vision
Infrared SMD LED	14µ x 18 PCS
Infrared Distance	30m
IR Cut Filter	Yes
IR Status	Under 0.1 Lux by CDS
IR Power On	CDS Auto Control
Day & Night	Auto (ICR) / Color / B&W

Camera Features
White Balance	Auto
Gain Control	Auto
Noise Reduction	2D DNR
WDR	Yes
UTC	Support

General
Housing	Metal
Operation Temperature	-10°C ~ 50°C Rh 95% Max
Storage Temperature	-20°C ~ 60°C Rh 95% Max
Power Source	DC12V±10%, 230mA
Dimensions	110 x 110 x 90mm
Weight	≤285g

Downloads

Data Sheet
Installation Guide
