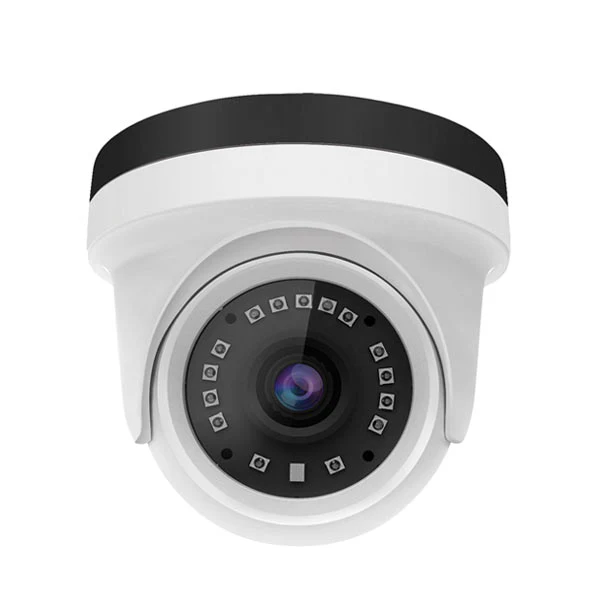

Devision / HDCVI / 2MP / Eyeball Camera / Fixed / 4mm Lens / 20m IR / DVA-C240-P

The Devision C240-P 2MP Fixed Eyeball HDCVI Camera is an effective, professional security camera. The device offers up to 2 megapixels resolution recording with a fixed 4mm lens.

Features

• 1/3" CMOS Sensor
• Full HD resolution 1920 x 1080
• 15Pcs IR LEDs, IR Range 20m
• Supports TVI,AHD, CVI, CVBS output
• UTC Coaxial Control
• Easy installation, HD video transfer over coaxial cable
• Customer Service: USA: 800-860-7999 | Canada: 800-914-6008

• Call 1-800-878-6604 for Dealer Prices!



Specifications

Camera
Image Sensor	1/3" 2.0MP CMOS Sensor
Image Resolution	1920x1080
Effective Pixels	2.0MP
TV System	PAL/NTSC
Electronic Shutter	1/10s~1/100,000s
S/N Ratio	≥50dB
Min. Illumination	0.05Lux@ (F2.0, AGC ON), 0LUX with IR
Scanning System	Progressive Scan

Lens
Lens	Board Lens 4mm/F2.0
FOV	H: 73.9°, V: 40° D: 86°
Lens Type	Fixed

Night Vision
Infrared SMD LED	10µ x 15 PCS
Infrared Distance	20m
IR Cut Filter	Yes
IR Status	Under 10 Lux by CDS
IR Power On	CDS Auto Control
Day & Night	Auto (ICR) / Color / B&W

Camera Features
OSD Menu Language	Support
White Balance	Auto
Gain Control	Auto
UTC	Support

General
Housing	Plastic
Operation Temperature	-20°C ~ 60°C
Working Humidity	10% ~ 90%
Power Source	DC12V±10%, 250mA
Dimensions	100 x 100 x 85mm
Weight	≤190g

Dimensions (mm)
