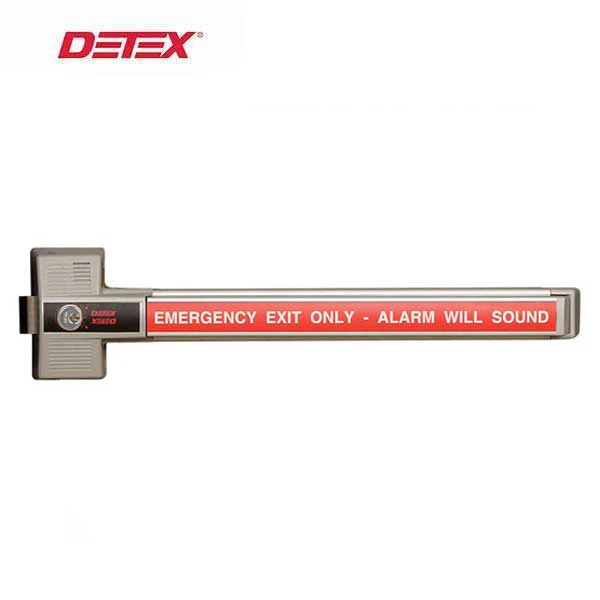

Detex - DTX-ECL-230X - Exit Control Lock - Single Point Alarmed Dead Bolt - Battery Alarmed - 9VDC

The DTX-ECL-230X is a code compliant, battery alarmed, rugged dead bolt, panic device with a photo-luminescent sign providing maximum security and a 100-decibel alarm for secondary exits.

9-volt battery included

Features

• Deadbolt lock - 1" throw with just over 3/4" engagement with the frame
• Saw resistant deadbolt
• Corrosion-resistant alloy lock body
• Accepts 5-pin through 7-pin standard and interchangeable core rim cylinders without using cylinder collar
• Durable photo-luminescent sign absorbs light to then "glow in the dark" when lights are dimmed
• Locking and unlocking (deadbolt) always arms and disarms the alarm
• Non-handed
• Low profile meets International Building Code requirement allowing for 4” maximum projection off face of door
• Resetting the alarm can only be accomplished with a control key



Specifications

Door Types	Wood, Hollow Metal - Double Door Requirements
Minimum Standard Door Width	20"
Screws	Machine & Sheet metal
Battery	9VDC
Application	Providing maxiumum security and a 100 decibel alarm for seconddary exits

Introduction:

Installation:

Downloads

• Catalog Page
• Installation Instructions
• Parts List
