Dahua / Under Vehicle Surveillance System / Portable / 100-240VAC / 2.7-12mm Lens / 20MP / IP68 / VDM5021E-00

DH-MV-VDM5021E-00

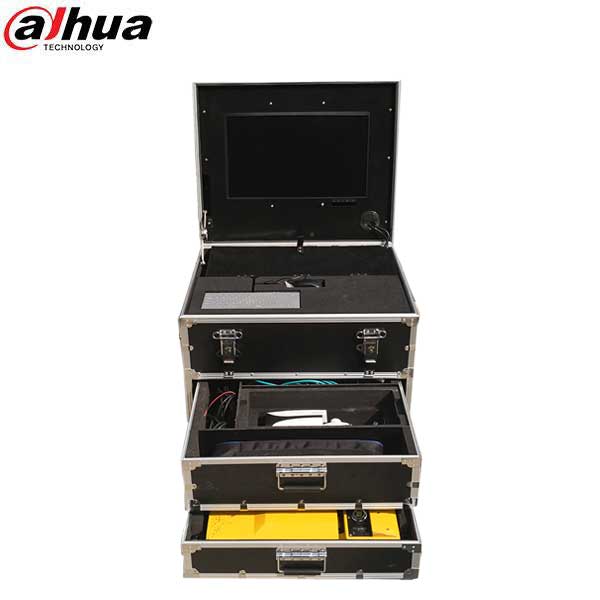

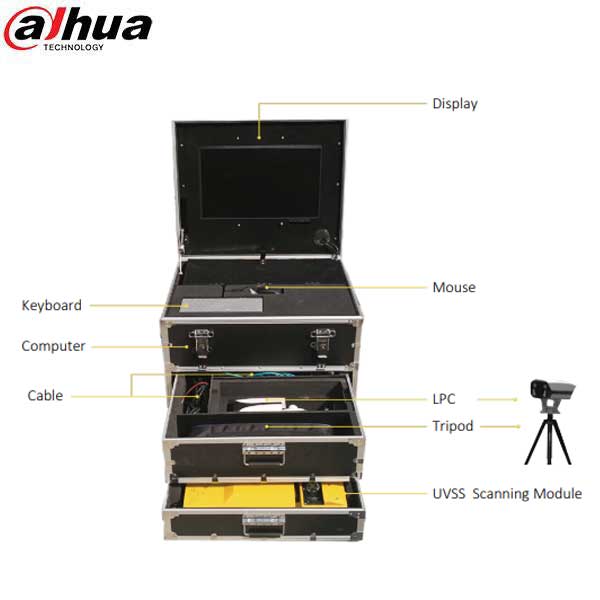

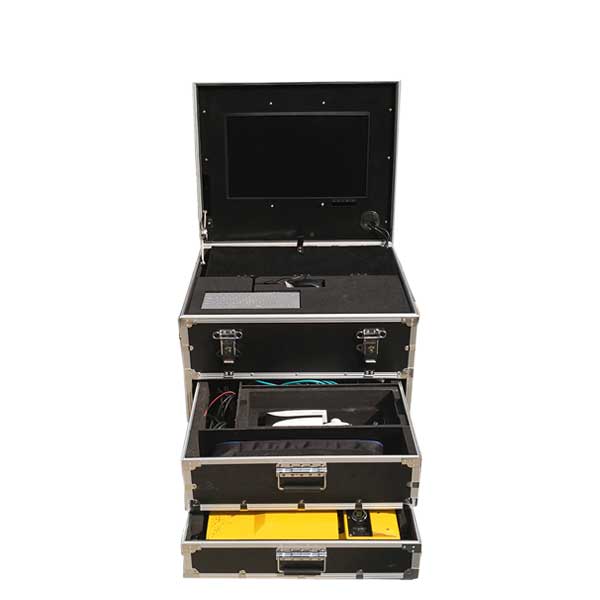

The Dahua Portable Under Vehicle Surveillance System (UVSS) uses machine vision technology to take a high-resolution image of the entire vehicle undercarriage to provide a top security solution. Portable UVSS is convenient for temporary vehicle checkpoints, such as exhibition centers, conference halls, temporary bases, and bridge checkpoints. The Portable UVSS system includes a monitor, keyboard, mouse, computer, LPC camera, scanning module, tripod, and cables

Features

• High Resolution Supporting 2 K Per Line and Maximum Image Resolution up to 20 MP
• Low Image Distortion
• Supports a Maximum Vehicle Speed of 80 kph (50 mph)
• Less Than One (1) Second to Synthesize Whole Vehicle Image
• Large Field of View, up to 170°, Captures the Entire Under Vehicle Image
• Become a registered dealer of Dahua
• Call 1-800-878-6604 for Dealer Prices!




	Camera
Sensor	1/2.8-in. 2 MP STARVIS™ CMOS
Lens	2.7 mm to 12 mm @ F1.6
Effective Pixels	1920(H) x 1080(V)
Angle of View	Horizontal: 101˚ to 36˚ Vertical: 53˚ to 20˚
Scanning System	Progressive
Focus Control	Automatic
Focus Distance Range	3 m to 8 m (9.84 ft to 26.25 ft)
Minimum Illumination	Color: 0. 005 lux at F1.6 0 lux at F1.6 IR on
Frame Rate	1080p at 30 fps
Ethernet	RJ45 (100/1000 Base-T)
	UVSS Controller
Power Input	36 V, 600 W
Power Output	Scan Camera: 36 V LED Modules: 32 V, 2.8 A, 80 W
Trigger	Input: Two (2) isolated channel signal of photoelectric input via loop sensor Output: Scan Camera, LED Modules
Communication	Scan Camera: Gigabit Ethernet (1000 Mbps), RS485 Host PC: Gigabit Ethernet (1000 Mbps)
Certification	CE, FCC, UL
	Computer
Processor	CPU: Intel Duo Core I5-4570, 3.2 GHz System Chipset: Intel H81 BIOS: AMI 64 MB SPI BIOS
Memory	8 GB DDR3L
Storage	2 TB SATA HDD
Graphics	VGA and HDMI, Maximum Resolution: 1920 x 1600, 60 Hz
Ethernet	Two (2) x 10/100/1000 Mbps; One (1) x 10/100 Mbps
Audio	Line IN: Realtek HD Audio Plus, one (1) Line OUT and one (1) MIC IN
I/O	Serial: Two (2) x RS232 USB: Four (4) x USB 3.0 and two (2) USB 2.0
Operating System	Windows Professional 7 SP1, 64-bit, English
Expansion	One (1) PCI Slot
Power Requirements	Input: 100 VAC to 240 VAC, 5 A to 3 A, 50/60 Hz Output Power Rating: 250 W
	System:
Resolution	20 MP, maximum
Image Type	Color Image
Field of View	170°
Imaging Time After Exit Trigger	< 1 s
Maximum Vehicle Speed	80.0 kph (49.70 mph) Recommended: <50.0 kph (31.07 mph)
Compatibility	Chassis Height: ≥ 80.0 mm (0.26 ft) Chassis Width: ≤ 4500.0 mm (14.80 ft)
Load-Bearing	10 tons (22,000 lb)
Case Material	Stainless Steel
Power Supply	100 VAC to 240 VAC
Illumination	250 W Dynamic LED Array
Dimensions	19.29 in. x 15.67 in. x 3.46 in.
Protection	IP68
Certification	CE, FCC, UL
