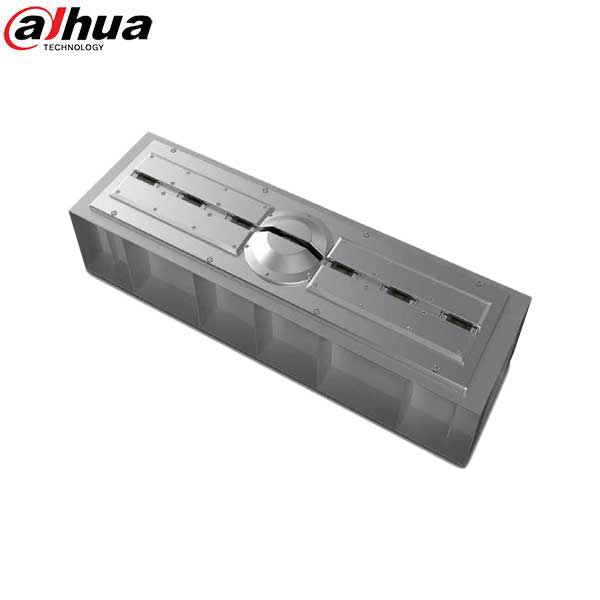

Dahua / Under Vehicle Scan System / Fixed / 100-240VAC / 20MP / IP68 / VDF5020CE-00
DH-MV-VDF5020CE-00
The Dahua Fixed Under Vehicle Scan System (UVSS) uses a line scan camera to take a high-resolution image of the entire vehicle undercarriage to provide a top security solution. The system effectively scans for security risks presented by bombs, biochemicals, and individuals. The UVSS is designed for use at important checkpoints, including airports, government buildings, prisons, banks, and military bases.
Features
- Low Image Distortion
- Supports a Maximum Vehicle Speed of 80 kph (50 mph)
- Less Than One (1) Second to Synthesize Whole Vehicle Image
- Large Field of View, up to 190°, Captures the Entire Under Vehicle Image
- Become a registered dealer of Dahua
- Call 1-800-878-6604 for Dealer Prices!
| System: | |
| Scan Mode | Automatic Trigger from External Source |
| Resolution | 2048 pixels, 18 kHz |
| Image Type | JPEG Color Image |
| Field of View | 180° |
| Maximum Vehicle Speed | 80.0 kph (49.70 mph) Recommended: <50.0 kph (31.07 mph) |
| Height of Vehicle Chassis | 60.0 mm to 2000.0 mm (2.36 in. to 78.74 in.) |
| Width of Vehicle Chassis | ≤ 4500.0 mm (177.17 in.) |
| Installation Area | Approximately 1200.0 mm x 360.0 mm x 290 mm (47.24 in. x 14.17 in. x 11.42 in.) |
| Illumination Module | Six (6) Single Sealed 80 W LEDs LED Light Life Span: ≥ 60,000 Hours |
| Weight | 15.0 kg (33.07 lb) |
| Dimensions | –35° C to +60° C (–31 °F to 140° F) |
| Protection | IP68 |
