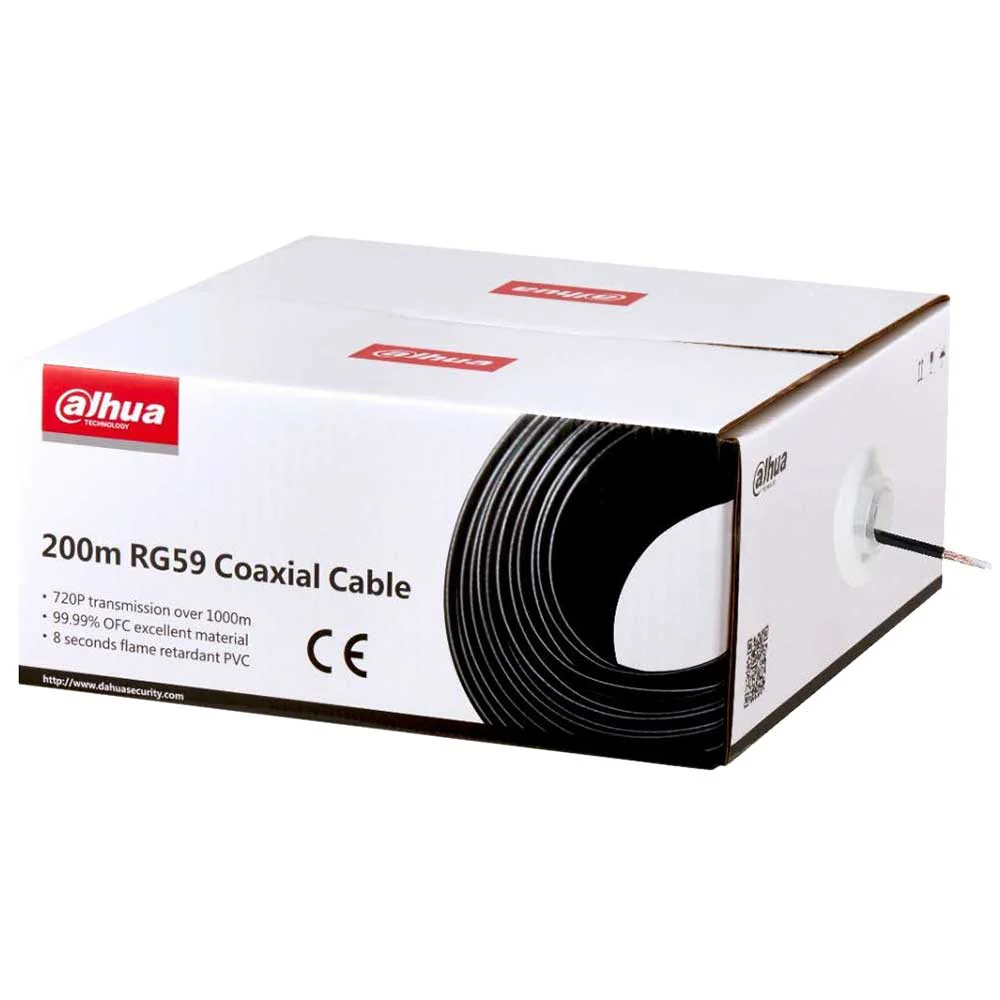

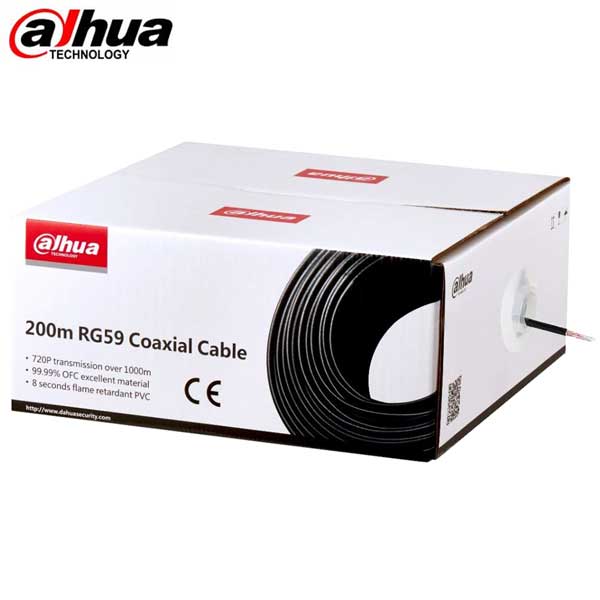

Dahua / RG59 Coaxial Cable / 200m / DH-PFM930-59N

DH-PFM930-59N

• 200 m (656.17 ft) RG59 Coaxial Cable
• Over 1000 m (3280.84 ft) Transmission Distance (at 720p)
• 99.99% Oxygen-free Copper
• Cable Sheath Flame Retardant for 8 Second
• Become a registered dealer of Dahua
• Call 1-800-878-6604 for Dealer Prices!



Technical Specification

Conductor
Material	Oxygen-free Copper (OFC)
Wire Gauge	20 AWG (0.80 mm [0.031 in.])
Insulation
Material	FPE
Diameter	3.70 mm ± 0.05 mm (0.015 in. ± 0.0002 in.)
Tape
Material	Aluminum Foil
Thickness	0.04 mm (0.0016 in.)
Braid
Material	Copper-clad Aluminum
Structure	0.12 mm (0.0047 in.) x 64 (16 x 4)
Jacket
Material	PVC
Minimum Average Thickness	0.90 mm (0.035 in.)
Diameter	6.10 mm ± 0.20 mm (0.24 in. x ± 0.008 in.)
Color	Black
General
Length	200.0 m (656.17 ft)
Mark Spacing	1.0 m (3.28 ft)
Impedance	75 Ω ± 2 Ω
Certification
WIre Standard	EN 50575:2014/A1:2016
Physical Properties
Weight	6.70 kg (14.77 lb)
Packaging Weight	7.20 kg (15.87 lb)
Packaging Dimensions	662.0 mm x 337.0 mm x 467.0 mm (26.06 in. x 13.27 in. x 18.39 in.)
Environmental
Operating Temperature	–20° C to +70° C (–4° F to 158° F)
Storage Temperature	–40° C to +80° C (–40° F to 176° F)
