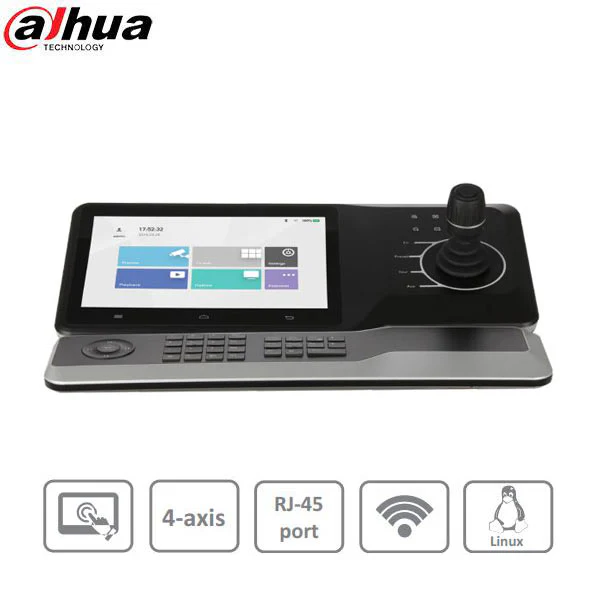

Dahua / HD Network Control Keyboard / Three-Dimensional Joystick / Wi-Fi / 12VDC / DH-NKB5000-F

DH-NKB5000-F

Features

• Control High Speed Domes, DVRs and Network Video Servers
• Three-dimensional Joystick Control for PTZ Functions
• Preset Position, Auto Scan, Auto Pan, Auto Tour and Pattern Control
• Support for Auxiliary Functions
• On-screen Menu
• Supports SmartPSS (via USB connection)
• Become a registered dealer of Dahua
• Call 1-800-878-6604 for Dealer Prices!



Technical Specifications

System
Main Processor	Dual-core Braswell Processor
Operating System	Embedded Linux 4.2.0
Display
Video Output	Four (4) HDMI Channels (extension decoding display)
Video Output Compression	H.265, H.264, MPEG, Non-standard
Decoding Capability	• Four (4) Channels of 12 MP at 20 fps • Four (4) Channels of 8 MP at 30 fps • Six (6) Channels of 5 MP at 30 fps • Eight (8) Channels of 4 MP at 30 fps • Ten (10) Channels of 3 MP at 30 fps • 16 Channels of 2 MP at 30 fps
Decoding Compression	H.265, Smart H.264+, H.264, H.264H, H.264B, MJPEG, MPEG4, SVAC
Display Split	1/4/9/16
Screen	10.1-in. TFT LCD Touch Screen, 1280 x 800
Audio and Alarms
Audio	Input: One (1) Channel, 3.5 mm Jack Output: One (1) Channel, 3.5 Jack Plus a Built-in Speaker Supports Bi-directional Talk
Alarms	Input: Four (4) Channels, High-Low Level Output: Four (4) Total Channels: Three (3) Relays One (1) 12 V, 1 A Output
Interface
Network	Two (2) RJ45 (10/100/1000 Mbps) and WiFi Connectivity
USB	Two (2) USB 3.0 Ports Two (2) USB 2.0 Ports
WiFi	Supports 2.4 GHz Band
RS485	One (1) Port for PTZ Control
RS232	Two (2) Ports for Debugging and Recorder Control
RS422	One (1) Port, Reserved
Electrical
Power Supply	12 VDC, 4 A
Power Consumption	25 W Maximum, 18 W Standby
Construction
Dimensions - Main Keyboard	425.0 mm x 194.0 mm x 59.0 mm (16.73 in. x 7.64 in. x 2.32 in.)
Dimensions - Keypad Extension	421.0 mm x 105.0 mm x 26.0 mm (16.57 in. x 4.13 in. x 1.02 in.)
Dimensions - Joystick Height	100 mm (3.94 in.)
Certificates	EN, FCC CFR
