Dahua / IP / 8MP / Eyeball Camera / Fixed / 2.8mm Lens / Outdoor / WDR / IP67 / 50m IR / ePoE / Built-in Microphone / 5 Year Warranty / DH-N84CG52

DH-N84CG52

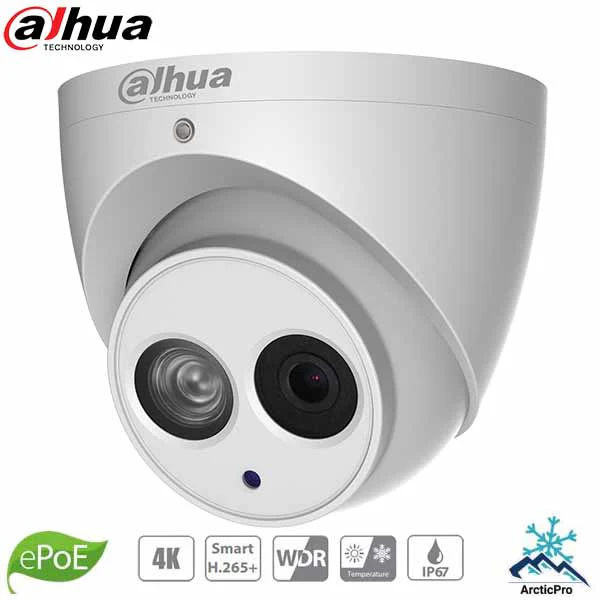

The 8 MP eyeball camera features an advanced 1/2.5-in. Progressive-scan STARVIS imager with a 2.8 mm fixed lens. The camera offers True Wide Dynamic Range, a True Day/Night IR Cut filter, IP67 Ingress Protection and operation in extreme temperatures to deliver superior images in all lighting and environmental conditions. The camera is a component of Dahua's innovative Enhanced Power over Ethernet (ePoE) system that transmits power and data over long distances without the need for repeaters or multiple switches.

• 1/2.5-in. 8 MP Progressive-scan STARVIS CMOS Sensor
• Triple-stream Encoding
• Smart H.265+ and Smart H.264+ Dual Codecs
• 8 MP at 15 fps Maximum Resolution
• 2.8 mm Fixed Lens
• Enhanced Power and Data Transmission Distances with ePoE
• Built-in Microphone
• True WDR (120 dB) and True Day/Night (ICR)
• Maximum IR LED Length 50 m (164 ft) with Smart IR
• ArcticPro Series Camera - Operational down to –40° C (–40° F)
• IP67 Ingress Protection
• Intelligent Video System
• Five-year Warranty (for products sold through an authorized Dahua Dealer)
• Become a registered dealer of Dahua
• Call 1-800-878-6604 for Dealer Prices!



Technical Specifications

Series:	Pro
Body:	Eyeball
Image Sensor:	1/2.5-in. 8 MP Progressive-scan STARVIS CMOS
Resolution:	8 MP, 3840(H) x 2160(V)
Angle of View:	Horizontal: 112° Vertical: 69°
Lens Type:	Fixed
Focal Length:	2.8 mm
Min. Illumination:	Color: 0.06 lux at F1.6 (1/3 s, 30 IRE) Color: 0.3 lux at F1.6 (1/30 s, 30 IRE) 0 lux at F1.6 (IR on)
Day/Night:	Auto (ICR), Color, B/W
Max. IR Range:	Up to 50.0 m (164.04 ft)
WDR:	120dB
Video Compression:	Smart H.265+, H.265, Smart H.264+, H.264
Audio Compression:	G.711a, G.711Mu, AAC, G.726
Frame Rate:	8 MP at 15 fps or 3 MP at 30 fps
Multi-Streaming:	3 Streams
IVS:	Motion, Tripwire, Intrusion, Scene Change, Abandoned/Missing Object
ONVIF:	Yes
Audio In:	1 (Built-in Microphone)
Audio Out:	0
Memory Slot:	Micro SD Slot, maximum 128 GB
Alarm In:	0
Alarm Out:	0
IP Rating:	67
IK Rating:	-
Operating Temp:	–40° C to +60° C (–40° F to +140° F) Less than 95% RH
Power:	12 VDC, 1 A or PoE (IEEE 802.3af, Class 0) < 6 W
ePoE:	Yes

Camera
Image Sensor	1/2.5-in. 8 MP Progressive-scan STARVIS CMOS
Effective Pixels	3840(H) x 2160(V)
RAM/ROM	512 MB/32 MB
Scanning System	Progressive
Electronic Shutter Speed	Auto, Manual, 1/3 s to 1/100,000 s
Minimum Illumination	Color: 0.06 lux at F1.6 (1/3 s, 30 IRE) Color: 0.3 lux at F1.6 (1/30 s, 30 IRE) 0 lux at F1.6 (IR on)
S/N Ratio	More than 50 dB
IR Distance	Distance up to 50 m (164.04 ft)
IR On/Off Control	Auto, Manual
IR LEDs	One (1)
Lens
Lens Type	Fixed
Mount Type	Board-in
Focal Length	2.8 mm
Max Aperture	F1.6
Angle of View	Horizontal: 112° Vertical: 69°
Focus Control	Fixed
Close Focus Distance	0.90 m (2.95 ft)
DORI¹ Distance - Detect	69 m (226 ft)
DORI¹ Distance - Observe	28 m (92 ft)
DORI¹ Distance - Recognize	14 m (46 ft)
DORI¹ Distance - Identify	7 m (23 ft)
Pan/Tilt/Rotation
Range	Pan: 0˚ to 360˚ Tilt: 0˚ to 78˚ Rotation: 0˚ to 360˚
Video
Compression	Smart H.265+, H.265, Smart H.264+, H.264
Streaming Capability	Three (3) Streams
Resolution	8 MP (3840 x 2160), 6 MP (3072 x 2048), 5 MP (2560 x 1920) 3 MP (2048 x 1536), 3 MP (2304 x 1296), 1080p (1920 x 1080), 1.3 MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), VGA (640 x 480), CIF (352 x 240)
Frame Rate - Main Stream	8 MP at 15 fps or 3 MP at 30 fps
Frame Rate - Sub Stream 1	D1 at 15 fps²
Frame Rate - Sub Stream 2	1080p at 3 fps²
Bit Rate Control	CBR/VBR
Bit Rate	H.264: 24K to 10240 Kbps H.265: 14K to 9984 Kbps
Day/Night	Auto (ICR), Color, B/W
BLC Mode	BLC, HLC, True WDR (120 dB)
White Balance	Auto, Natural, Street Lamp, Outdoor, Manual
Gain Control	Auto, Manual
Noise Reduction	3D DNR
Motion Detection	Off, On (4 Zones, Rectangular)
Region of Interest	Off, On (4 Zones)
Smart IR	Support
Digital Zoom	16x
Flip	0°, 90°, 180°, 270°
Mirror	Off, On
Privacy Masking	Off, On (4 Areas, Rectangular)
Audio
Compression	G.711a, G.711Mu, G.726
Network
Ethernet	RJ-45 (10/100 Base-T)
Protocol	HTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP, IGMP, SNMP
Interoperability	ONVIF, PSIA, CGI
Streaming Method	Unicast / Multicast
Maximum User Access	10 Users / 20 Users
Edge Storage	Network Attached Storage (NAS) Local PC for Instant Recording Micro SD Slot, maximum 128 GB
Web Viewer	IE, Chrome, Firefox, Safari
Management Software	SmartPSS, DSS
Mobile Operating System	IOS, Android
Cybersecurity	Video Encryption, Firmware Encryption, Configuration Encryption, Digest, WSSE, Account Lockout, Security Logs, IP/MAC Filtering, Generating and Importing X.509 Certification, Syslog, HTTPS, 802.1x, Trusted Boot, Trusted Execution, Trusted Upgrade
Certifications
Safety	UL60950-1
Electromagnetic Compatibility (EMC)	FCC CFR 47 FCC Part 15 Subpart B
Interface
Audio	Input: Built-in Microphone
Electrical
Power Supply	12 VDC, 1 A or PoE (IEEE 802.3af, Class 0)
Power Consumption	< 6 W
Environmental
Operating Conditions	–40° C to +60° C (–40° F to +140° F) Less than 95% RH
Storage Conditions	–40° C to +60° C (–40° F to +140° F) Less than 95% RH
Ingress Protection	IP67
Lightning Protection	6 KV
Construction
Casing	Metal
Dimensions	ø106.0 mm x 93.70 mm (ø4.17 in. x 3.69 in.)
Net Weight	0.47 kg (1.04 lb)
Gross Weight	0.65 kg (1.43 lb)
Intelligence
IVS triggers an alarm and takes a defined action for the following events:
Standard Features	Tampering with the camera. • Error writing to an onboard Micro SD card. • Error sending or receiving data over the network. • Unauthorized access to the camera.
Premium Features
Motion	An object moves through any part of the scene.
Tripwire	A target crosses a user-defined line.
Intrusion	A target enters or exits a defined perimeter.
Scene Change	A person or object moves the camera to change the scene or covers the camera to obscure the scene.
Abandoned/Missing Object	A target leaves an object in designated area, or a target removes an object from the same designated area.

1. The DORI distance is a measure of the general proximity for a specific classification to help pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specifications and lab test results according to EN 62676-4 , the standard that defines the criteria for the Detect, Observe, Recognize and Identify classifications. 2. Frame rate when the Main Stream is set to maximum resolution. If the Main Stream resolution is set to 1080p or lower, then Sub Stream 1 is capable of D1/1080p at 30 fps and Sub Stream 2 is capable of 1080p at 30 fps.

Downloads

• Data Sheet
• Quick Start Guide
• User Manual



Functions

Enhanced Power over Ethernet (ePoE) Technology
Dahua's innovative ePoE technology offers a plug-and-play solution to transmit power and data over long distances via Ethernet or coaxial cables, reducing installation time and saving money. ePoE technology is a viable, cost-effective solution for extending transmission distances and for converting existing, coax-based analog systems into IP systems. For video security and surveillance installers, ePoE technology saves time and money by reducing overall cabling requirements, allowing for existing coax cable to be used, and minimizing the number of peripheral devices needed. For new installations, ePoE offers the ability to design long-distance applications without the need for additional repeaters.
Enhanced PoE encompasses pure IP systems where a single CAT 5 cable can carry signals up to 800 m (2624 ft), and IP/Analog hybrid systems where the technology leverages existing analog infrastructure to transmit power and data up to 1000 m (3281 ft) over RG59 coaxial cable. Enhanced PoE is compatible with three connection modes operating over the same network simultaneously: traditional IP networks, long-distance ePoE networks and coaxial networks. ePoE technology seamlessly integrates the latest high-definition IP cameras with a coaxial infrastructure using the Ethernet over Coaxial (EoC) protocol to convert between analog and IP power and data transmissions.

True Wide Dynamic Range (WDR)
The camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading wide dynamic range (WDR) technology. For applications with both bright and low lighting conditions that change quickly, True WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.

Intelligent Video System (IVS)
IVS is a built-in video analytic algorithm that delivers intelligent functions to monitor a scene for Tripwire violations, intrusion detection, and abandoned or missing objects. A camera with IVS quickly and accurately responds to monitoring events in a specific area. In addition to scene analytics, the camera offers tamper detection by recognizing a dramatic scene change and generating a warning message to inspect the camera.

ArcticPro
The Dahua ArcticPro Series of extreme-environment cameras combine temperature-tolerant components with a waterproof enclosure to ensure flawless operation in temperatures as low as –40°F (–40°C) without the need for an internal heater. The lack of a heater reduces the camera’s power consumption and saves operating costs. For applications that demand high-resolution video with advanced features in extremely cold environments, the Dahua ArcticPro Series offers a camera to satisfy the most demanding requirements.

Cybersecurity
Dahua network cameras are equipped with a series of key cybersecurity technologies including: security authentication and authorization, access control, trusted protection, encrypted transmission, and encrypted storage. These technologies improve the camera’s ability to prevent malicious access and to protect data.

Environmental
Subjected and certified to rigorous dust and water immersion tests, the IP67 rating makes it suitable for demanding outdoor applications.
