Dahua / IP / 2MP / PTZ Dome Camera / Wi-Fi / Motorized Varifocal / Starlight / 4x Zoom / 2.7-11mm Lens / WDR / IP66 / IK10 / DH-22204UENI-W

DH-22204UENI-W

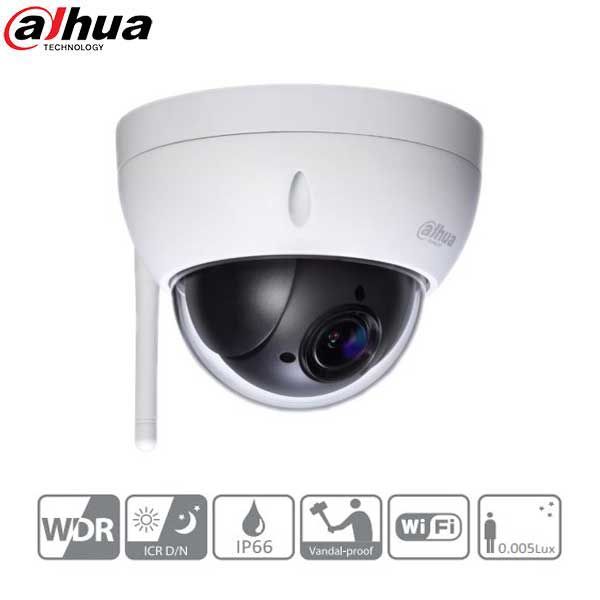

The 2 MP Starlight WiFi Mini PTZ Dome camera features a 1/2.8-in. STARVIS™ CMOS imager with a 4x optical zoom lens, and provides an all-in-one solution for capturing video surveillance for indoor and outdoor applications over a WiFi network. The camera uses the H.265 video compression standard to improve encoding efficiency while preserving high-quality video. The PTZ camera is equipped with quick and accurate pan/tilt/zoom control and True Wide Dynamic Range for applications.

Features

• 1/2.8-in. 2 MP STARVIS™ CMOS Sensor
• 1080p at 30 fps Maximum Resolution
• H.265 and H.264 Dual Codecs
• 2.7 mm to 11 mm, 4x Optical Zoom
• Triple-stream Encoding
• WiFi Support (IEEE 802.11b/g/n)
• Starlight Technology for Ultra-low Light Sensitivity
• True Wide Dynamic Range (120 dB)
• Intelligent Video System (IVS)
• IP66 Ingress Protection and IK10 Vandal Resistance
• Become a registered dealer of Dahua
• Call 1-800-878-6604 for Dealer Prices!



Specifications

Camera
Image Sensor	1/2.8-in. STARVIS™ CMOS Sensor
Effective Pixels	1920(H) x 1080(V), 2 MP
RAM/ROM	256 MB / 128 MB
Scanning System	Progressive
Electronic Shutter Speed	1/1 s to 1/30,000 s
Minimum Illumination	Color: 0.005 lux at F1.6 B/W: 0.0005 lux at F1.6
Lens
Focal Length	2.7 mm to 11 mm
Max. Aperture	F1.6
Angle of View	Horizontal: 30° to 112.5°
Optical Zoom	4x
Focus Control	Auto, Manual
Close Focus Distance	100 mm to 1000 mm (3.94 in. to 39.37 in.)
DORI Distance
Detect	124.10 m (407.15 ft)
Observe	49.70 m (163.06 ft)
Recognize	24.80 m (81.36 ft)
Identify	12.40 m (40.68 ft)
PTZ
Pan/Tilt Range	Pan: 0° to 355° Tilt: 0° to 90°
Manual Control Speed	Pan: 0.1° to 100° /s Tilt: 0.1° to 60° /s
Preset Speed	Pan: 100° /s Tilt: 60° /s
Presets	300
PTZ Mode	8 Tours (up to 32 presets per tour)
Speed Compensation	Proportional Pan/Tilt Speed to Zoom Ratio
Power up Action	Auto restore to previous PTZ and lens status after power failure
Idle Motion	Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period
Protocol	DH-SD
Video
Compression	H.265, H.264, MJPEG (sub-stream only)
Streaming Capability	Three (3) Streams
Resolution	1080p (1920 x 1080), 720p (1280 x 720), D1 (704 x 480), CIF (352 x 240)
Frame Rate	Main Stream: 1080p, 720p, or D1 at 30 fps Sub Stream 1: D1 or CIF at 30 fps Sub Stream 2: 720p, D1, or CIF at 30 fps
Bit Rate Control	CBR, VBR
Bit Rate	H.265/H.264: 448 K to 8192 Kbps MJPEG: 5120 Kbps to 10240 Kbps
Day/Night	Auto (ICR), Color, B/W
Backlight Compensation	BLC, HLC, True WDR (120 dB)
White Balance	Auto, ATW, Indoor, Outdoor, Manual, Sodium Lamp, Natural, and Street Lamp
Gain Control	Auto, Manual, Gain Priority, Shutter Priority, Aperture Priority
Noise Reduction	Ultra DNR (2D/3D)
Advanced Features	Motion Detection, Region of Interest, Defog
Digital Zoom	16x
Flip	180°
Privacy Masking	Up to 24 areas
Network
Ethernet	RJ-45 (10 Base-T/100 Base-TX)
Protocol	IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
WiFi	IEEE 802.11b/g/n 2.4 GHz 150 Mbps
Interoperability	ONVIF Profile S and G, API
Streaming Method	Unicast / Multicast
Maximum User Access	20 users
Edge Storage	NAS (Network Attached Storage) Local PC for instant recording Micro SD Card Slot, maximum 128 GB
Web Viewer	IE
Management Software	Smart PSS, DSS, DMSS
Mobile Operating System	IOS, Android
Cybersecurity	Video Encryption, Firmware Encryption, Configuration Encryption, Digest, WSSE, Account Lockout, Security Logs, IP/MAC Filtering, Generating and Importing X.509 Certification, Syslog, HTTPS, 802.1x, Trusted Boot, Trusted Execution, Trusted Upgrade
Electrical
Power Supply	12 VDC, 1.5 A
Power Consumption	5.5 W
Construction
Casing	Metal
Dimensions	122.80 mm x 89.0 mm (4.83 in. x 3.50 in.)
Certifications	EN, CFR FCC, ANSI, IP66,IK10
Manufacturer's Warranty	5 Years
